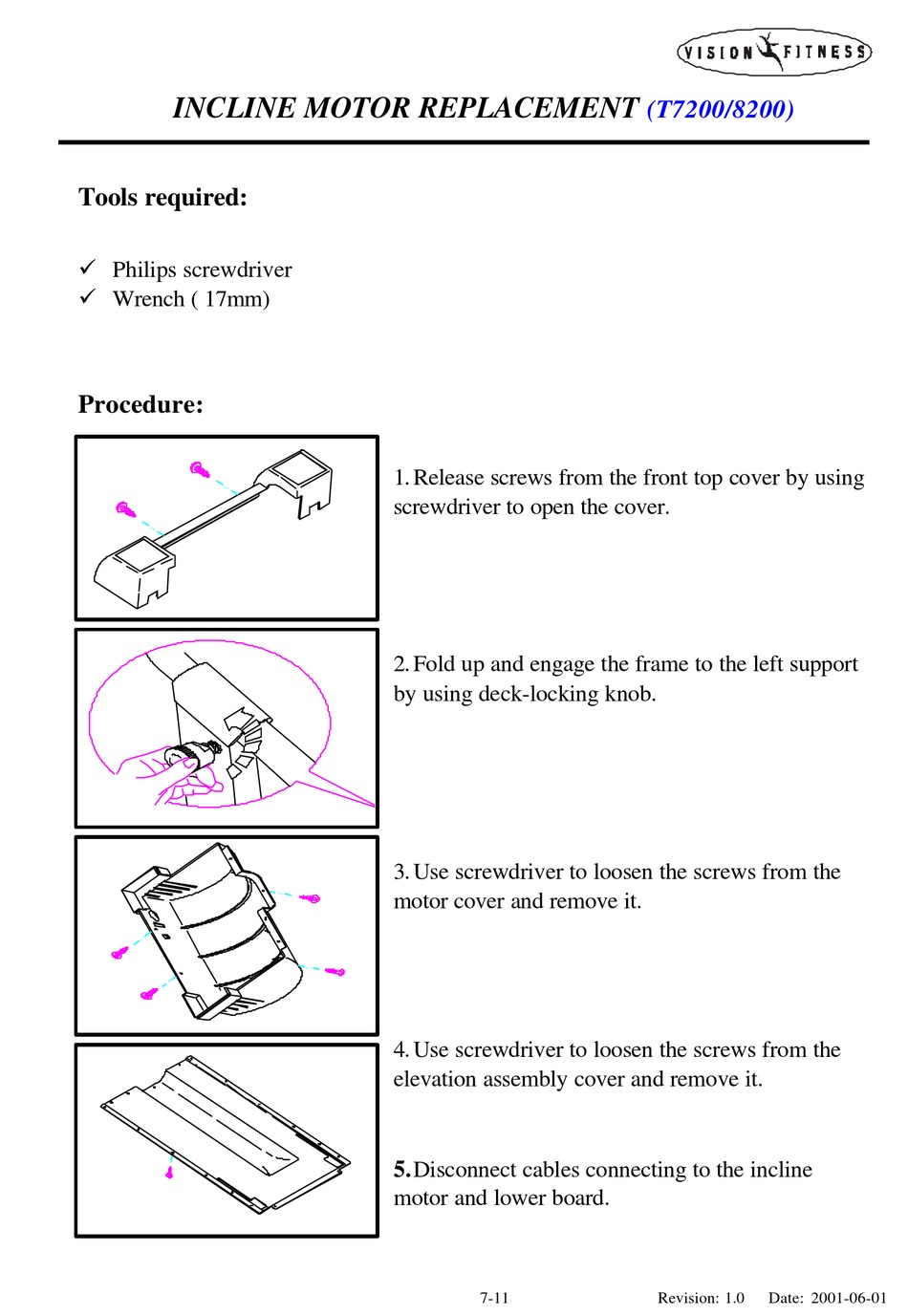

INCLINE MOTOR REPLACEMENT
Tools required:
ü Philips screwdriver
ü Wrench ( 17mm)
Procedure:
1. Release screws from the front top cover by using
screwdriver to open the cover.
2. Fold up and engage the frame to the left support
by using deck-locking knob.
3. Use screwdriver to loosen the screws from the
motor cover and remove it.
4. Use screwdriver to loosen the screws from the
elevation assembly cover and remove it.
5. Disconnect cables connecting to the incline
motor and lower board.
7-11
(T7200/8200)
Revision: 1.0
Date: 2001-06-01
