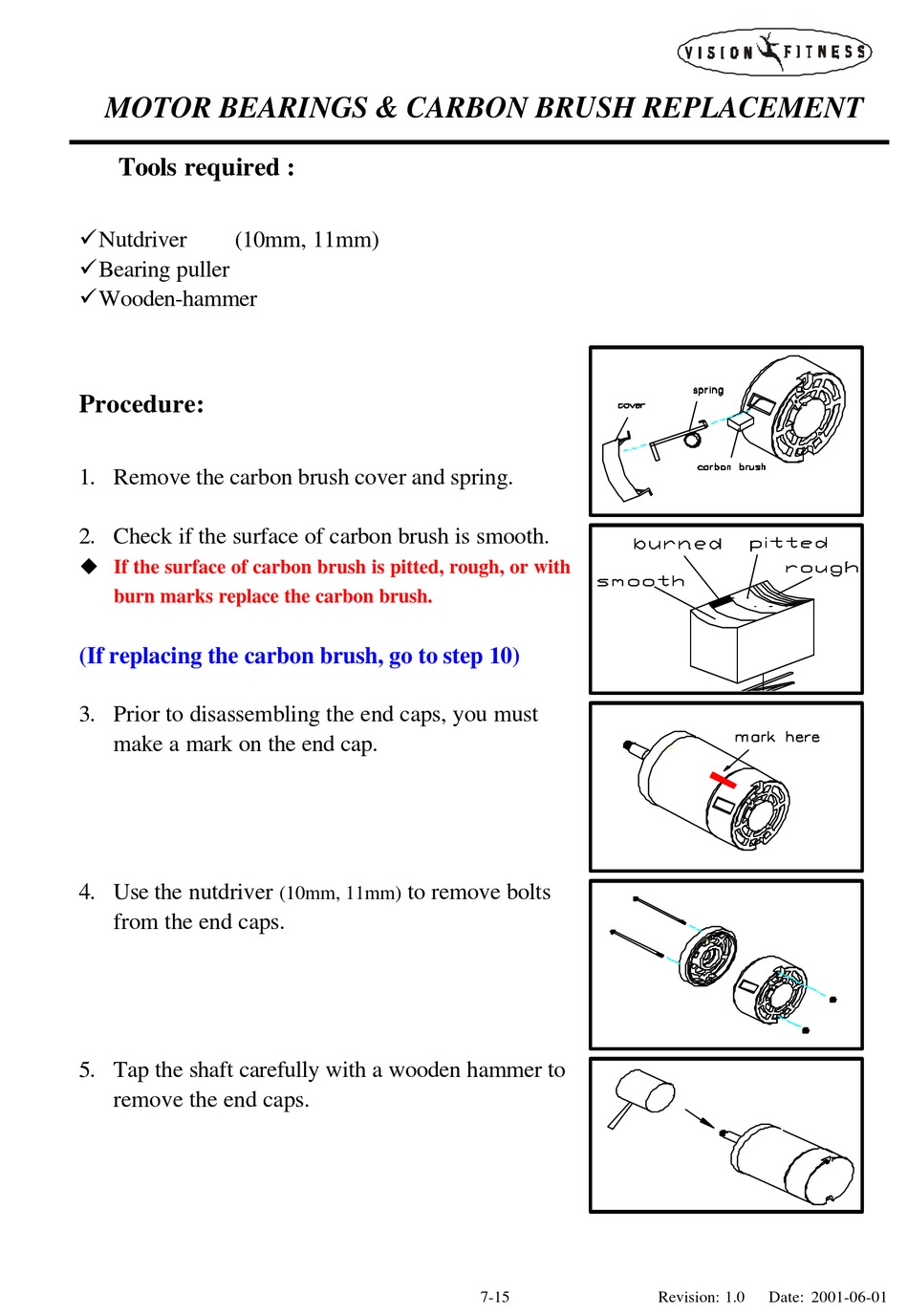

MOTOR BEARINGS & CARBON BRUSH REPLACEMENT
Tools required :
ü Nutdriver
(10mm, 11mm)
ü Bearing puller
ü Wooden-hammer
Procedure:
1. Remove the carbon brush cover and spring.
2. Check if the surface of carbon brush is smooth.
u
If the surface of carbon brush is pitted, rough, or with
burn marks replace the carbon brush.
(If replacing the carbon brush, go to step 10)
3. Prior to disassembling the end caps, you must
make a mark on the end cap.
4. Use the nutdriver
from the end caps.
5. Tap the shaft carefully with a wooden hammer to
remove the end caps.
to remove bolts
(10mm, 11mm)
