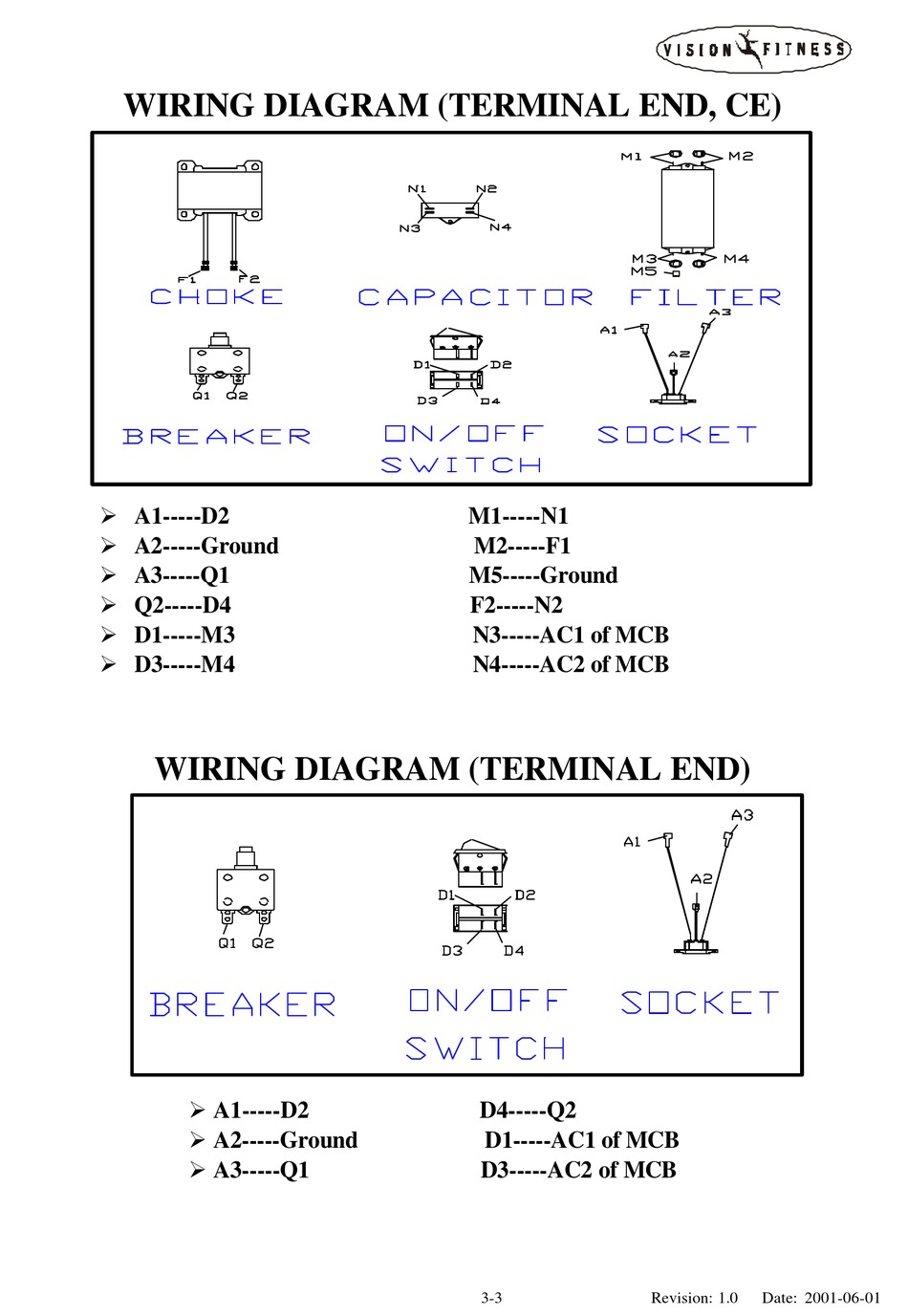

WIRING DIAGRAM (TERMINAL END, CE)
Ø A1-----D2
Ø A2-----Ground
Ø A3-----Q1
Ø Q2-----D4
Ø D1-----M3
Ø D3-----M4
WIRING DIAGRAM (TERMINAL END)
Ø A1-----D2
Ø A2-----Ground
Ø A3-----Q1
M1-----N1
M2-----F1
M5-----Ground
F2-----N2
N3-----AC1 of MCB
N4-----AC2 of MCB
D4-----Q2
D1-----AC1 of MCB
D3-----AC2 of MCB
3-3
Revision: 1.0
Date: 2001-06-01
