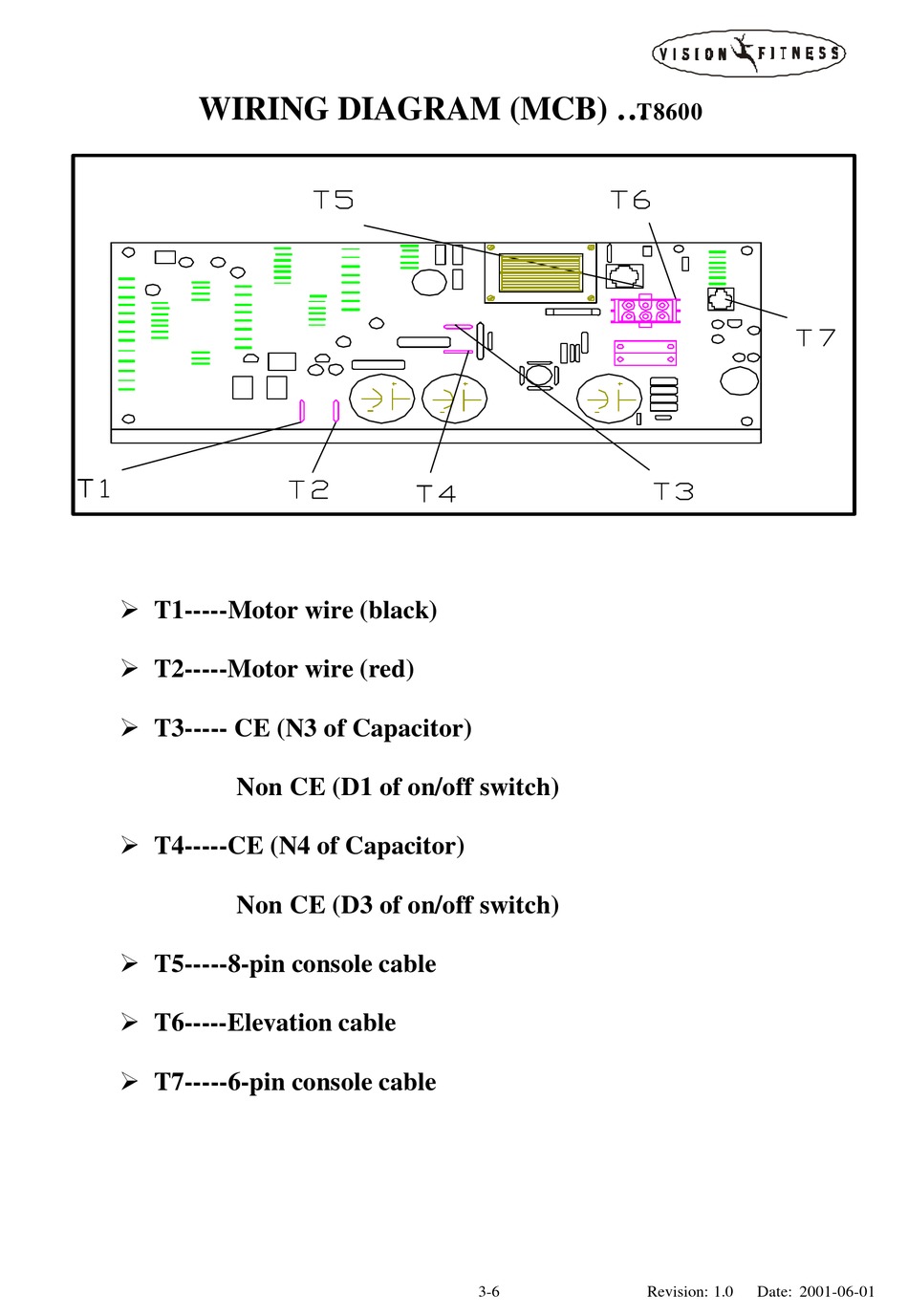

WIRING DIAGRAM (MCB) ...
Ø T1-----Motor wire (black)
Ø T2-----Motor wire (red)
Ø T3----- CE (N3 of Capacitor)
Non CE (D1 of on/off switch)
Ø T4-----CE (N4 of Capacitor)
Non CE (D3 of on/off switch)
Ø T5-----8-pin console cable
Ø T6-----Elevation cable
Ø T7-----6-pin console cable
T8600
3-6
Revision: 1.0
Date: 2001-06-01
