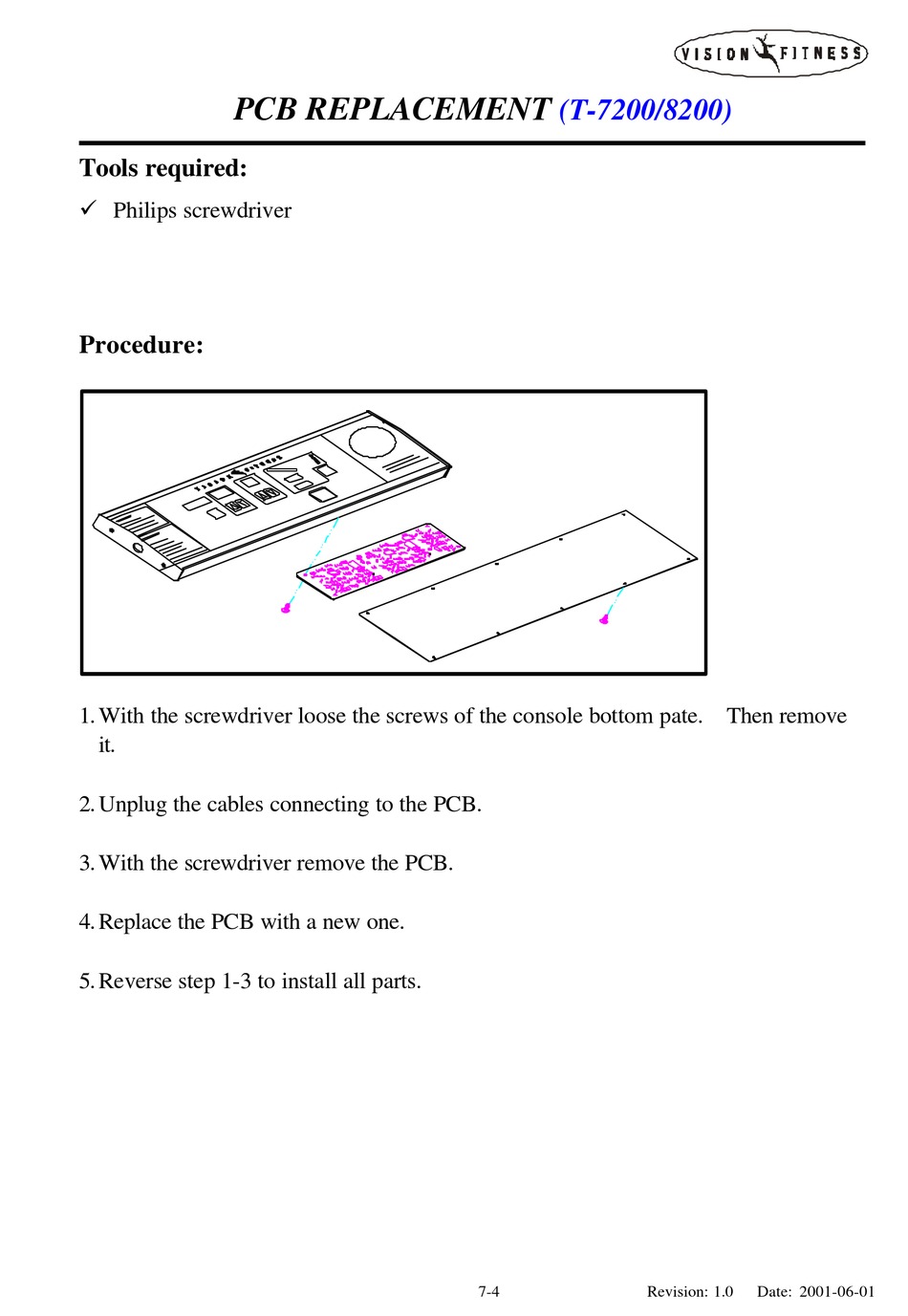

PCB REPLACEMENT
(T-7200/8200)
Tools required:
ü Philips screwdriver
Procedure:
1. With the screwdriver loose the screws of the console bottom pate. Then remove
it.
2. Unplug the cables connecting to the PCB.
3. With the screwdriver remove the PCB.
4. Replace the PCB with a new one.
5. Reverse step 1-3 to install all parts.
7-4
Revision: 1.0
Date: 2001-06-01
