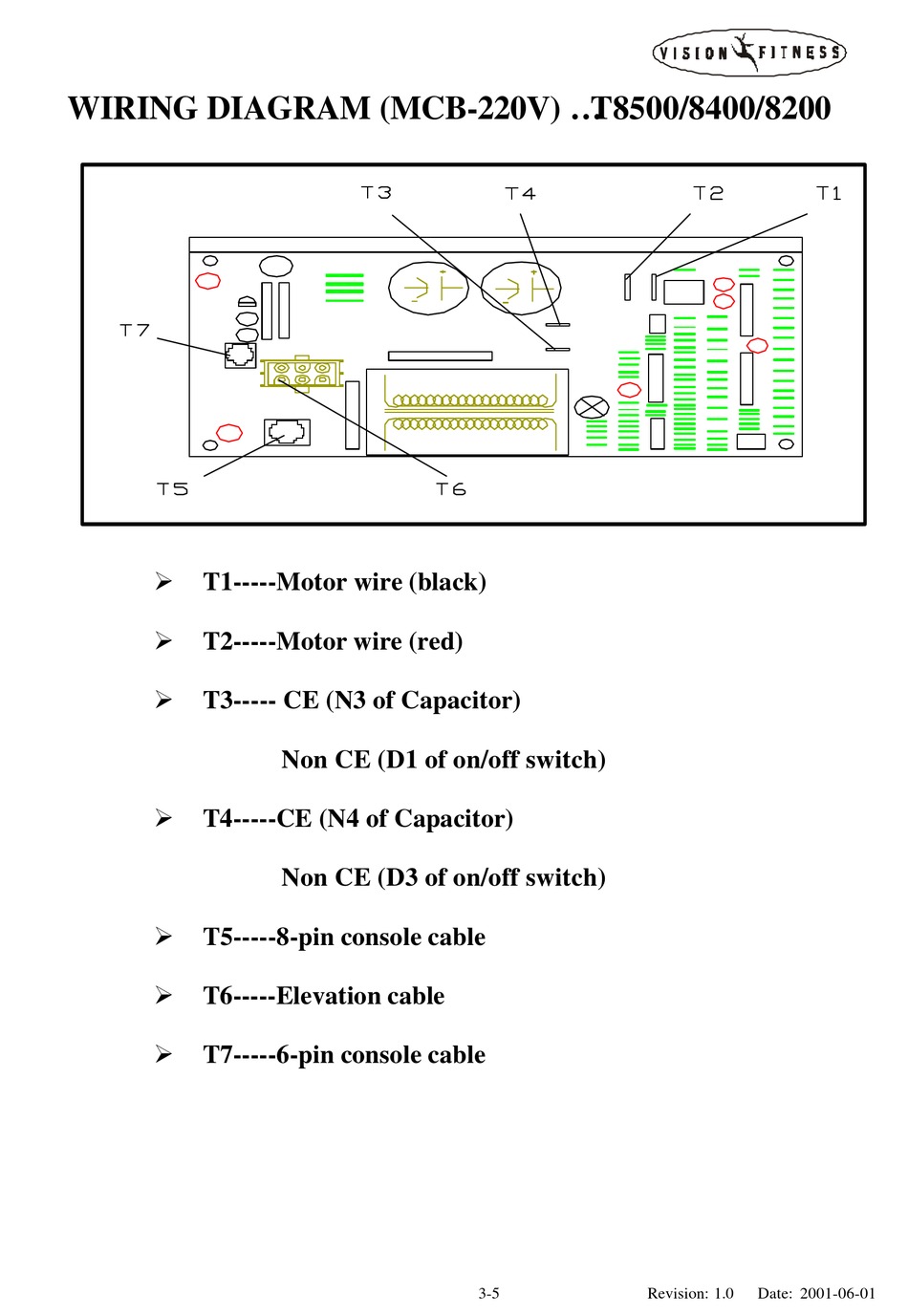

WIRING DIAGRAM (MCB-220V) ... T8500/8400/8200
Ø
T1-----Motor wire (black)
Ø
T2-----Motor wire (red)
Ø
T3----- CE (N3 of Capacitor)
Ø
T4-----CE (N4 of Capacitor)
Ø
T5-----8-pin console cable
Ø
T6-----Elevation cable
Ø
T7-----6-pin console cable
Non CE (D1 of on/off switch)
Non CE (D3 of on/off switch)
3-5
Revision: 1.0
Date: 2001-06-01
