Summary of Contents for Vision Fitness T9350

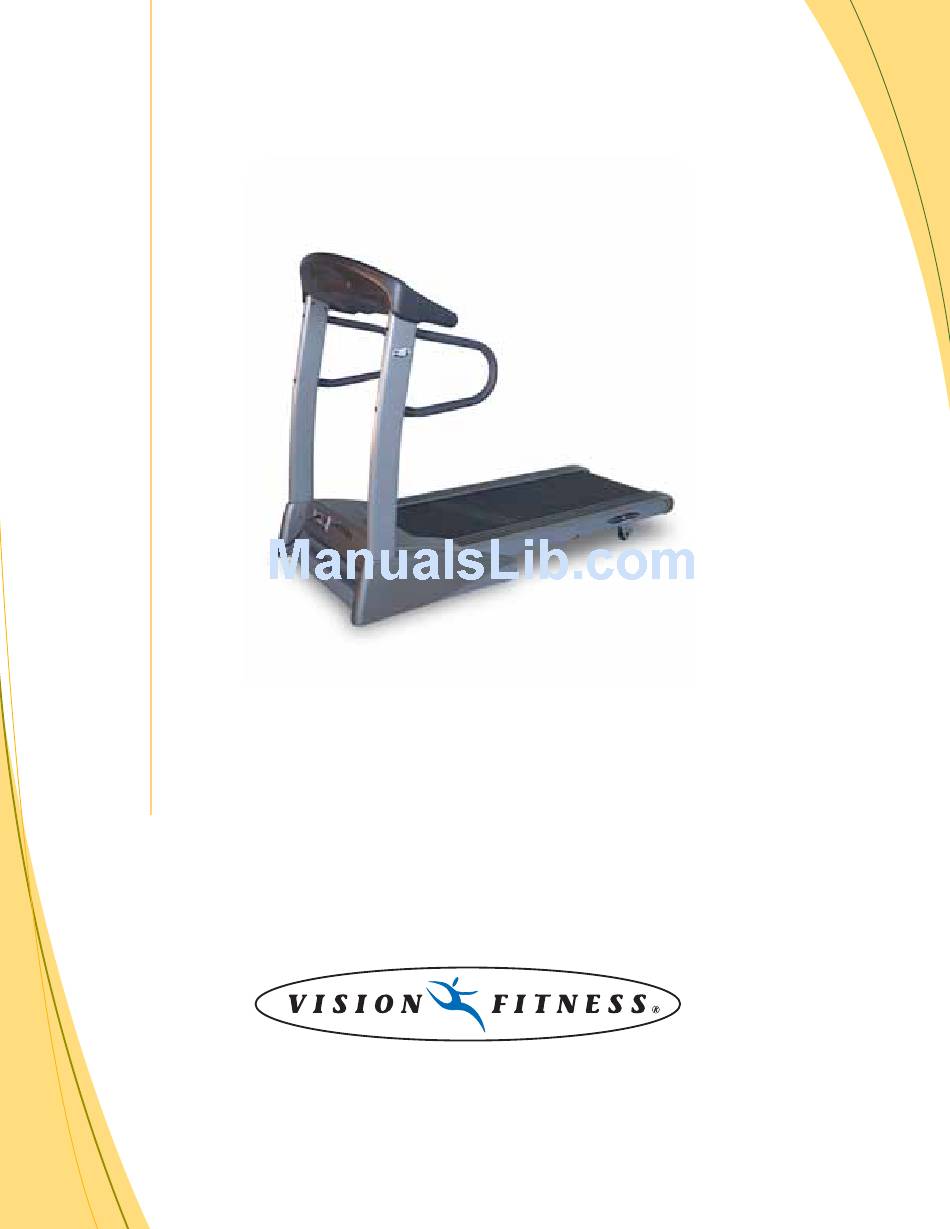

- Page 1 A s s e m b l y G u i d e T9250, T9350 T9450HRT FOLDING TREADMILLS...
- Page 2 Also, during each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before completely tightening any ONE bolt. STEP STEP STEP A s s e m b l y G u i d e T9250, T9350 T450HRT FOLDING TREADMILLS STEP...
- Page 3 5mm Allen Wrench PARTS BOX Heart Rate Chest Strap, Qty: 1 ( Except Models T9250 and T9350 ) Color-coded Hardware Bags 8mm Allen Wrench Water Bottle, Qty: 1 Owner’s Guide Assembly Guide Warranty Card Screwdriver...
- Page 4 HARDWARE INCLUDED PINK BAG ORANGE BAG M8 x 20L Bolts M8 x 20L Bolts Quantity: 2 Quantity: 4 M8 x 50L V-Head Bolts Quantity: 2 BLUE BAG M4 x 12L V-head Screw Quantity: 2 M4 x 12L V-head Flat Screw M8 x 135L Bolts Quantity: 4 Quantity: 4...
- Page 5 STEP STEP STEP STEP ORANGE BAG • Fold up the right-hand console mast to the vertical position. Be sure not to pinch the data cables. • Insert the bolt (M8 x 50L) in the side and tighten with the blue-handled 5mm Allen Wrench.
- Page 6 PINK BAG STEP • Mount the right-hand side mount handlebars to the console mast using two bolts (M8 x 135L). Repeat this on the left-hand side. • Plug in the large data cable into the large plug connection in the connection box on the right-hand side of the console.
- Page 7 STEP Once the treadmill is plugged in, you need to perform an Auto Calibration to assure maximum performance. MODELS T9350 & T9450HRT: DO NOT STAND ON THE BELT WHEN PERFORMING THE AUTO-CALIBRATION • You need to access User Engineering Mode to run the Auto Calibration. To access this mode, please hold down SPEED DOWN and SELECT for 5 seconds.
- Page 8 STEP 500 South CP Avenue • P.O. Box 280 • Lake Mills, WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com ©2004 Vision Fitness. All Rights Reserved. 4.04 Part #Z92TM43-AG AG18.10PRD REV4 BELT TENSION • If the running belt slips when used,...
