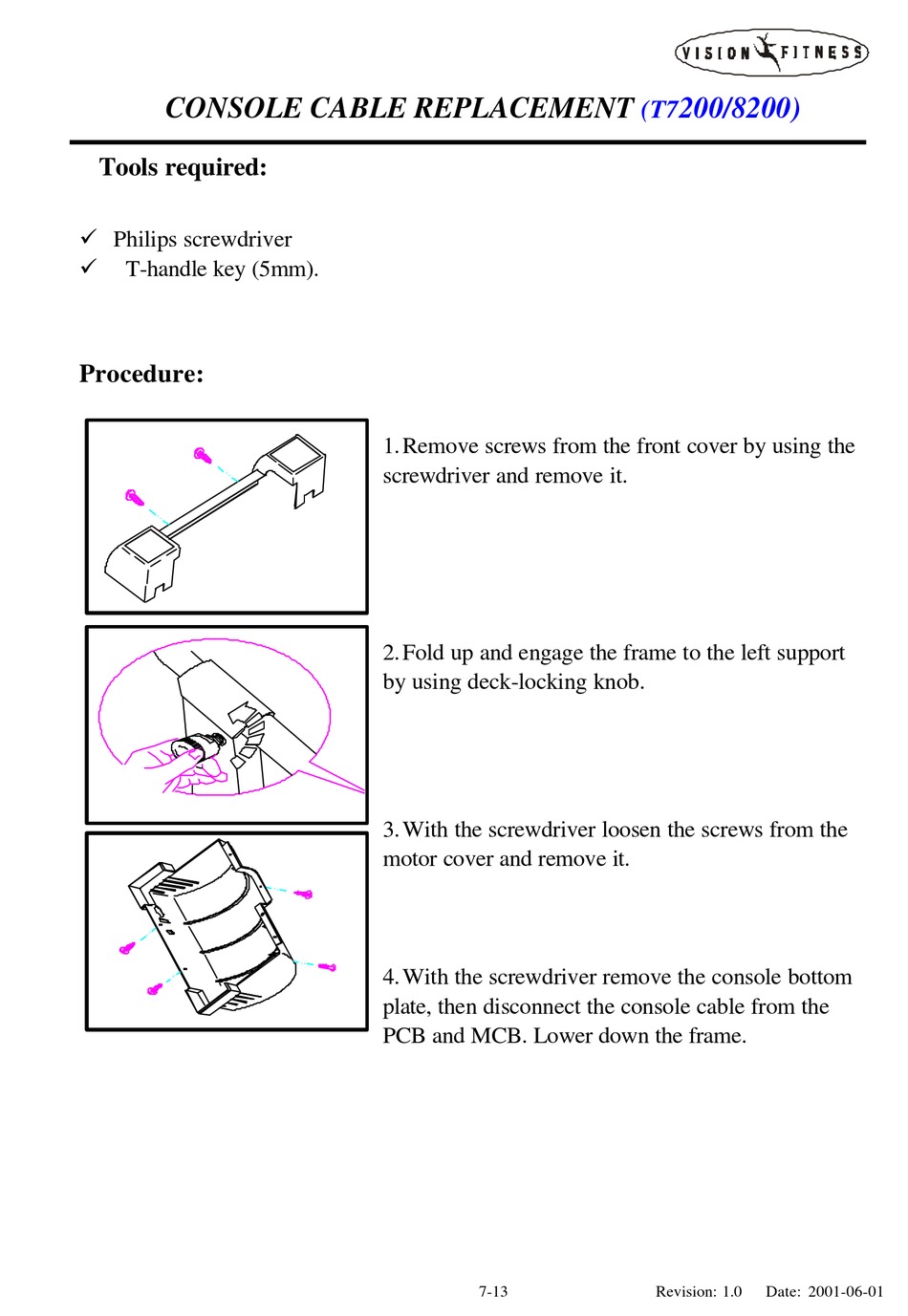

CONSOLE CABLE REPLACEMENT

Tools required:

ü Philips screwdriver

T-handle key (5mm).

Procedure:

1. Remove screws from the front cover by using the

screwdriver and remove it.

2. Fold up and engage the frame to the left support

by using deck-locking knob.

3. With the screwdriver loosen the screws from the

motor cover and remove it.

4. With the screwdriver remove the console bottom

plate, then disconnect the console cable from the

PCB and MCB. Lower down the frame.

7-13

200/8200)

(T7

Revision: 1.0

Date: 2001-06-01
