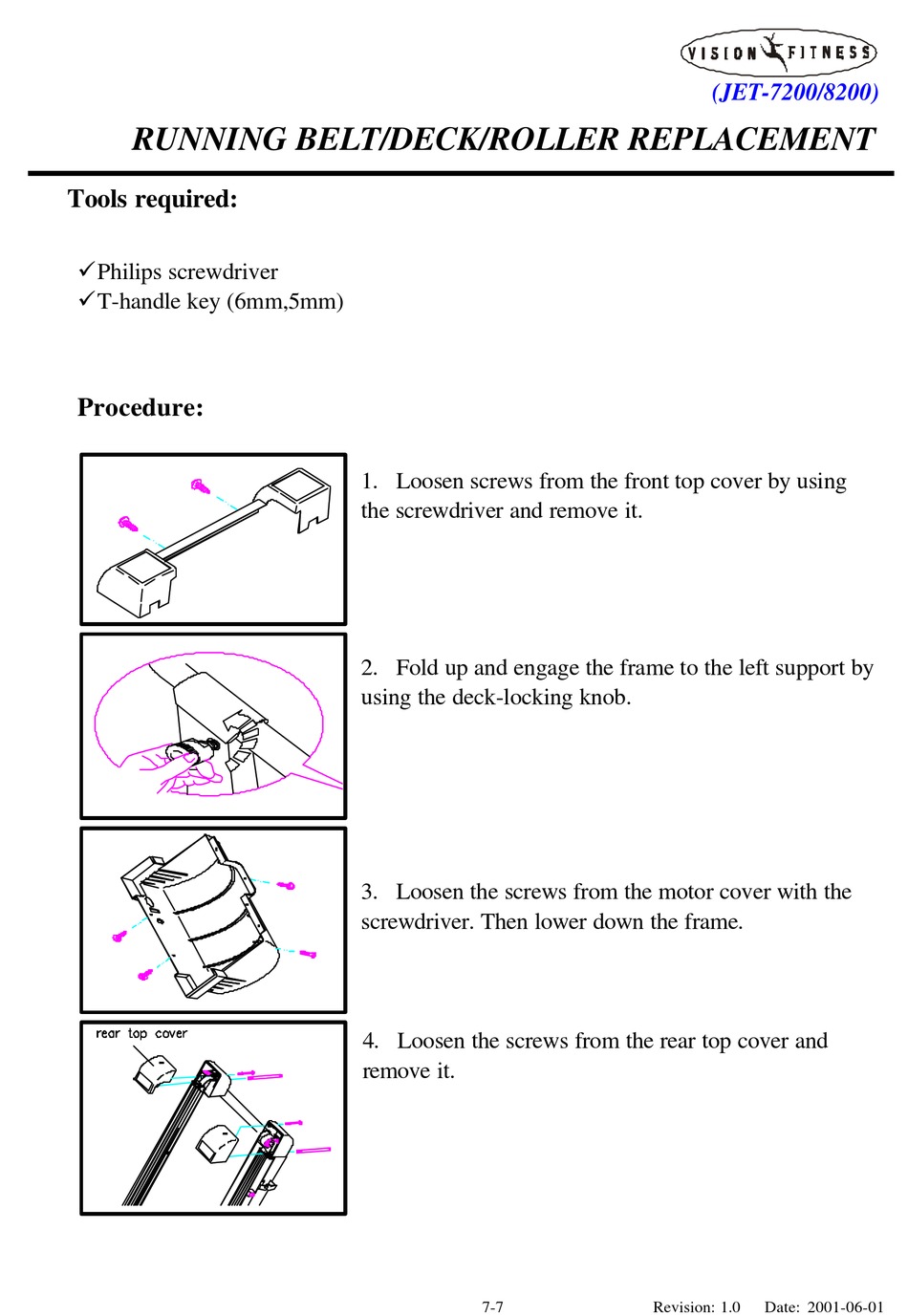

RUNNING BELT/DECK/ROLLER REPLACEMENT
Tools required:
ü Philips screwdriver
ü T-handle key (6mm,5mm)
Procedure:
1. Loosen screws from the front top cover by using
the screwdriver and remove it.
2. Fold up and engage the frame to the left support by
using the deck-locking knob.
3. Loosen the screws from the motor cover with the
screwdriver. Then lower down the frame.
4. Loosen the screws from the rear top cover and
remove it.
7-7
(JET-7200/8200)
Revision: 1.0
Date: 2001-06-01
