Overview

The DIS-CCU Central Unit (CCU) is the system controller for the DDS 5900 Discussion and DCS 6000 Conference
Systems. The CCU processes a mixture of microphone units, interpretation stations, and loudspeakers, all on the
same network. DIS systems comply with international conference standards, supporting advanced speaker control,
interpretation, voting, and conference management for up to 3,800 participants.
Audio Inputs
Audio Outputs

Features

When set to DCS 6000 mode, the DIS-CCU has the following features:
• Controls a system of conference units, interpreter stations, channel selectors and voting units.
• Transports secure audio signal with a proprietary codec algorithm
• Provides a web server for advanced control through a browser interface
• Supplies power for up to 50 conference units
• Supports up to 31 interpretation channels for multilingual meetings
• Provides eight audio outputs to send interpretation channels or microphone groups to PA systems, audio mixers, audio
recorders, or a language distribution system
• Provides two audio inputs for connecting wireless microphones, processed audio signals, an emergency broadcast
message (EEM), or music during meeting breaks
• One rack unit (1RU) size installs into a standard 19" rack

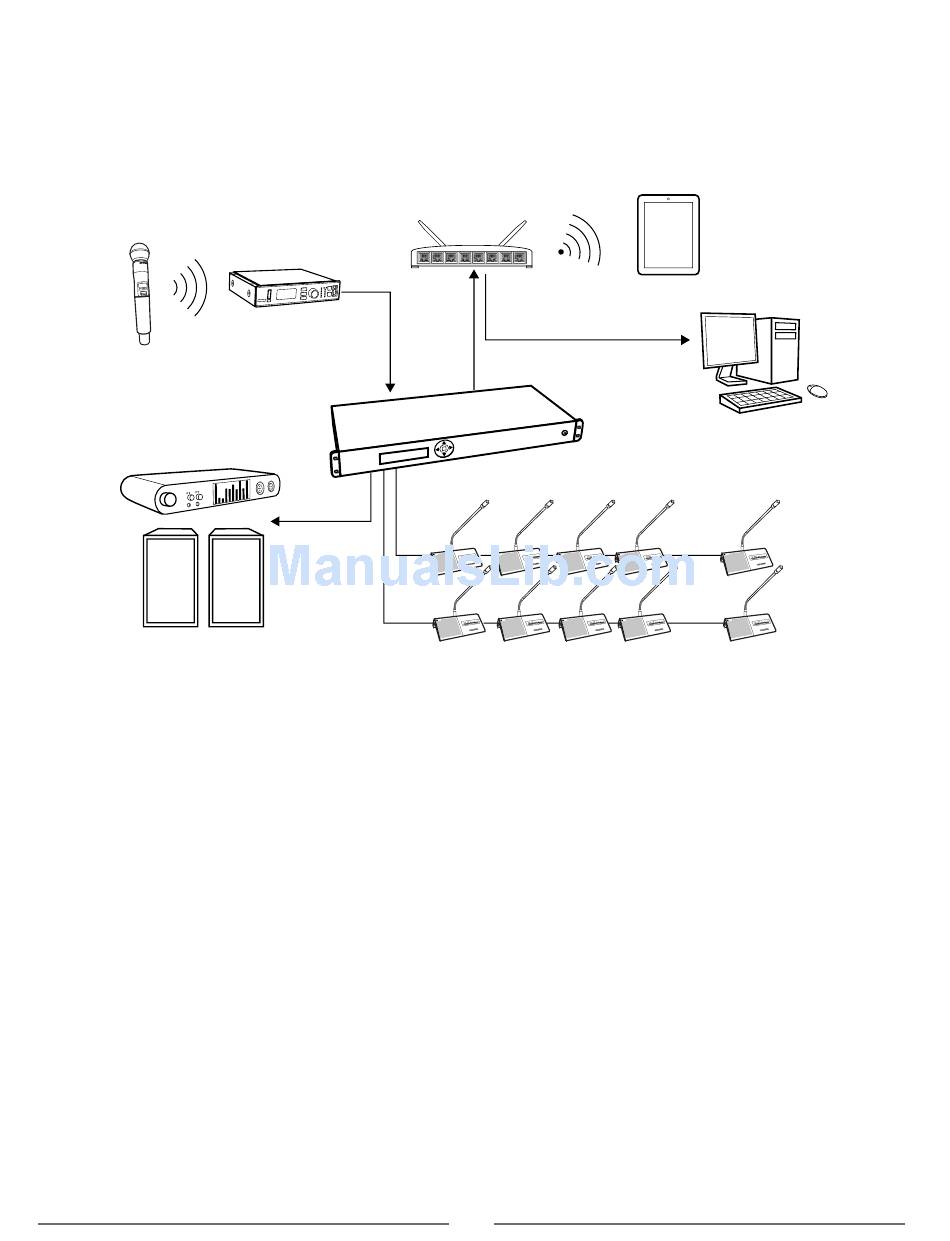

The CCU connects external equipment to the DCS 6000 system
Control of up to 3,8000 conference units
System Hub
7
Remote Control
