Extending Total Cable Length
The CCU operates a system with up to 160 m of shielded Cat5e cable. Add an EX 6010 or the RP 6004 Repeater to add
more cable for large or more complex installations.
The RP 6004 connects anywhere in the DCS-LAN chain, refreshing audio and control data for the units that follow it. It
provides four additional chain outputs that each operate for an additional 200 m.
The signal can be refreshed multiple times for a maximum cable length of 680 m.
Note: This unit does not add any power for components in the chain.

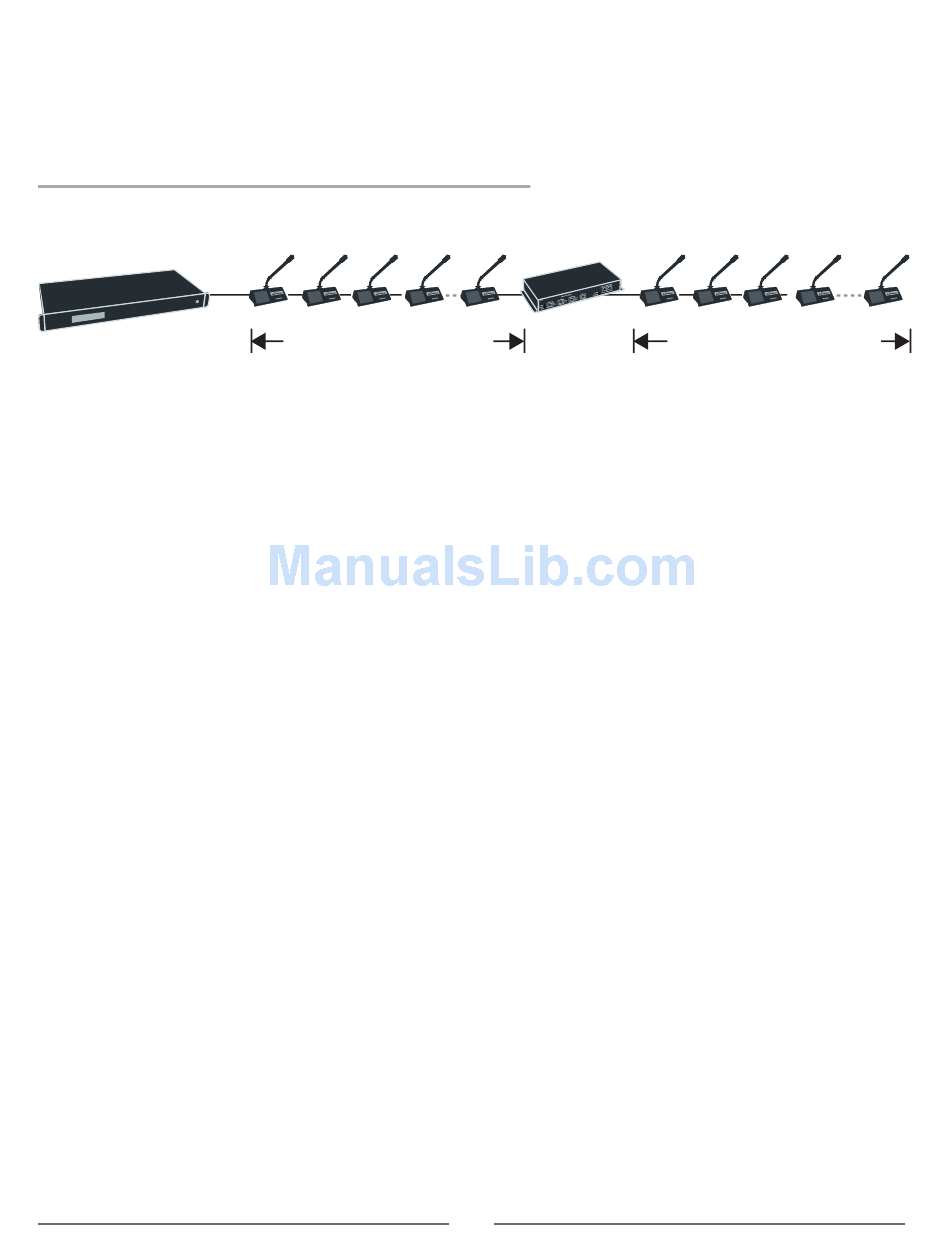

Central Control Unit
RP 6004
Maximum 160 m
Additional 200 m
Inline Signal Repeater
