Power Requirements

For many installations, the DIS-CCU supplies sufficient power for the microphone units. Depending on the setup, the CCU
powers up to 50 units at a time without additional equipment. The number of supported microphone units depends on the
size and layout of the installation.

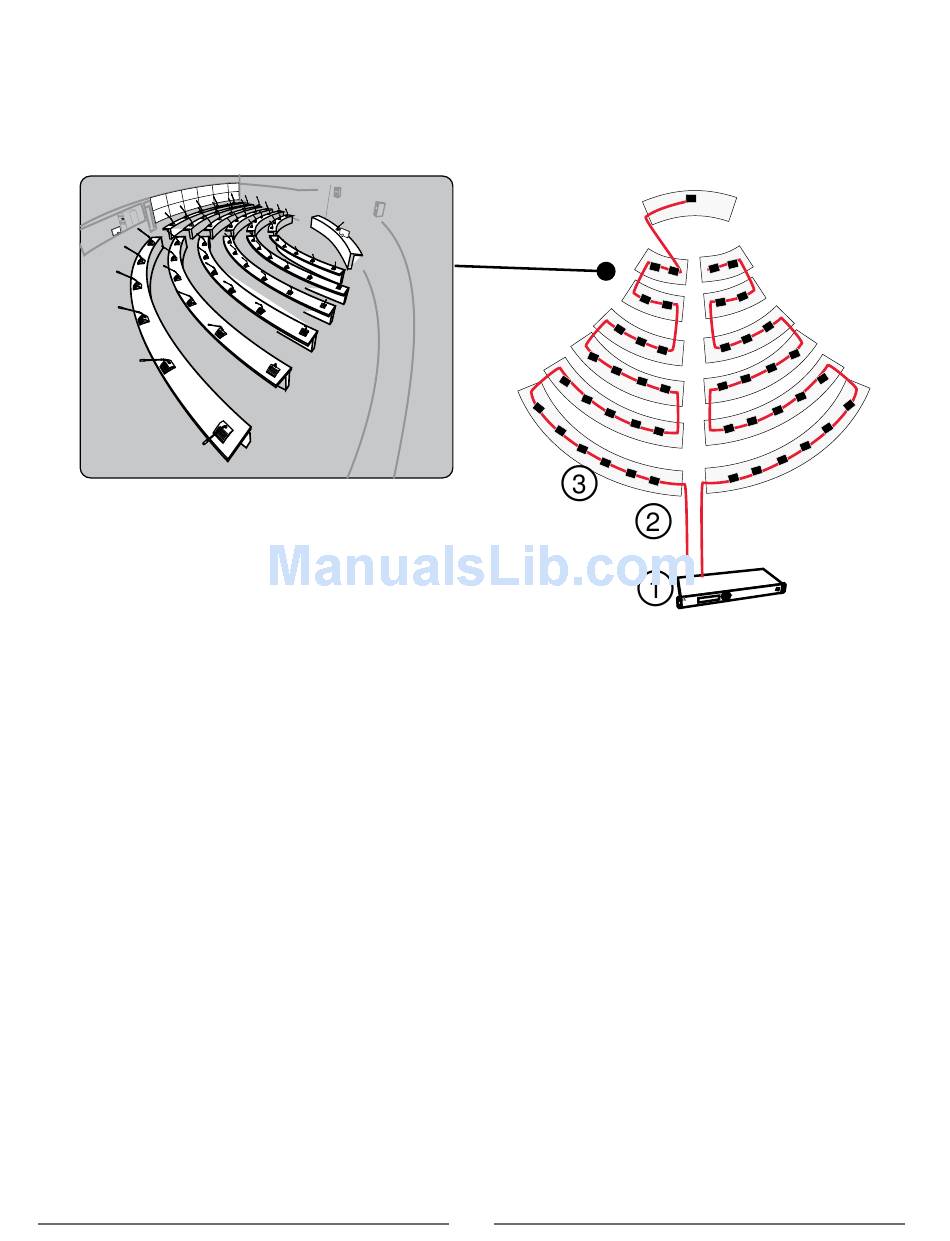

① One to four outputs for microphone
unit chains
② Length from DIS-CCU to first unit
③ Distance between participants
To maximize the unit count without adding equipment:
1. Use multiple chain outputs from the CCU. Units must be divided evenly across each chain
2. Position the CCU so that the distance to the first microphone unit is as short as possible
3. Keep the total cable length as short as possible by decreasing space between units
Power Depends on Installation Variables
