TGWxE1-2G PRI (ISDN) Trunk
Gateways Series for Aeonix

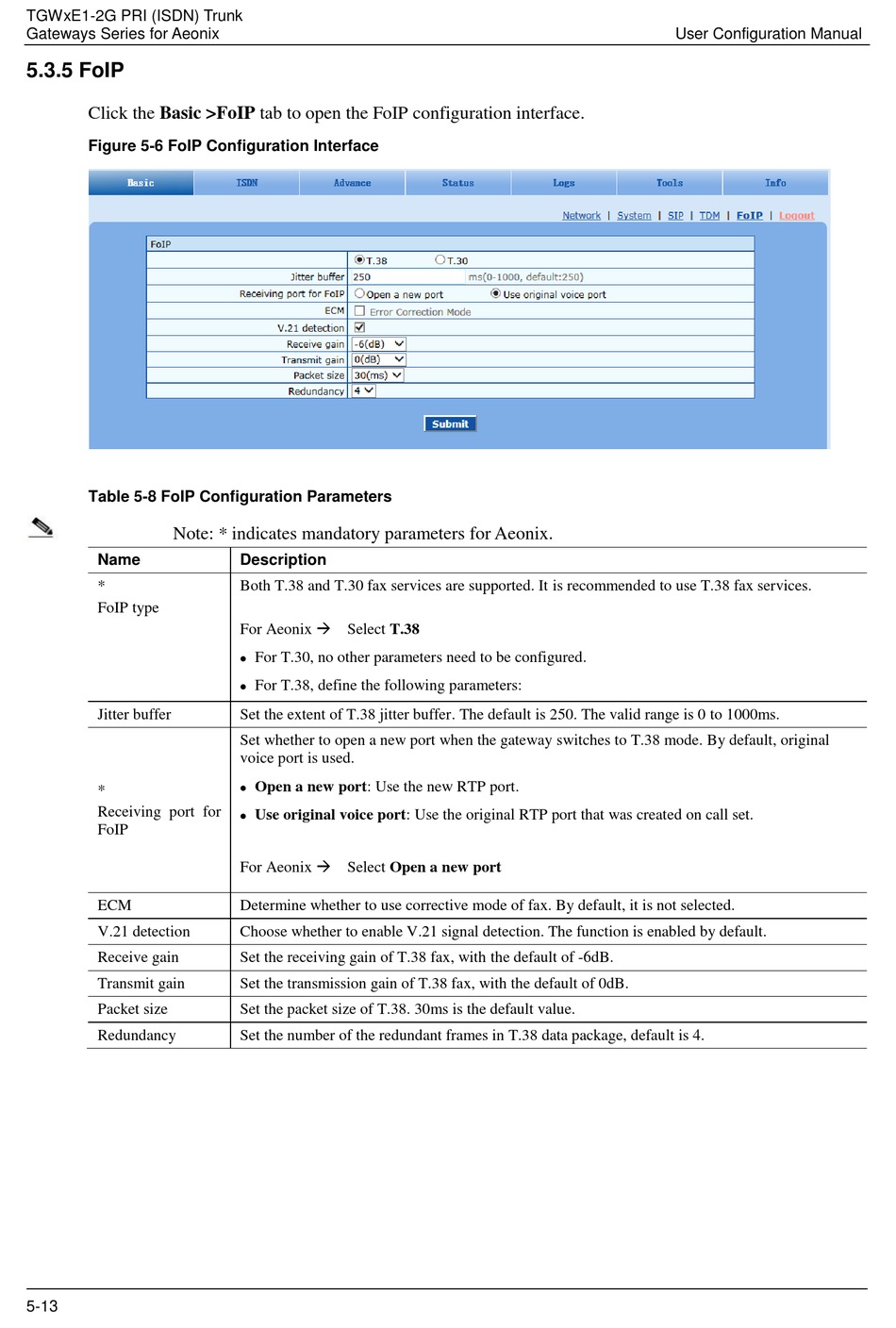

5.3.5 FoIP

Click the Basic >FoIP tab to open the FoIP configuration interface.

Figure 5-6 FoIP Configuration Interface

Table 5-8 FoIP Configuration Parameters

Note: * indicates mandatory parameters for Aeonix.
Name
*
FoIP type
Jitter buffer
*
Receiving port for
FoIP
ECM
V.21 detection
Receive gain
Transmit gain
Packet size
Redundancy
5-13
Description
Both T.38 and T.30 fax services are supported. It is recommended to use T.38 fax services.
For Aeonix  Select T.38
For T.30, no other parameters need to be configured.

For T.38, define the following parameters:

Set the extent of T.38 jitter buffer. The default is 250. The valid range is 0 to 1000ms.
Set whether to open a new port when the gateway switches to T.38 mode. By default, original
voice port is used.
Open a new port: Use the new RTP port.

Use original voice port: Use the original RTP port that was created on call set.

For Aeonix  Select Open a new port
Determine whether to use corrective mode of fax. By default, it is not selected.
Choose whether to enable V.21 signal detection. The function is enabled by default.
Set the receiving gain of T.38 fax, with the default of -6dB.
Set the transmission gain of T.38 fax, with the default of 0dB.
Set the packet size of T.38. 30ms is the default value.
Set the number of the redundant frames in T.38 data package, default is 4.
User Configuration Manual
