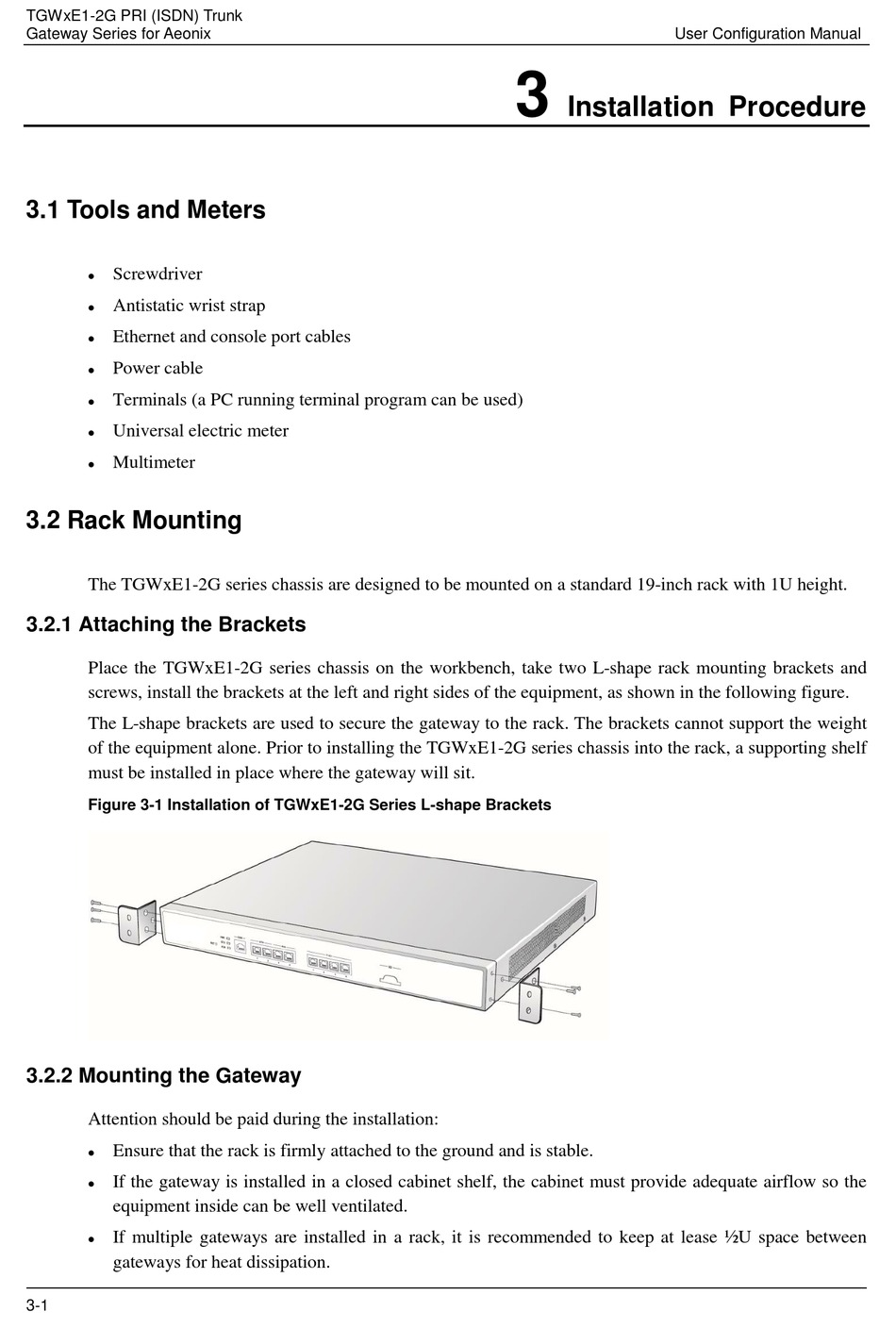

Installation Procedure; Tools And Meters; Rack Mounting; Attaching The Brackets - Tadiran Telecom TGW1E1-2G User Configuration Manual

TGWxE1-2G PRI (ISDN) Trunk
Gateway Series for Aeonix

3.1 Tools and Meters

Screwdriver

Antistatic wrist strap

Ethernet and console port cables

Power cable

Terminals (a PC running terminal program can be used)

Universal electric meter

Multimeter


3.2 Rack Mounting

The TGWxE1-2G series chassis are designed to be mounted on a standard 19-inch rack with 1U height.

3.2.1 Attaching the Brackets

Place the TGWxE1-2G series chassis on the workbench, take two L-shape rack mounting brackets and
screws, install the brackets at the left and right sides of the equipment, as shown in the following figure.
The L-shape brackets are used to secure the gateway to the rack. The brackets cannot support the weight
of the equipment alone. Prior to installing the TGWxE1-2G series chassis into the rack, a supporting shelf
must be installed in place where the gateway will sit.

Figure 3-1 Installation of TGWxE1-2G Series L-shape Brackets

3.2.2 Mounting the Gateway

Attention should be paid during the installation:
Ensure that the rack is firmly attached to the ground and is stable.

If the gateway is installed in a closed cabinet shelf, the cabinet must provide adequate airflow so the

equipment inside can be well ventilated.
If multiple gateways are installed in a rack, it is recommended to keep at lease ½U space between

gateways for heat dissipation.
3-1
User Configuration Manual
3

Installation Procedure
