TGWxE1-2G PRI (ISDN) Trunk
Gateways Series for Aeonix

5.5.3 IP Table

Click the Advanced > IP Table tab to open the IP Table configuration interface.

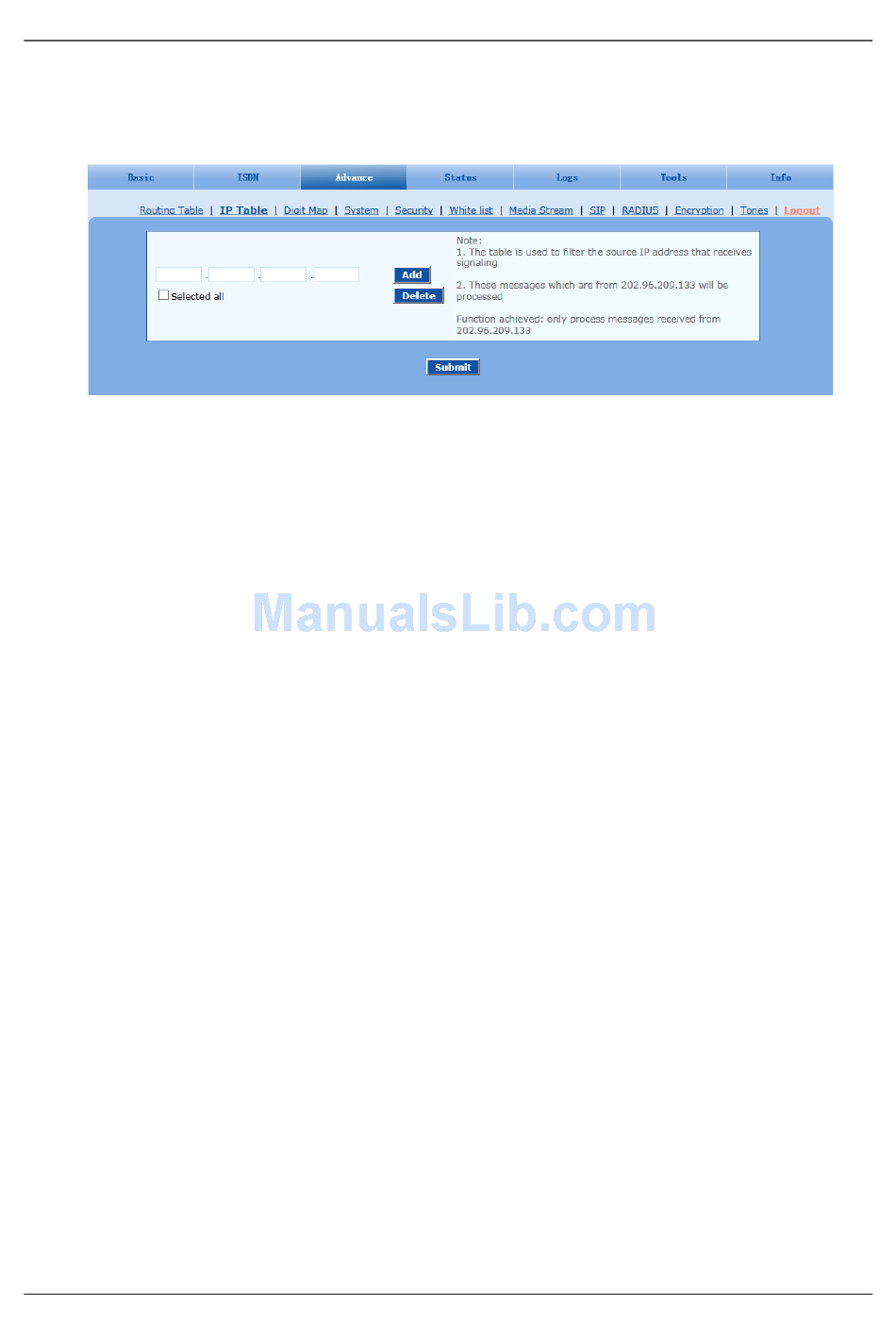

Figure 5-11 Configuration Interface for IP Table

This table is designed to ensure the safe use of gateways. Administrators can add the authorized IP
addresses to this table, and the gateways will only process the information from authorized IP addresses.
If the IP table is empty, the gateways will not perform IP address-based message filtering.
For example: the gateway will only process the messages from 202.96.209.133 after adding
202.96.209.133 to its IP table.
