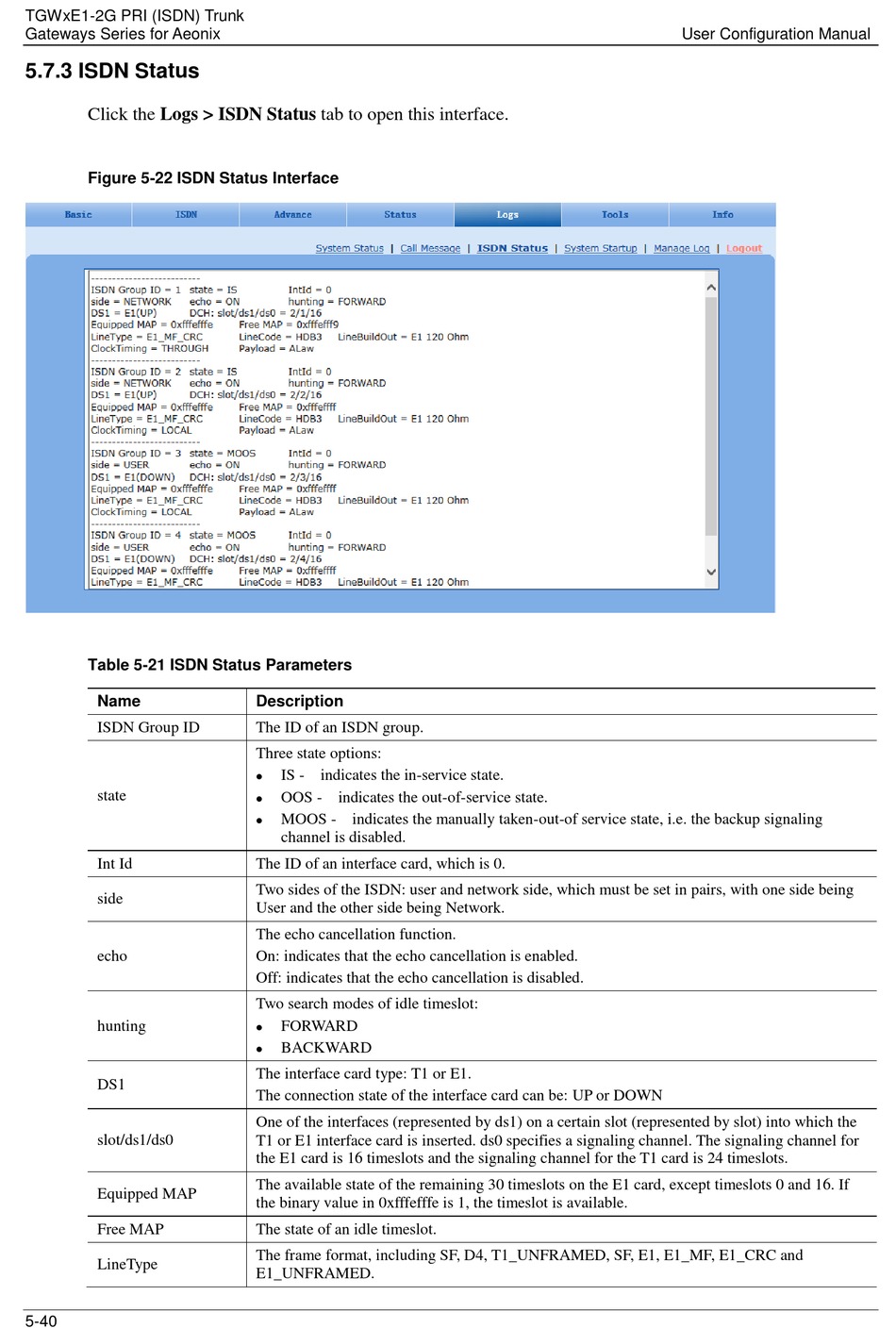

5.7.3 ISDN Status

Click the Logs > ISDN Status tab to open this interface.

Figure 5-22 ISDN Status Interface

Table 5-21 ISDN Status Parameters

Name
ISDN Group ID
state
Int Id
side
echo
hunting
DS1
slot/ds1/ds0
Equipped MAP
Free MAP
LineType
5-40
Description
The ID of an ISDN group.
Three state options:
IS - indicates the in-service state.

OOS - indicates the out-of-service state.

MOOS - indicates the manually taken-out-of service state, i.e. the backup signaling

channel is disabled.
The ID of an interface card, which is 0.
Two sides of the ISDN: user and network side, which must be set in pairs, with one side being
User and the other side being Network.
The echo cancellation function.
On: indicates that the echo cancellation is enabled.
Off: indicates that the echo cancellation is disabled.
Two search modes of idle timeslot:
FORWARD

BACKWARD

The interface card type: T1 or E1.
The connection state of the interface card can be: UP or DOWN
One of the interfaces (represented by ds1) on a certain slot (represented by slot) into which the
T1 or E1 interface card is inserted. ds0 specifies a signaling channel. The signaling channel for
the E1 card is 16 timeslots and the signaling channel for the T1 card is 24 timeslots.
The available state of the remaining 30 timeslots on the E1 card, except timeslots 0 and 16. If
the binary value in 0xfffefffe is 1, the timeslot is available.
The state of an idle timeslot.
The frame format, including SF, D4, T1_UNFRAMED, SF, E1, E1_MF, E1_CRC and
E1_UNFRAMED.
