3.3 Installing Cables

3.3.1 Connecting Console Port

A CON should be provided with the TGWxE1-2G to check errors of the TGW. Connect the CON with
the computer's RS232 serial ports, so local computers can interwork with the TGW through simulating
terminal programs.
The TGWxE1-2G has an RJ45 CON jack. One side of the cable is an RJ45 plug for connecting CON,
while the other side for DB9 Adapter to insert serial ports of configuration terminal. CON Ratio:
115,200bps.
Console Port cable installation procedure is as followed:
Choose a terminal (PC).
Step1
Step2 Power off the terminal and connect RS232 port with the Console port.

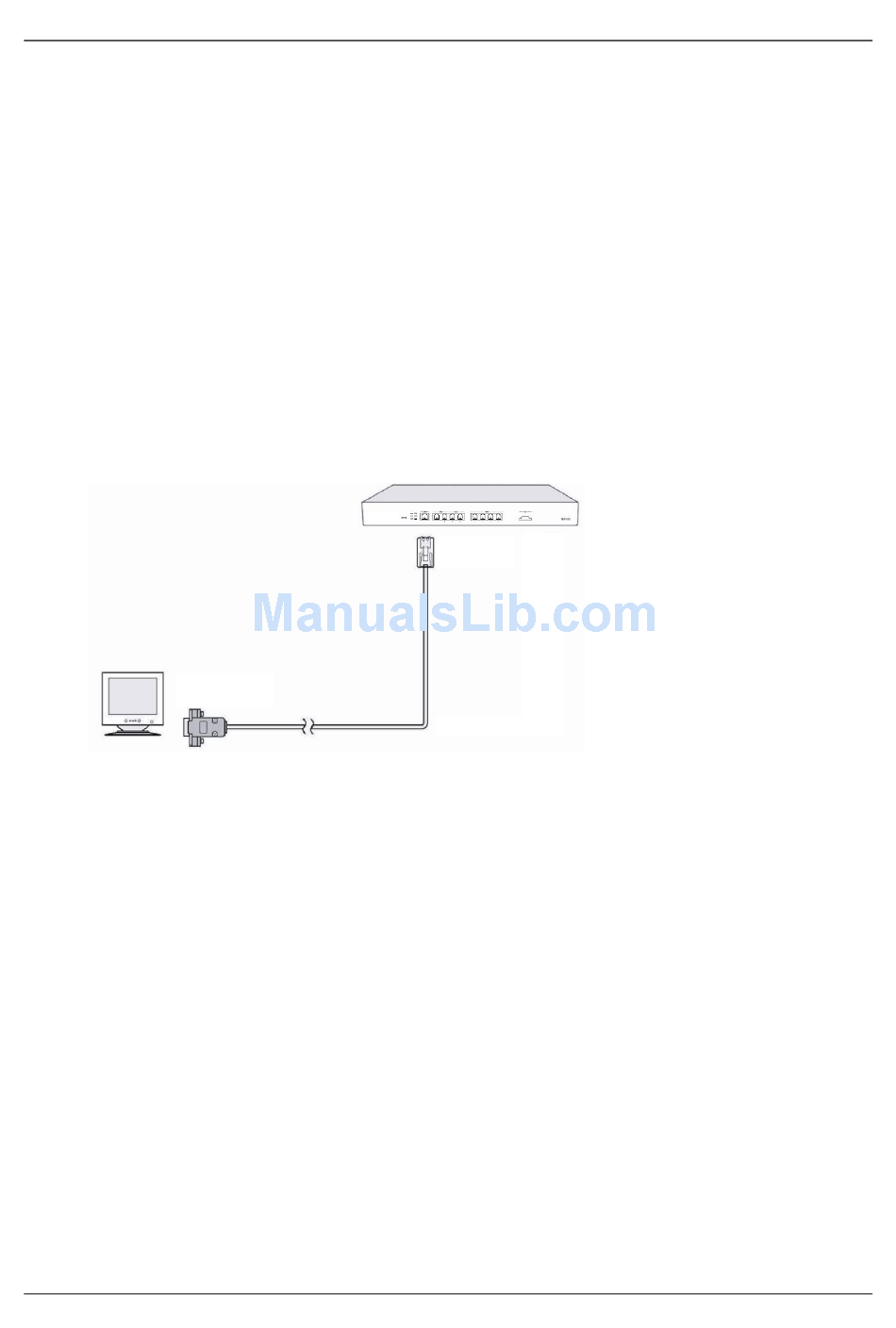

Figure 3-3 Cable of Connecting TGWxE1-2G CON

DB9 – RS232

3.3.2 Connecting the Ethernet Cable

The TGWxE1-2G has the dual-network-interface redundancy function. When one of the network
interfaces is disconnected or does not work properly, traffic services can be switched seamlessly to the
other one.
The TGWxE1-2G has two service interfaces, namely ETH1 and ETH2 for your choice. These two
interfaces need to be connected to the same hub, LAN, or WAN. Only one of them works at a time. After
Ethernet cables are inserted, check the indicator state of the interface that is connected first. If the
indicator is long green or blinking green, it indicates that the connection is established properly.
The TGWxE1-2G has two auxiliary interfaces, namely AUX1 and AUX2. In most cases, no connection is
required for auxiliary interfaces.
RJ45 - CON
