5.5.12 Call Progress Tone Plan

Click the Advanced > Tones tab to open this interface.

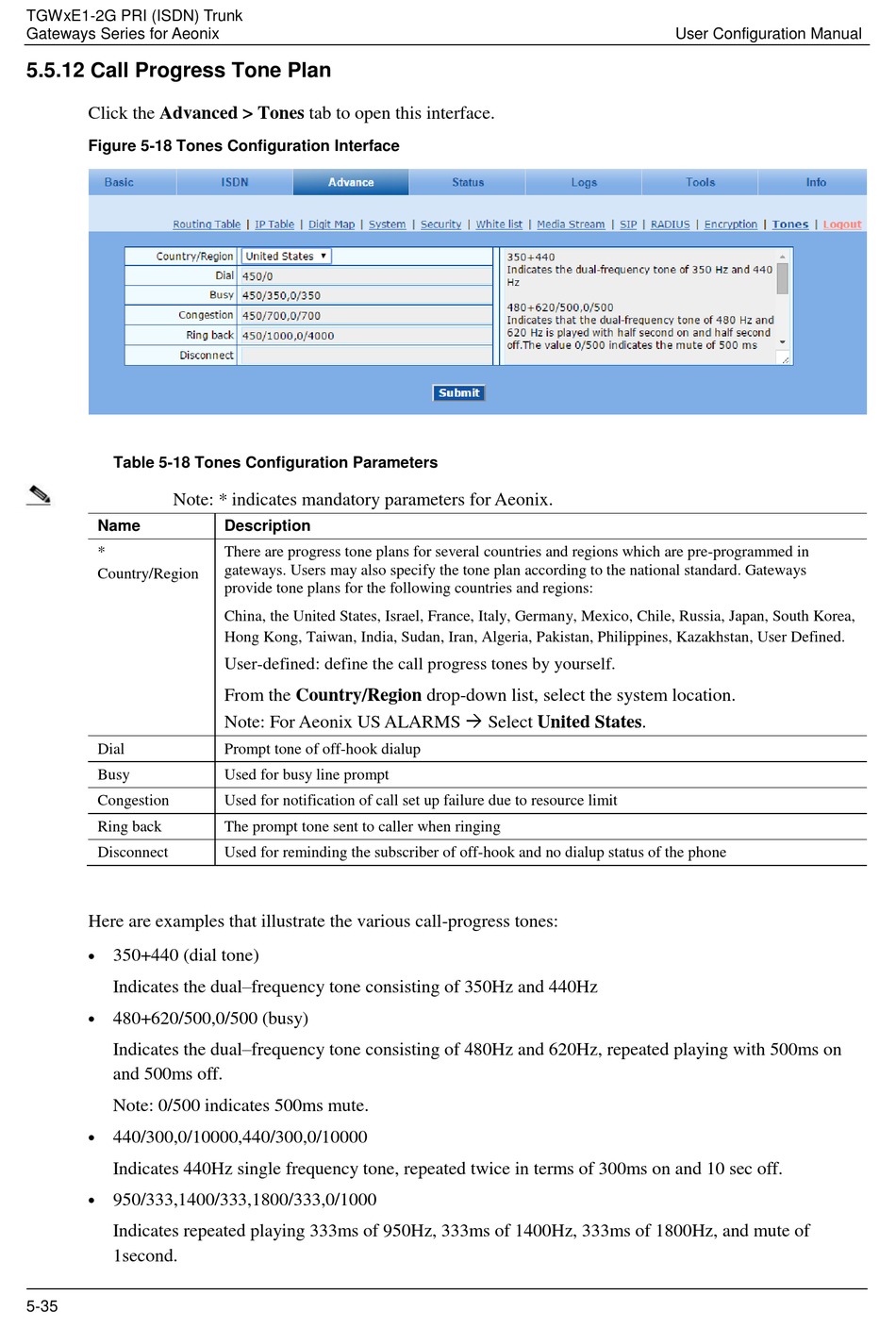

Figure 5-18 Tones Configuration Interface

Table 5-18 Tones Configuration Parameters

Note: * indicates mandatory parameters for Aeonix.
Name
*
Country/Region
Dial
Busy
Congestion
Ring back
Disconnect
Here are examples that illustrate the various call-progress tones:
350+440 (dial tone)

Indicates the dual–frequency tone consisting of 350Hz and 440Hz
480+620/500,0/500 (busy)

Indicates the dual–frequency tone consisting of 480Hz and 620Hz, repeated playing with 500ms on
and 500ms off.
Note: 0/500 indicates 500ms mute.
440/300,0/10000,440/300,0/10000

Indicates 440Hz single frequency tone, repeated twice in terms of 300ms on and 10 sec off.
950/333,1400/333,1800/333,0/1000

Indicates repeated playing 333ms of 950Hz, 333ms of 1400Hz, 333ms of 1800Hz, and mute of
1second.
5-35
Description
There are progress tone plans for several countries and regions which are pre-programmed in
gateways. Users may also specify the tone plan according to the national standard. Gateways
provide tone plans for the following countries and regions:
China, the United States, Israel, France, Italy, Germany, Mexico, Chile, Russia, Japan, South Korea,
Hong Kong, Taiwan, India, Sudan, Iran, Algeria, Pakistan, Philippines, Kazakhstan, User Defined.
User-defined: define the call progress tones by yourself.
From the Country/Region drop-down list, select the system location.
Note: For Aeonix US ALARMS  Select United States.
Prompt tone of off-hook dialup
Used for busy line prompt
Used for notification of call set up failure due to resource limit
The prompt tone sent to caller when ringing
Used for reminding the subscriber of off-hook and no dialup status of the phone
