TGWxE1-2G PRI (ISDN) Trunk
Gateways Series for Aeonix

8.1.3 ISDN Configuration

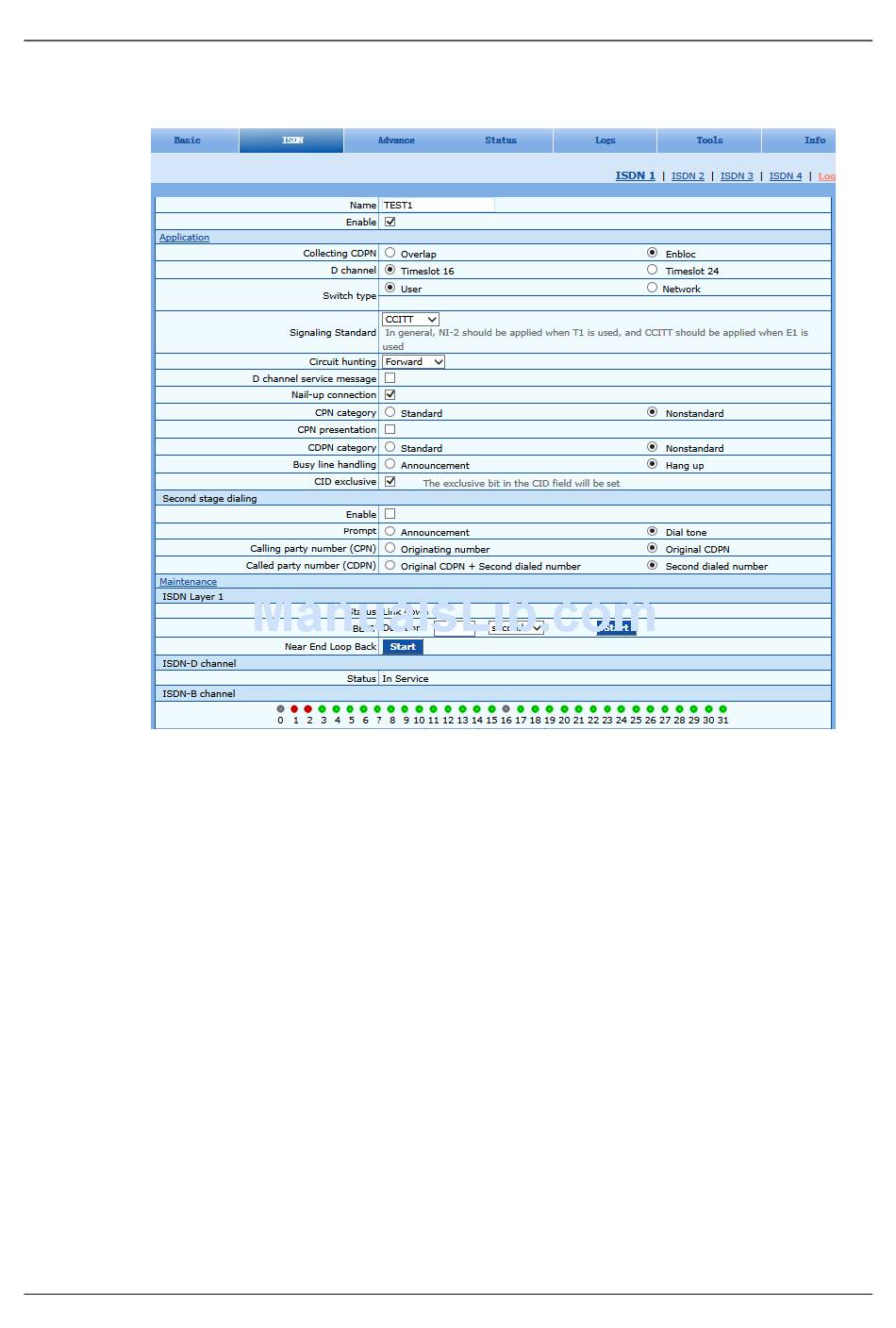

1. Click the ISDN > ISDN1/ISDN2/ISDN3/ISDN4 tabs.
For detailed information, see ISDN on page 5-14.
Fill in the ISDN1/2/3/4 pages, according to your PRI service provider requirements.
a) ISDN1 - for Tadiran TGW4E1-2G, TGW2E1-2G and TGW1E1-2G models.
b) ISDN2 - only for Tadiran TGW4E1-2G and TGW2E1-2G models.
c) ISDN3 - only for Tadiran TGW4E1-2G model.
d) ISDN4 - only for Tadiran TGW4E1-2G model.

8.2 Aeonix Configuration

1. Open the Aeonix Web Admin and login.
2. Perform License Requirements on page 6-1. Ensure that you have the correct licenses.
3. Perform Basic Configuration on page 6-2. Define all PRI trunks in Aeonix. PRI trunks must be
assigned to trunk groups.

8.3 Verification

1. Perform Status Verification on page 7-1, see also section ‎ 5 .4 - ISDN on page 5-14.
