Figure 1-2 Back Panel; Table 1-3 Pinouts Of Ethernet Ports; Table 1-4 Pinouts Of T1/E1 Module; Table 1-5 Description Of Back Panel - Tadiran Telecom TGW1E1-2G User Configuration Manual

TGWxE1-2G PRI (ISDN) Trunk
Gateways Series for Aeonix
Mark Function
ALM Alarm Indicator
Interface state
ETH
indicator
Interface state
AUX
indicator
Interface state
T1/E1
indicator

Table 1-3 Pinouts of Ethernet Ports

RJ45 Pin-out
Description

Table 1-4 Pinouts of T1/E1 Module

RJ45 Pin-out
Description

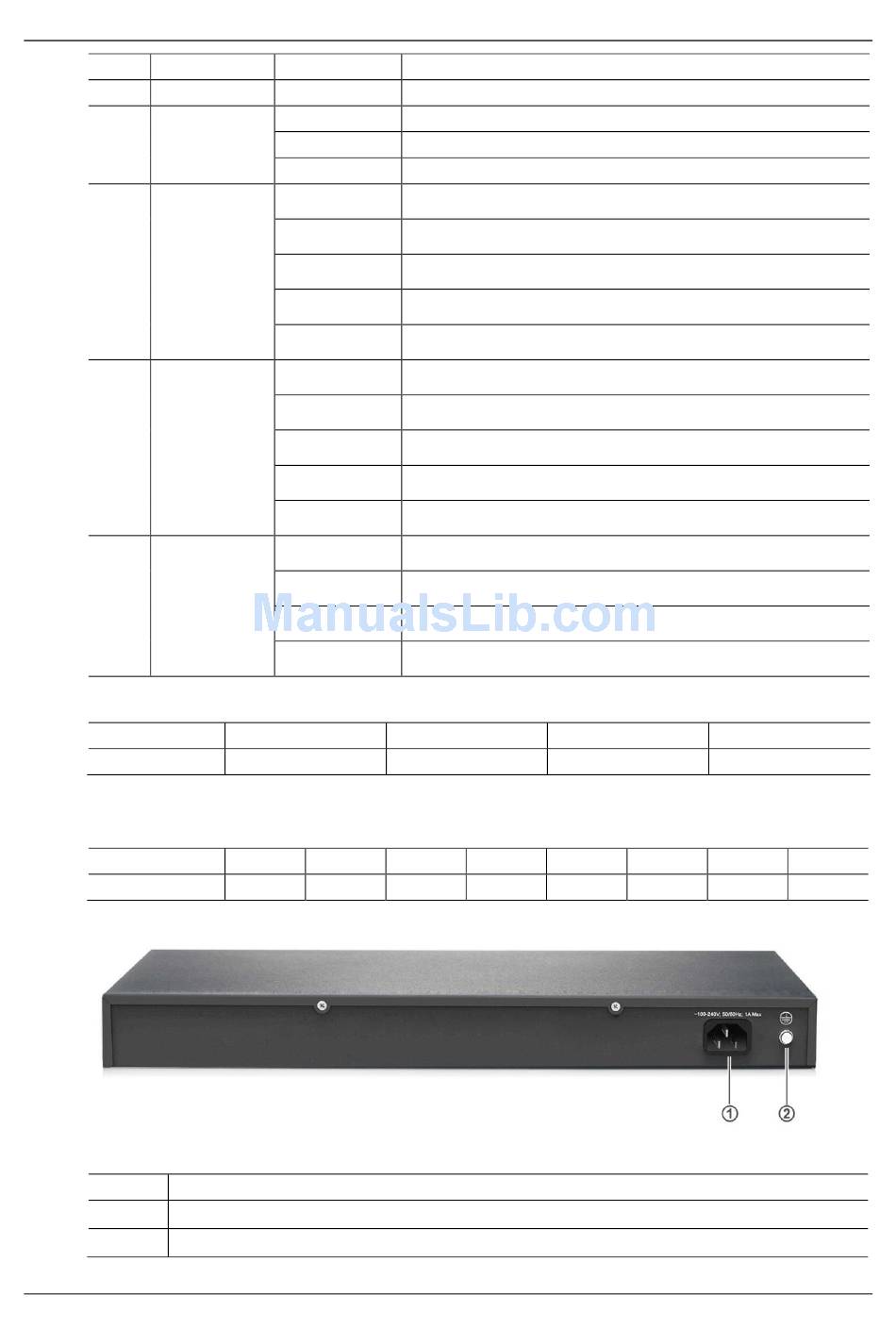

Figure 1-2 Back Panel

Table 1-5 Description of Back Panel

Description
Item
①
AC power socket, 100-240VAC voltage input
②
Ground pole
1-4
Status
Flashing Green
Green
Flashing Red
Red
Green On
Green Off
Yellow On
Flashing Yellow
Yellow Off
Green On
Green Off
Yellow On
Flashing Yellow
Yellow Off
Long Green
Blinking Red
Long Red
Off
1 2
TX+ TX-
1 2 3
RX Ring RX Tip NC
Description
System is operating normally
No alarms
New alarms occurred
Alarms exist
The transmit speed is 1000M bit/s.
The transmit speed is 10M bit/s or 100M bit/s.
The link has been established but no service traffic is transmitted.
Service traffic is being transmitted on the link.
The link is not established.
The transmit speed is 1000M bit/s.
The transmit speed is 10M bit/s or 100M bit/s.
The link has been established but no service traffic is transmitted.
Service traffic is being transmitted on the link.
The link is not established.
The connection works normally.
A remote alarm has been generated.
A local alarm has been generated.
No connection is established.
3
RX+
4 5
TX Ring TX Tip
User Configuration Manual
6
RX-
6 7 8
NC NC NC
