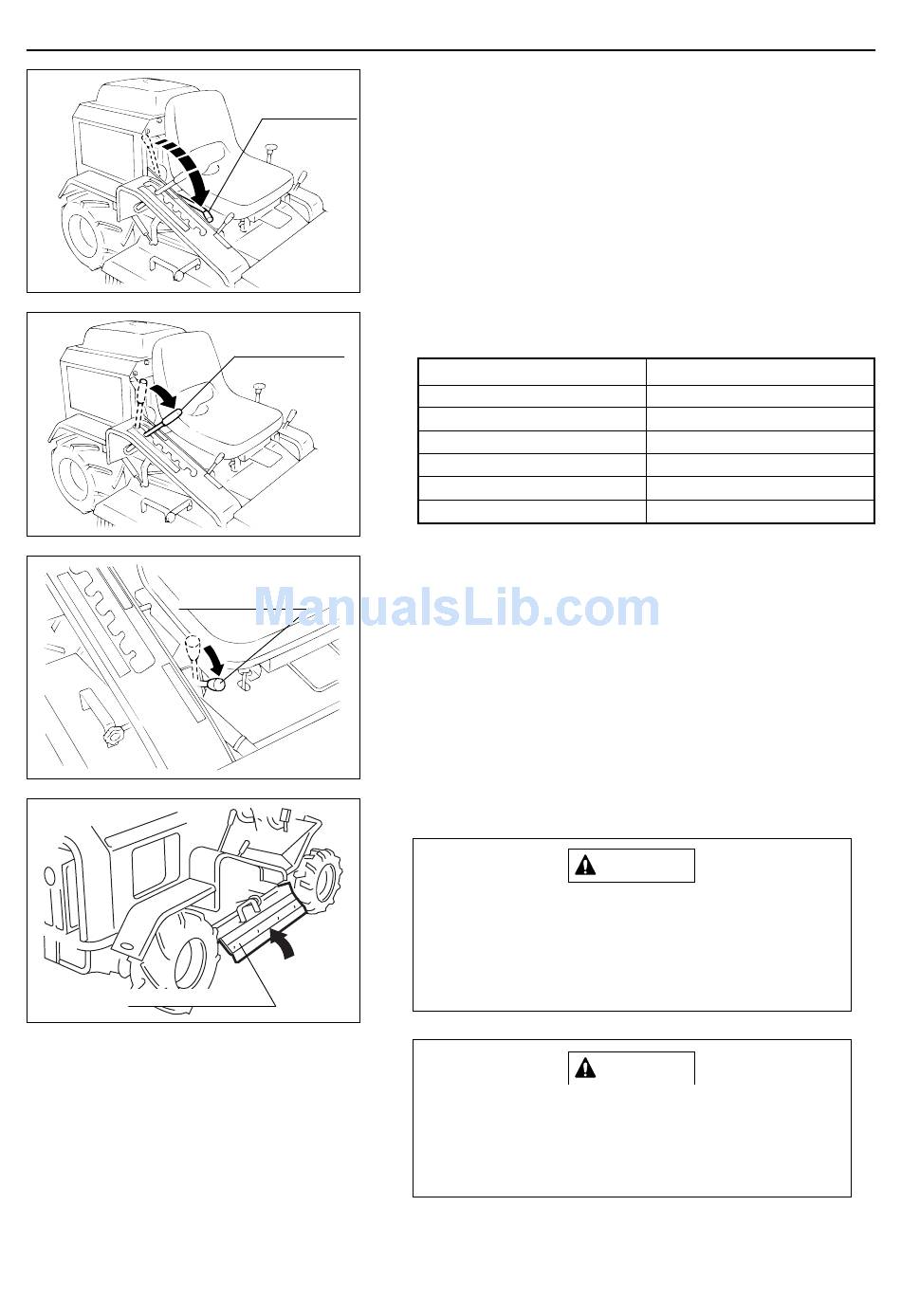

CanyCom CM1802 Operator's Manual page 31

Rotary clutch
lever
Cutting height
adjust lever
Aux. transmission
shift lever
Low speed
Cutting blade shield
Operation
4. Move rotary clutch lever down slowly to [ON] position.
5. In accordance with your requirement, adjust the height of
cutting blade by moving cutting height adjust lever.
Lever Position
Transportation
5
4
3
2
1
*These figures are for reference only. Actual cutting height vary.
6. Move throttle lever to High position to increase engine speed.
7. Move auxiliary transmission shift lever to [Low speed] and
drive slowly. (Adjust speed in accordance with operating con-
ditions.)
8. When the work load is large (i.e. the amount of grass is large),
work at a reduced speed or cut in stepps at different hights.
9. If cut grass does not come out smoothly, slightly open the
right side of cutting blade shield.
When cutting with the right side of cutting blade
shield open, beware of debris or other objects
which may enter the cutter blade area and get
thrown away. Ensure safety of the surround-
ings.
Carry out mowing operation in the forward
direction. Do not perform operation in the back-
ward direction; it makes grass discharge poorly
and causes debris or other objects to fly.
