INSTALLATION CONSIDERATIONS

This section covers some of the more common installation issues seen by a service technician. An improper instal-
lation, though not a valid service issue, has the potential to lead to a customer placing a call for service. Installation
related customer complaints could include, but are not limited to: Unit leveling, unit movement, door misalignment,
drawers not sealing, internal frost or condensation, warm compartment temperatures, exterior condensation, etc.. .
NOTE: If additional installation information is needed, refer to the complete Installation Manual and/or installation
video, or contact the Sub-Zero Technical Assistance Department.
UNIT COULD TIP FORWARD UNDER CERTAIN LOAD CONDITIONS. FAILURE TO INSTALL ANTI-TIP COM-
PONENTS AND EXTEND LEVELERS TO THE FLOOR ACCORDING TO INSTALLATION MANUAL COULD
RESULT IN SERIOUS PERSONAL INJURY OR DEATH.

Unit Leveling

NOTE: The kickplate/grille must be removed before
leveling (See Figure 2-1).
If unit has been anchored to cabinets, side molding
strips must be removed and anchor screws extracted
from unit to cabinet brackets before leveling (See
Figure 2-2).

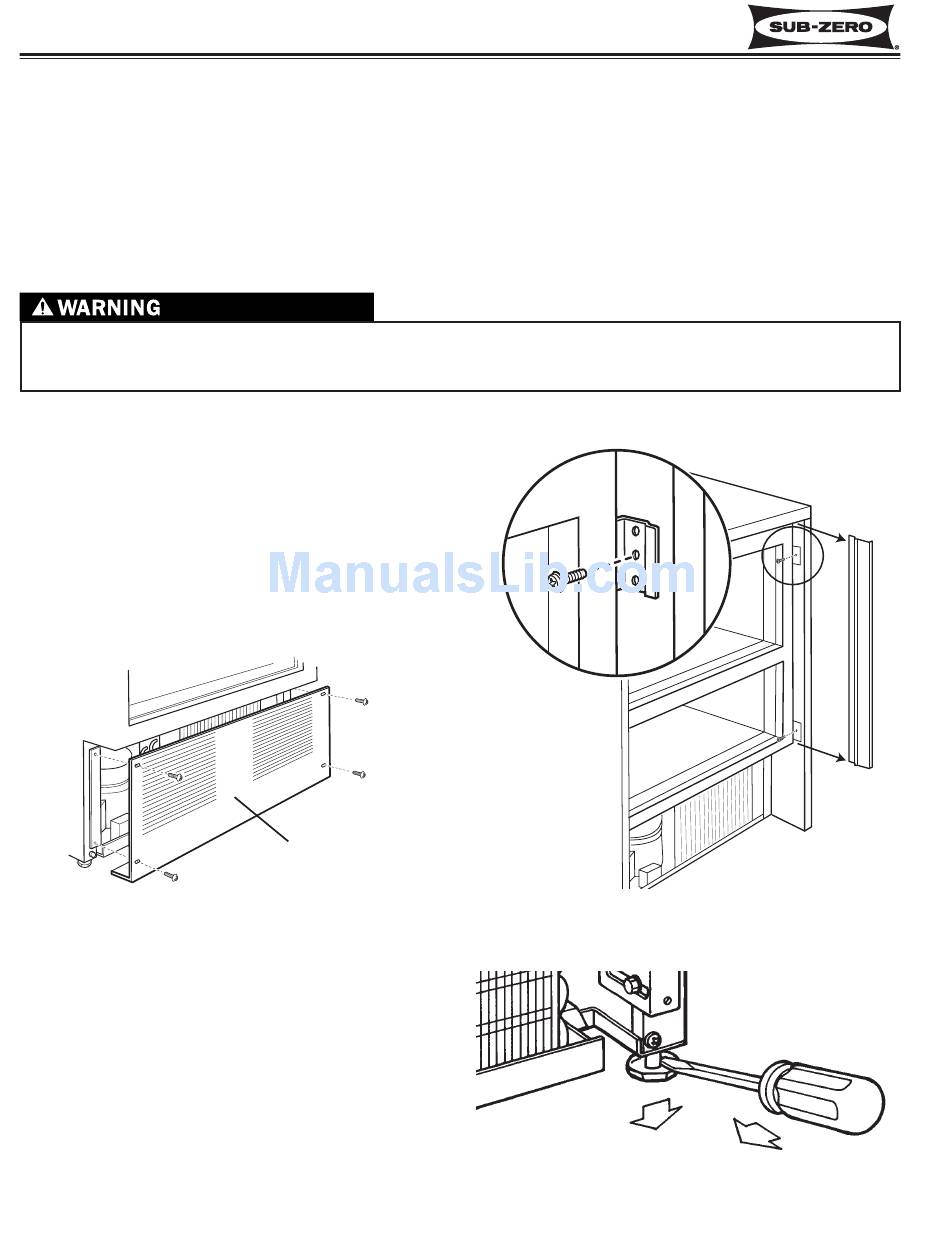

Figure 2-1. Kickplate/Grille Removal
To level unit, turn front leveling legs counterclockwise to
raise front or clockwise to lower it. To assist in turning
front leveling legs, use standard straight-blade screw-
driver, placing it in foot of front leg, then rotate leveler
foot (See Figure 2-3).
#3758424 - Revision B - December, 2005
Integrated
Kickplate / Grille
2-2
3 Series
(700- BASE)
Figure 2-2. Side Molding & Bracket
Figure 2-3. Adjusting Front Levelers
