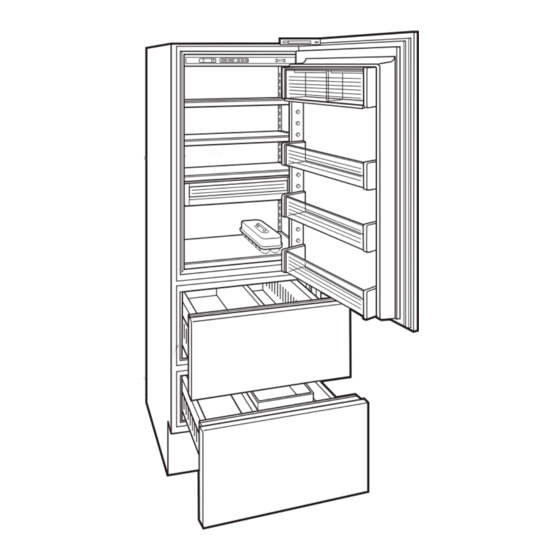

Sub-Zero 700-2 Series Service Manual
  1. Manuals
  2. Brands
  3. Sub-Zero Manuals
  4. Refrigerator
  5. 700-2 Series
  6. Service manual

Sub-Zero 700-2 Series Service Manual

Hide thumbs Also See for 700-2 Series:
Table of Contents

Advertisement

Quick Links

General Information
Installation Information
Controls & Operation
Sealed System
Air Flow & Fan Blade Spacing
Icemaker Information
Component Access & Removal
Troubleshooting Guide
Technical Data
Wiring Diagrams
700
Service Manual
subzero.com
800.222.7820
10
54
62
64
68
107
141
147
2
7

Advertisement

Table of Contents
loading

Related Manuals for Sub-Zero 700-2 Series

Summary of Contents for Sub-Zero 700-2 Series

  • Page 1 subzero.com 800.222.7820 Service Manual General Information Installation Information Controls & Operation Sealed System Air Flow & Fan Blade Spacing Icemaker Information Component Access & Removal Troubleshooting Guide Technical Data Wiring Diagrams...
  • Page 2 700- INTRODUCTION This Sub-Zero Intigrated (700-2) Series Technical Service Manual (Job Aid Part #3756780) has been compiled to provide the most recent information on safety, installation, set-up, design, operation, features, troubleshooting, wiring diagrams, and repair procedures for the Intigrated (700-2) Series units. This information will enable the service tech- nician to troubleshoot and diagnose malfunctions, perform necessary repairs, and return an Intigrated (700-2) Series unit to proper operational status.
  • Page 3 This page contains a summary of the 2, 5 & 12 Year following: Warranty that is supplied with every 700-2 Series unit. Electronic Control System Components, Fan & Light This is followed by a summary of the two special war- Switches, Fan Motors &...
  • Page 4 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- MODEL DESCRIPTIONS The following pages briefly describe the models covered in this manual. Though there are models with and without icemaker, for the purposes of this manual, only the refrigerator models and the models with icemakers we will addressed in the succeeding sections.
  • Page 5 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- Upper Refrigerator Model 700TR-2 (Figure 1-3) Series efrigerator (All Refrigerator with Two Temperature Zones - Upper Refrigerator over Two Drawer Refrigerator) nd Design Build (Unit is 80” H x 27” W x 24” D) Two Drawer Refrigerator Figure 1-3.
  • Page 6 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- Model 700TF-2V (Figure 1-5) NOTE: This model replaced the 700TF-2 as of serial #1898164. Series reezer (All Freezer with One Temperature Zone - Upper Freezer Section over Two Drawer Freezer Section) Upper nd Design Build Freezer...
  • Page 7 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- Upper Model 700BR-2 (Figure 1-6) Refrigerator Zone Series efrigerator Lower (All Refrigerator with Two Temperature Zones - Upper Refrigerator Drawer and Lower Drawer) Zone nd Design Build (Unit is 80” H x 27” W x 24” D) Figure 1-6.
  • Page 8 NOTE: If additional installation information is needed, refer to the complete Installation Manual and/or installation video, or contact the Sub-Zero Technical Assistance Department. UNIT COULD TIP FORWARD UNDER CERTAIN LOAD CONDITIONS. FAILURE TO INSTALL ANTI-TIP COM- PONENTS AND EXTEND LEVELERS TO THE FLOOR ACCORDING TO INSTALLATION MANUAL COULD RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
  • Page 9 90° Stop Cam Door Stop Adjustment 700-2 Series tall units have a 90° door stop cam built into the hinge system. The 90° door stop cam is locat- ed in the center portion of each hinge. To adjust it, use...
  • Page 10 Integrated ( 2) Series Integrated ( 2) Series Installation Information 700- 700- Dual Unit Installations If two or more units are placed side by side and are 2” or less apart, a dual unit heater package must be applied to the left side of the right hand unit. Apply heater Failure to install the dual unit heater package could to left side of...
  • Page 11 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- SECTION 3 ELECTRONIC CONTROL SYSTEM INFORMATION NOTE: The Electronic Control System used in an Integrated (700-2) Tall Unit differs from the Electronic Control System used in a Integrated (700-2) Base Unit. For this reason, Section 3 is divided into two parts.
  • Page 12 700- ELECTRONIC CONTROL TERMINOLOGY & COMPONENT DESCRIPTIONS All Integrated 700-2 Series units utilize an electronic control system. The electronic control system monitors, regu- lates and controls a variety of functions. The electronic control system also displays temperature readings, ice maker system operation, possible problems with the unit and door ajar alarm status. The table below defines some basic electronic control system terminology and describes some of the electronic control system components.
  • Page 13 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- BASIC 700- 2 TALL UNIT ELECTRONIC CONTROL SYSTEM Input operations for the electronic control system are performed at the control panel (located at the top of the upper compartment), with monitoring, regulating and controlling functions taking place at the control board (located directly behind the control panel).
  • Page 14 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- 700-2 TALL UNIT CONTROL BOARD LAYOUT AND SUMMARY TABLE The electrical connection points on the 700-2 tall unit control board are labeled alphanumerically. These labels cor- respond with the alphanumeric control board summary table, located on all 700 Series wiring diagrams. By refer- encing the summary table, it is possible to identify which components are connected at which connection points on the control board.
  • Page 15 Unit ON/OFF All Integrated 700-2 Series units are shipped in the OFF Mode and when power is supplied to the unit, a trace of the word “OFF” is visible on the LCD. By pressing and releasing the UNIT ON/OFF key, (See Figure 3-5.)
  • Page 16 Door Ajar Alarm Bell ON/OFF All Integrated 700-2 Series units are equipped with a door ajar alarm feature. When activated the alarm will alert a customer if a door or drawer is left or stuck open. To enable the door ajar alarm feature, press and release the door ajar alarm bell ON/OFF key on the control panel.
  • Page 17 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- FUNCTIONS OF 700 TALL UNIT ELECTRONIC CONTROL SYSTEM The following few pages explain the monitoring, regulating and controlling functions of the electronic control system. Signal trace schematic illustrations for the model 700TC/I-2 are used to demonstrate current flow for the function being explained.
  • Page 18 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- Monitor, Regulate and Display Compartment Temperatures (700TC/I-2, 700TR-2 and 700TF/I-2) In the models 700TC/I-2, 700TR-2 and 700TF/I-2, the temperature signal from the thermistor in the refrigerator and/or freezer compartment is monitored by the microprocessor and then displayed on the LCD. Though the com- partment air temperature does fluctuate, the LCD displays the average temperature (See Figure 3-10).
  • Page 19 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- Control Variable Speed Compressor (700TF/I-2V) Like other tall units, the temperature signal from the thermistor in a 700TF/I-2V freezer compartment is monitored by the microprocessor and then displayed on the LCD, and when cooling is called for, the evaporator fan and condens- er fan are energized.
  • Page 20 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- Control Condenser Fan Run The microprocessor senses the 115 volt output supplied to both compressors. If either compressor is running, a sig- nal is sent to the condenser fan relay on the control board to close, supplying power to the condenser fan. If both compressors are off, the condenser fan is off.
  • Page 21 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- Monitor Compressor Run Duration, Displays If Service may be Needed (700TC/I-2, 700TR-2 and 700TF/I-2) The microprocessor in the models 700TC/I-2, 700TR-2 and 700TF/I-2 senses the 115 volt output supplied to the compressor(s), monitoring the length of compressor run time (See Figure 3-15).
  • Page 22 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- Monitor and Control “Adaptive Defrost” of Freezer Evaporator Initially the freezer compressor will cycle-run for twelve hours (twenty-four hours in model 700TF/I-2V), after which the microprocessor sends the signal to the defrost relay on the control board to close. This supplies power to the defrost heater, and the compressor is switched off (See Figure 3-15).
  • Page 23 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- Monitor Compressor Run Duration, Displays If Service may be Needed (700TC/I-2, 700TR-2 and 700TF/I-2) The microprocessor in the models 700TC/I-2, 700TR-2 and 700TF/I-2 senses the 115 volt output supplied to the compressor(s), monitoring the length of compressor run time (See Figure 3-15).
  • Page 24 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- Monitor Speed Signal of Variable Speed Compressor Controller, Displays If Service may be Needed (700TF/I-2V) The microprocessor in the model 700TF/I-2V monitors speed commands it sends to the compressor controller (See Figure 3-17).
  • Page 25 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- Monitor Icemaker System and Display If Service Is Needed The microprocessor monitors the 115 volts supplied to the icemaker water valve solenoid. If the solenoid is ener- gized for more than fifteen seconds, power to the icemaker system is disabled (this does not include the fill tube heater).
  • Page 26 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- UNIQUE 700- 2 TALL UNIT ELECTRONIC CONTROL INPUT OPERATIONS The following few pages illustrate unique 700-2 tall unit electronic control input operations performed at the control panel that you would not expect a customer to perform every day. The input operations described are: Temperature Unit Selection Mode, Sabbath Mode, Showroom Mode, Manual Compartment Disable Mode, and Manual Freezer Evaporator Defrost.
  • Page 27 Figure 3-23. After Unit is Switched OFF, Press and Hold the UNIT ON/OFF Key for Ten Seconds Showroom Mode Showroom Mode was incorporated into the 700-2 electronic control system so that Integrated 700-2 Series units could be displayed in a showroom setting. When in Showroom Mode, all cooling functions are disabled, but the lighting system remains active.
  • Page 28 Disabled, Then Press the UNIT ON/OFF Key. Manual Freezer Evaporator Defrost Manual Freezer Evaporator Defrost was incorporated into the Integrated 700-2 Series electronic control to assist in servicing and problem diagnostics. To manually initiate freezer evaporator defrost, press and hold the ICE key at the control panel for five seconds, then release the key.
  • Page 29 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- POSSIBLE 700-2 TALL UNIT ERROR INDICATORS The next few pages contain diagrams illustrating what a customer may see on the LCD if there is a problem/error with the unit. Please note the serial number breaks listed under some diagrams. •...
  • Page 30 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- SERVICE SERVICE UNIT UNIT DRAWERS DRAWERS COLDER COLDER WARMER WARMER COLDER COLDER WARMER WARMER DOOR DOOR ON/OFF ON/OFF ON/OFF ON/OFF Figure 3-34. Model 700TR-2 “EE” Displayed at Left and “SERVICE” Flashing = Lower Compartment Thermistor (or its Wiring) Fault NOTE: To clear this error indicator the problem must be corrected SERVICE...
  • Page 31 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- SERVICE SERVICE UNIT UNIT FREEZER FREEZER COLDER COLDER WARMER WARMER ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF Figure 3-38. Model 700TF/I-2 & 700TF/I-2V “EE” Displayed and “SERVICE” Flashing = Compartment Thermistor (or its Wiring) Fault NOTE: To clear this error indicator the problem must be corrected SERVICE...
  • Page 32 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- 700-2 TALL UNIT ELECTRONIC CONTROL TROUBLESHOOTING INPUT OPERATIONS The following few pages explain troubleshooting input operations performed at the 700-2 tall unit control panel. The input operations described are Diagnostic Mode, Manual Component Activation Mode and Temperature Log Recall. Diagnostic Mode Initiating Diagnostic Mode allows the Service Technician to observe real-time temperature readings from all thermis- tors without temperature averaging.
  • Page 33 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- 700TC/I-2 700TR-2 THERMISTOR LOCATION CODE THERMISTOR LOCATION CODE Freezer Compartment Lower Compartment Refrigerator Compartment Upper Compartment Freezer Evaporator Lower Evaporator Refrigerator Evaporator Upper Evaporator 700TF/I-2 700TF/I-2V THERMISTOR LOCATION CODE THERMISTOR LOCATION CODE...
  • Page 34 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- NOTE: Error Codes were incorporated into the electronic control system after serial #1759493 (700TC/I-2), #1759163 (700TR-2) and #1757258 (700TF/I-2 & 700TF/I-2V). The Error Code table below only applies to units after these serial numbers.
  • Page 35 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- Manual Component Activation Mode After serial #1759493 (700TC/I-2), #1759163 (700TR-2) and #1757258 (700TF/I-2 & 700TF/I-2V), a Manual Component Activation Mode was added to the electronic control system. Manual Component Activation Mode allows a Service Technician to energize a cooling system for five minutes.
  • Page 36 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- Temperature Log Recall Mode The electronic control system is equipped with a temperature history data storage system. This system logs/stores the average temperature of each individual thermistor every two hours (rounded to the nearest two degrees), along with any event indicators (explained later in this section), that may have occurred.
  • Page 37 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- Initiate Temperature Log Recall Mode To View Compartment and Evaporator Temperature History - After serial #1759493 (700TC/I-2), #1759163 (700TR-2) and #1757258 (700TF/I-2 & 700TF/I-2V) Temperature Log Recall Mode was expanded to include the average evaporator temperatures. To view evaporator temperatures as well as the compartment temperatures, begin with the unit ON and in Diagnostic Mode (See Figure 3-57).
  • Page 38 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- Possible Event Indicators During Temperature Log Recall Mode(s) The diagrams below illustrate possible event indicators that may be observed while in Temperature Log Recall Mode. (See Figures 3-63 through 3-66) UNIT FREEZER REFRIGERATOR...
  • Page 39 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- Temperature Log Index Chart NOTE : The chart below applies to the hours in which the control has power. Temperature history data will only be stored when the control has 115V AC supplied to it. If power to the unit is interrupted, the average temperatures for that time period are stored with the event indicator.
  • Page 40 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- BASIC 700- 2 BASE UNIT ELECTRONIC CONTROL SYSTEM Input operations for the electronic control system are performed at the control panel (located inside the upper draw- er), with monitoring, regulating and controlling functions taking place at the control board (located in the sump area). Temperatures and possible problems with the unit are displayed in the control panel on the LCD.
  • Page 41 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- 700-2 BASE UNIT CONTROL BOARD LAYOUT AND SUMMARY TABLE The electrical connection points on the 700-2 base unit control board are labeled alphanumerically. These labels correspond with the alphanumeric control board summary table, located on all 700 Series wiring diagrams. By refer- encing the summary table, it is possible to identify which components are connected at which points on the control board.
  • Page 42 700BF/I-2, depending on the topic covered. (See Figure 3-70 & 3-71) NOTE: The LCD on the Integrated 700-2 Series base units is not back lit by unit lighting. It will appear darker than the LCD on Integrated 700-2 Series tall units. UNIT...
  • Page 43 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- BASIC 700-2 BASE UNIT ELECTRONIC CONTROL INPUT OPERATIONS The following illustrations show the basic input operations performed at the 700-2 base unit control panel. Switching the unit ON and OFF, adjusting the set-point (temperature adjustments), switching the ice maker system ON and OFF (700BFI-2 only), and enabling and disabling the door ajar alarm feature will be explained.
  • Page 44 Drawer Ajar Alarm ON/OFF All Integrated 700-2 Series base units are equipped with a drawer ajar alarm feature. When activated the alarm will alert a customer if a drawer is stuck open or accidentally left open. To enable the drawer ajar alarm feature, press and release the drawer ajar alarm bell ON/OFF key on the control panel.
  • Page 45 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- FUNCTIONS OF 700 BASE UNIT ELECTRONIC CONTROL SYSTEM The following few pages explain the monitoring, regulating and controlling functions of the electronic control system. Signal trace schematics illustrations are used to demonstrate current flow for the function being explained. NOTE: Only normal operating electronic control functions are described along with problems which could cause error annunciators.
  • Page 46 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- Monitor, Regulate and Display Two Separate Compartment Temperatures in the 700BR-2 By using an electronically controlled air baffle, it is possible to adjust the set-point LOW VOLTAGE in the lower drawer of a 700BR-2 a maxi- mum of three degrees colder than the upper drawer.
  • Page 47 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- Monitor, Regulate and Display Temperatures in the 700BF/I-2 The two drawers of the 700BF/I-2 are con- LOW VOLTAGE SCHEMATIC sidered one compartment/zone. It is not possible to set two different set-points for the individual drawers.
  • Page 48 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- Monitor and Control Refrigerator Off-Cycle Defrost in the 700BR-2 If the the upper drawer compartment in a 700BR-2 calls for cooling (upper compartment at high offset temperature), but the temperature sensed by the evaporator thermistor has not reached 38°F (3°C), the evaporator fan will be energized, but power to the compressor and condenser fan will wait.
  • Page 49 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- Monitor and Control “Adaptive Defrost” in the 700BF/I-2 Initially, the freezer compressor will cycle- LOW VOLTAGE SCHEMATIC run for twelve hours, after which the microprocessor sends the signal to the defrost relay on the control board to close.
  • Page 50 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- UNIQUE 700- 2 BASE UNIT ELECTRONIC CONTROL INPUT OPERATIONS The following pages illustrate unique 700-2 base unit electronic control input operations performed at the control panel that you would not expect a customer to perform every day. The following input operations described are Temperature Unit Selection Mode, Sabbath Mode, Showroom Mode and Manual Freezer Evaporator Defrost.
  • Page 51 700- Showroom Mode Showroom Mode was incorporated into the 700-2 electronic control system so that Integrated 700-2 Series units could be displayed in a showroom setting. When in Showroom Mode, all cooling functions are disabled, but the lighting system remains active.
  • Page 52 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- POSSIBLE 700-2 BASE UNIT ERROR INDICATORS This page contains diagrams illustrating what customers may see on the LCD if a problem/error exists with the unit. (For Model 700BR-2, see Figures 3-89 through 3-93.
  • Page 53 Integrated ( 2) Series Integrated ( 2) Series 700- Electronic Control 700- 700-2 BASE UNIT ELECTRONIC CONTROL TROUBLESHOOTING INPUT OPERATIONS This page illustrates 700-2 base unit troubleshooting input operations performed at the control panel, which at this writing is only Diagnostic Mode. Diagnostic Mode Diagnostic Mode allows the service technician to observe real-time temperature readings from the thermistors in both compartments and at both evaporators without off-set adjustments or temperature averaging.
  • Page 54 Integrated ( 2) Series Integrated ( 2) Series Electronic Control 700- 700- ADDITIONAL 700-2 BASE UNIT ELECTRONIC CONTROL NOTES - There is not a 45 minutes dwell after each ice harvest in the BFI-2. - The “SERVICE” and “ICE” annunciators on the LCD of a 700BFI-2 will not blink, and the ice making system will not be disabled, if the water valve is energized for more than 15 seconds.
  • Page 55 700- HFC-134a REFRIGERANT SERVICE INFORMATION The 700-2 Series sealed systems contain HFC-134a refrigerant. This section provides some general rules for work- ing with 134a, and explains procedures to be followed while servicing the sealed system. This is followed by dia- grams which illustrate sealed system operation, then model-specific refrigerant flow diagrams.
  • Page 56 Integrated ( 2) Series Integrated ( 2) Series 700- Sealed System Information 700- SEALED SYSTEM REP AIR PROCEDURES SEALED SYSTEM REP AIR PROCEDURES Problem Service Procedures Non-Operating, Capture refrigerant Inefficient, Noisy Replace compressor Compressor Replace filter-drier Evacuate or sweep charge system (NOTE: To check for a Recharge system with Virgin 134a refrigerant...
  • Page 57 Integrated ( 2) Series Integrated ( 2) Series Sealed System Information 700- 700- SEALED SYSTEM OPERATION The six diagrams on these pages illustrate a basic sealed system. The components are listed in order of refrigerant flow, with an explanation of their fundamental role as part of a sealed system.
  • Page 58 Integrated ( 2) Series Integrated ( 2) Series 700- Sealed System Information 700- Capillary Tube (& Heat Exchanger) (Figure 4-4) The warm liquid refrigerant travels through the long skinny capillary tube which is soldered to the suction line. (These two tubes soldered together create the heat exchanger.) As the warm liquid refrigerant travels through the capillary tube it gives up heat to the cool refrigerant gas traveling through the suction line and the pressure drops, so it is a...
  • Page 59 Integrated ( 2) Series Integrated ( 2) Series Sealed System Information 700- 700- SEALED SYSTEM REFRIGERANT FLOW DIAGRAMS = REFRIGERATOR SEALED SYSTEM = FREEZER SEALED SYSTEM FRAME HEATER (HOT GAS) REFRIGERATOR EVAPORATOR REFRIGERATOR HEAT-EXCHANGER FREEZER HEAT-EXCHANGER FREEZER EVAPORATOR FREEZER FILTER-DRIER REFRIGERATOR COMPRESSOR REFRIGERATOR FILTER-DRIER CONDENSER...
  • Page 60 Integrated ( 2) Series Integrated ( 2) Series 700- Sealed System Information 700- = UPPER REFRIGERATOR SEALED SYSTEM = LOWER REFRIGERATOR SEALED SYSTEM FRAME HEATER (HOT GAS) REFRIGERATOR EVAPORATOR (UPPER) REFRIGERATOR HEAT-EXCHANGER (UPPER) REFRIGRATOR HEAT-EXCHANGER REFRIGERATOR EVAPORATOR (LOWER) (LOWER) REFRIGERATOR FILTER-DRIER (UPR) REFRIGERATOR COMPRESSOR REFRIGERATOR FILTER-DRIER (LWR) (UPPER)
  • Page 61 Integrated ( 2) Series Integrated ( 2) Series Sealed System Information 700- 700- = REFRIGERATOR SEALED SYSTEM FRAME HEATER (HOT GAS) EVAPORATOR (EVAPORATOR SUMP) FILTER-DRIER HEAT-EXCHANGER COMPRESSOR CONDENSER Figure 4-10. Model 700BR-2 Refrigerant Flow = FREEZER SEALED SYSTEM FRAME HEATER (HOT GAS) EVAPORATOR (EVAPORATOR SUMP) FILTER-DRIER...
  • Page 62 Integrated ( 2) Series Integrated ( 2) Series 700- Airflow & Fan Blade Spacing 700- UPPER FAN MOTOR Bracket Clamp 7/8" Blade Away From ± 1/16" Motor (2.22 cm ± .16 cm) LOWER FAN MOTOR Bracket Clamp 3/4" Blade Away From ±...
  • Page 63 Integrated ( 2) Series Integrated ( 2) Series Airflow & Fan Blade Spacing 700- 700- UPPER FAN MOTOR Bracket Clamp 7/8" Blade Away From ± 1/16" Motor (2.22 cm ± .16 cm) LOWER FAN MOTOR Clamp Bracket Away From Motor Blade 7/8"...
  • Page 64 Integrated ( 2) Series Integrated ( 2) Series Airflow & Fan Blade Spacing 700- 700- 11/16" ± 1/16" (1.75 cm ± .16 cm) Blade Clamp Towards Motor Bracket Figure 5-4. 700BR-2 Air Flow and Fan Blade Spacing 11/16" ± 1/16" (1.75 cm ±...
  • Page 65 Integrated ( 2) Series Integrated ( 2) Series Icemaker Operation 700- 700- MODULAR ICEMAKER All Integrated (700-2) Series units utilize a “modular icemaker”. The icemaker operation is not complex, however, an understanding of its cycle of operation is necessary in order for a serviceman to make a proper diagnosis. Modular Icemaker Operation When the icemaker thermostat has sensed temperatures of 17°F, the thermostat closes.
  • Page 66 Integrated ( 2) Series Integrated ( 2) Series 700- Icemaker Operation 700- Additional Icemaker Operation Notes NOTE 1: The ICE ON/OFF key at the control panel activates the icemaker system. If “ICE” is not displayed on the LCD, the icemaker system is OFF. NOTE 2: To allow ice to freeze fully and reduce effects of low water pressure, the electronic control system disables the icemaker system for 45 minutes after each ice harvest (this does not apply to the 700BFI-2).
  • Page 67 Integrated ( 2) Series Integrated ( 2) Series Icemaker Operation 700- 700- MODULAR ICEMAKER TEST PROCEDURES Perform the following tests if the icemaker is thought to be defective. See Figure 6-3 for icemaker test port loca- tions. Test 1 through 5 are performed with 115 Volts AC supplied to the icemaker, so read the “WARNING”...
  • Page 68 Integrated ( 2) Series Integrated ( 2) Series 700- Icemaker Operation 700- WATER FILL ADJUSTMENT The water valve should energize for approximately 7.5 seconds. This should supply 140cc. of water to the ice- maker, or approximately 4.75oz. If this is not the case, the fill amount can be adjusted with the water fill adjust- ment screw.
  • Page 69 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- COMPONENT ACCESS AND REMOVAL This section explains how to adjust, access and remove components from an Integrated (700-2) Series units. There are two parts to this section. The first half pertains to the 700-2 tall units and the second half pertains to the 700-2 base units.
  • Page 70 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- 700-2 TALL UNIT EXTERIOR COSMETIC AND MECHANICAL COMPONENTS Kickplate/Grille Removal (All Tall Units) The kickplate/grille is attached by four screws passing through the kickplate into adjustable kickplate brackets. NOTE: Because drawer panels may extend down in front of the kickplate/grille, it may be necessary to...
  • Page 71 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Drawer Assembly Removal (All Tall Units) There are inverted channels on both sides of the draw- er tubs which rest on telescoping drawer slide assem- Hole in Channel blies.
  • Page 72 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Upper and Lower Hinge Assembly Removal (All Tall Units) The hinge assemblies are attached to hinge mounting brackets with Allen-head bolts. Bolt To remove a hinge assembly, you will need to remove the door assembly first.
  • Page 73 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Upper Light Diffuser Removal (All Tall Units) “T” Slots The side frames of the upper light diffuser have four inverted “T” shaped slots (two each side) which fit over pegs protruding from the side walls of the upper com- partment.
  • Page 74 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Control Panel Assembly Removal (All Tall Units) Key-Hole Slots The control panel is held in place with two rows of screws. The front row of screws go through spacers that fit into key-hole slots at the front of the panel.
  • Page 75 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Upper Compartment Evaporator Fan Assembly Removal (All Tall Units) The upper evaporator fan assembly sets in a pocket in the ceiling of the upper compartment and is secured to the ceiling with screws.
  • Page 76 Figure 7-18) Drawer Slide Assembly Removal (All Units) Figure 7-18. Drawer Closer Assembly Removal There are four drawer slide assemblies in 700-2 Series units, two on each side wall. The drawer slide assem- Drawer Slide Assy blies are attached to the side walls with Allen-head screws passing through the drawer slide bracket into blind threaded inserts.
  • Page 77 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Heat Exchanger Cover Removal (All Tall Units) The heat exchanger cover is held in the back left corner of the lower compartment with two screws that go through the cover and into stand-offs. (See Figure 7-22) Screw To access and remove the heat exchanger cover, the...
  • Page 78 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Lower Compartment Thermistor Removal (700TR-2 Only) NOTE: The lower compartment thermistor in the Compartment Thermistor 700TC/I-2 is attached inside the switch enclosure which is explained later in this section. The lower compartment thermistor in the model 700TR- 2 is located behind the evaporator cover, and is attached to the back wall with a screw.
  • Page 79 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Drain Trough Heater Removal (700TC/I-2, 700TF/I-2, 700TF/I-2V) The drain trough heater in the lower compartment of the 700TC/I-2, 700TF/I-2 and 700TFI-2V is positioned just above the drain trough and held in place by three Heater Brackets heater brackets.
  • Page 80 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Defrost Terminator Removal (700TC/I-2, 700TF/I-2, 700TF/I-2V) The defrost terminator in the 700TC/I-2, 700TF/I-2 and 700TFI-2V is attached to the second tubing pass from the top of the evaporator. To access and remove the defrost terminator, first remove the two drawers, the heat exchanger cover, the evaporator cover and the evaporator fan shroud.
  • Page 81 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Lower Evaporator Thermistor Removal (700TC/I-2, 700TF/I-2, 700TF/I-2V) Evaporator Thermistor In the 700TC/I-2, 700TF/I-2 and 700TFI-2V, a screw secures the lower evaporator thermistor to the top right side of the evaporator, just behind the the top tubing passes.
  • Page 82 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Lower Compartment Light Switch / Fan Switch / Icemaker Switch Removal (All Tall Units) The light switch, fan switch and the icemaker switch in the lower section of all tall units are mounted to the switch enclosure.
  • Page 83 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Condenser Fan Assembly Removal (All Tall Units Except 700TF/I-2V) Screw The condenser fan shroud sets on top of two pegs pro- truding from the unit tray and two screws at the top of the shroud secure it to the condenser.
  • Page 84 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Condenser Fan Assembly Removal (700TF/I-2V) Screw The condenser fan shroud sets on top of two pegs pro- truding from the unit tray and two screws at the top of the shroud secure it to the condenser.
  • Page 85 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Compressor Controller Removal (700TF/I-2V) Screw Compressor Mounting holes in flanges on each side of the compres- Controller sor controller fit over threaded studs that are press fit to the unit tray.
  • Page 86 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- 700-2 TALL UNIT SEALED SYSTEM COMPONENTS Upper Refrigerator Compartment Evaporator Removal (700TCI-2, 700TR-2) The upper refrigerator evaporator in the model 700TC/I-2 and 700TR-2 is concealed by the evaporator cover and is attached to the back wall with screws.
  • Page 87 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- High-Side Filter-Drier Removal (All Tall Units) Screw The high-side filter-driers are located in the center of the unit tray, behind the condenser and are attached to the drier bracket with a cable tie. NOTE: Before attempting to remove a filter drier, evac- uate the refrigerant from the sealed system.
  • Page 88 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Compressor Removal (All Tall Units) The compressors have four rubber compressor grom- mets inserted into their base. Cylindrical metal spacers are placed over threaded studs that are press fit to the unit tray.
  • Page 89 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Condenser Removal (All Tall Units) Screw The condenser is secured to the unit tray by four rivets that pass up through the unit tray into the condenser side brackets. NOTE: Before attempting to remove the condenser, evacuate the refrigerant from the sealed system(s).
  • Page 90 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Upper Compartment Heat Exchanger Removal (700TC/I-2, 700TR-2) 1" The upper compartment heat exchanger in the models 700TC/I-2 and 700TR-2 passes down through a hole in 2" the back left corner of the mullion. The heat exchanger Cut here then passes down through the lower compartment behind the heat exchanger cover and through a hole in...
  • Page 91 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Lower Compartment Heat Exchanger Removal (All Tall Units) The lower compartment heat exchanger is behind the switch enclosure and passes down through a hole in the back right corner of the lower compartment floor. 1"...
  • Page 92 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- 700-2 BASE UNIT EXTERIOR COSMETIC AND MECHANICAL COMPONENTS Kickplate/Grille Removal (All Base Units) The kickplate/grille is attached by four screws passing through the kickplate into adjustable kickplate brackets. NOTE: Because drawer panels may extend down in front of the kickplate/grille, it may be necessary to...
  • Page 93 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Side Trim Molding Strip Removal (All Base Units) Unit to Cabinet The side trim molding strips are held in place by two Bracket unit-to-cabinet brackets which are attached to the sides of the cabinet.
  • Page 94 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- 700-2 BASE UNIT INTERIOR COSMETIC, MECHANICAL AND ELECTRICAL Screws COMPONENTS Control Panel Assembly Removal (All Base Units) The control panel assembly is attached to the inside of the top drawer assembly with three screws. Control Panel Assy To remove the control panel assembly, extract the three screws and tilt the control panel back towards the draw-...
  • Page 95 Figure 7-71) Drawer Slide Assy Drawer Slide Assembly Removal (All Base Units) There are four drawer slide assemblies in 700-2 Series units, two on each side wall. The drawer slide assem- blies are attached to the side walls with Allen-head screws passing through the drawer slide bracket into blind threaded inserts.
  • Page 96 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Reed Switch & Compartment Thermistor Removal (All Base Units) Thermistor The Reed Switches control the compartment lighting and evaporator fan. The upper Reed Switch in the 700BR-2 and 700BF-2, and the lower Reed Switch in the 700BR-2 also contain the compartment thermistor.
  • Page 97 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Sump Cover Assembly Removal (All Base Units) The front of the sump cover is held in place with three screws that pass through the cover and into the floor of the unit.
  • Page 98 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Defrost Heater Removal (700BF/I-2 Only) The defrost heater in the 700BF/I-2 is pressed into the evaporator fins at the front. Heater clips are then hooked from one evaporator tube to another, over the Pull Heater Clips off with needle- heater.
  • Page 99 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Back Air Duct Assembly Removal (All Base Units) A back air duct assembly is held in place with screws that pass through the duct into screw grommet/stand- offs and one screw that passes through the duct into a grounding bracket.
  • Page 100 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Icemaker Switch Removal (700BFI-2 Only) The icemaker switch in the 700BF/I-2 fits in a square hole in the back air duct, just below the icemaker. Tabs on the sides of the switch hold the switch in place. To access and remove the icemaker switch, first remove the drawers, drawer closers, drawer slides, Reed switches, icemaker, sump cover and back duct.
  • Page 101 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- 700-2 BASE UNIT COMPRESSOR AREA Screw ELECTRICAL AND MECHANICAL Water Valve COMPONENTS Inlet Stub Key-Hole Slot Icemaker Water Valve Removal (700BFI-2 Only) The icemaker water valve assembly on a 700BF/I-2 is attached to the valve bracket, which is located on the right side of the compressor area, in front of a fiber- Compression...
  • Page 102 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Condenser Fan Assembly Removal (All Base Units) Screw The condenser fan shroud sets on top of two pegs pro- truding from the unit tray and two screws at the top of the shroud secure it to the condenser.
  • Page 103 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Drain Tube Heater Removal (700BF/I-2 Only) Screw The electrical connections for the 700BF/I-2 drain tube heater are located at the back of the compressor area with the heater leads entering the sump drain tube from the compressor area.
  • Page 104 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- 700-2 BASE UNIT SEALED SYSTEM Screw COMPONENTS High-Side Filter-Drier Removal (All Base Units) The high-side filter-drier is located to the right of the condenser and is attached to the condenser outlet tube with a cable tie.
  • Page 105 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Compressor Removal (All Base Units) Screw The compressor has four rubber compressor grommets inserted into its base. Cylindrical metal spacers are placed over threaded studs that are press fit to the unit tray.
  • Page 106 Integrated ( 2) Series Integrated ( 2) Series 700- Component Access/Removal 700- Condenser Removal (All Base Units) Screw The condenser is secured to the unit tray by four rivets that pass up through the unit tray into the condenser side brackets. NOTE: Before attempting to remove the condenser, evacuate the refrigerant from the sealed system.
  • Page 107 Integrated ( 2) Series Integrated ( 2) Series Component Access/Removal 700- 700- Evaporator / Heat Exchanger Assembly Removal (All Base Units) The evaporator / heat exchanger assembly was installed into the unit by inserting the heat exchanger down through the hole at top left front of the sump. As the heat exchang- er is fed through the hole, the side brackets of the evapora- tor slide down into channels in the sump and the control board enclosure.
  • Page 108 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- TROUBLESHOOTING GUIDES This section of the manual contains: • The Error Code Table and the Error Code Troubleshooting Guide. NOTE: Error Codes were incorporated into the electronic control system after serial #1759493 (700TC/I-2), #1759163 (700TR-2) and #1757258 (700TF/I-2 &...
  • Page 109 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- ERROR CODE TROUBLESHOOTING GUIDE TEST / ACTION A. If “EE” for refrigerator compartment was displayed and “SERVICE” flashing, check the following: Thermistor electrical connections and continuity from thermistor to J1 on control board. Reconnect / repair. Resistance of thermistor for 30,000 to 33,000 ohms at 32°F.
  • Page 110 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- ERROR CODE TROUBLESHOOTING GUIDE NOTE: Error Codes 80 to 88 apply to the model 700TF/I-2V only. TEST / ACTION A. With cold evap. (< 10°F), initiate Manual Defrost, then initiate Diagnostic Mode (press UNIT ON/OFF key every 20 seconds to keep in Diagnostic Mode) and observe evap.
  • Page 111 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- ERROR CODE TROUBLESHOOTING GUIDE NOTE: Error Codes 80 to 88 apply to the model 700TF/I-2V only. TEST / ACTION A. If unit is NOT experiencing cooling problems, clear error code. B.
  • Page 112 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- HOW TO USE THE GENERAL TROUBLESHOOTING GUIDE The table on page 9-8 indicate how the General Trouble Shooting Guide is arranged. Letters “A” through “X” pertain to the Tall units, letters “AA” through “TT” pertain to Base units. Identify the description of the problem that the unit is experiencing from the table.
  • Page 113 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- For Base Unit Temperature Problems - Regardless of Serial Number 1. Begin troubleshooting by observing compartment set points. 2. If set-points are normal, initiate Diagnostic Mode by pressing and holding either COLDER key, then press UNIT ON/OFF key, then release both keys.

  • Page 114: Table Of Contents

    Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- GENERAL TROUBLESHOOTING GUIDE LAYOUT Page # Tall Units - A through X Warm Freezer Compartment Temp. with “SERVICE” Flashing on the LCD ............8-9 Warm Freezer Compartment Temp. without “SERVICE” Flashing on the LCD ............8-11 Warm Refrigerator Compartment Temp.
  • Page 115 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION A.) Warm Freezer Temperature Door or Drawer Ajar with “SERVICE” Flashing a. Food product obstruction a. Move obstruction. Pointers: b. Door/cabinet hinge problem See Door Hinge Operation Test Procedures later in this section.
  • Page 116 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION (Continued) Evaporator Heavily Frosted A.) Warm Freezer Temperature a. Door or drawer ajar a. See Door or Drawer Ajar on previous page. with “SERVICE”...
  • Page 117 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION B.) Warm Freezer Temperatures No Power to Unit Check power to unit, plug unit in or switch without “SERVICE” Flashing supply circuit breaker ON. Pointers: Unit Switched OFF Check for “OFF”...
  • Page 118 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION (Continued) Evaporator Fan Fault B.) Warm Freezer Temperatures a. Top hinge cover missing, not depress- a. Replace hinge cover. without “SERVICE” Flashing ing fan switch (See Pointers on previous page) b.
  • Page 119 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION C. Warm Refrigerator Door or Drawer Ajar Temperatures with “SERVICE” Flashing a. Food product obstruction a. Move obstruction. b. Door/cabinet hinge problem See Door Hinge Operation Test Procedures Pointers: later in this section.
  • Page 120 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION (Continued) Evaporator Heavily Frosted C. Warm Refrigerator a. Door or drawer ajar a. See Door or Drawer Ajar above. Temperatures with b. Evaporator fan fault b.
  • Page 121 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION (Continued) Lights ON with Door/ Drawers Closed D. Warm Refrigerator a. Top hinge cover missing, not depress- a. Replace hinge cover. Temperatures without ing light switch “SERVICE”...

  • Page 122: Warm Or Normal Temp. In One Or Both Compartment With "Service" Flashing And "Ec" On The Lcd

    Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION E. Warm or Normal High Room Ambient Instruct customer unit performs best Temperatures in Both between 60°F(16°C) and 90°F(32°C). Compartments with “SERVICE” Flashing Condenser Air Flow a.
  • Page 123 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION H. Warm Temperatures in Both No Power to Unit Check power to unit, plug unit in or switch Compartments without supply circuit breaker ON. “SERVICE”...

  • Page 124: No Ice, "Ice" Displayed On Lcd, But Not Flashing

    Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION K. Product Temperature 10° or Compartment Thermistor Misread Check resistance of compartment thermistor More Colder than Displayed for 30,000 to 33,000 ohms at 32°F. Replace Temperature if defective.

  • Page 125: Icemaker Produces Hollow Cubes

    Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION (Continued) Icemaker System Fault Pressing ICE key to OFF, then to ON to bypass 45 minute dwell. Then, depress ice- N. No Ice, "ICE" Displayed on maker switch &...

  • Page 126: Water In Ice Bucket / Clump Of Ice In Ice Bucket

    Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION S. Water in Ice Bucket / Clump Icemaker Not Level Check level of icemaker, level if needed of Ice in Ice Bucket High Fill Adjustment on Icemaker Check for 100-110 cc.

  • Page 127: Door Or Drawers Not Able To Close Completely

    Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION V. Lights Stay ON when Door Door or Drawer Ajar &/or Drawers are Closed - (May be Accompanied by a. Food product obstruction a.
  • Page 128 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION Warm Freezer Temp. in No Power to Unit Check power to unit, plug unit in or switch BF/I-2 without “SERVICE” supply circuit breaker ON. Flashing Unit Switched OFF Check for “OFF”...
  • Page 129 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION (Continued) Evaporator Fan Fault Warm Freezer Temp. in a. Fan blade obstructed or out of position a. Move obstruction or reposition blade. BF/I-2 without “SERVICE”...
  • Page 130 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION Warm Refrigerator Temp. No Power to Unit Check power to unit, plug unit in or switch in Both Drawers of BR-2 supply circuit breaker ON. without “SERVICE”...

  • Page 131: Dd. Warm Or Normal Freezer Temp. In Bf/I-2 With "Ee" Displayed And "Service" Flashing

    Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION (Continued) Evaporator Fan Fault Warm Refrigerator Temp. a. Fan blade obstructed or out of position a. Move obstruction or reposition blade. in Both Drawers of BR-2 b.

  • Page 132: Ff. Warm Or Normal Temp's In Bf/I-2 Or Br-2 With "E0" Or "E3" Displayed

    Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION Warm or Normal Refrigerator Compartment Thermistor Check refrigerator compartment thermistor Refrigerator Temp’s in Both Disconnected or Shorted electrical connections from thermistor to P1 Drawers of BR-2 with "EE"...
  • Page 133 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION No Ice in BFI-2, "ICE" is Unit Has Not Run Long Enough Freezer must be 17°F for icemaker to oper- Displayed on LCD ate, approximately 24 hours after unit instal- lation.

  • Page 134: Mm. Icemaker In Bfi-2 Produces Hollow Cubes

    Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION Too Much Ice in BFI-2 Ice Level Arm/Linkage Bent or Broken Inspect ice level arm, shut-off arm and link- age. Replace defective parts. Icemaker Faulty With the ice level arm in the UP/OFF posi- tion, manually start icemaker by rotating the...

  • Page 135: Qq. No Lighting

    Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- PROBLEM POSSIBLE CAUSE TEST / ACTION Membrane Switch on Control Cable Disconnected or Check control cable from control panel to Control Board Malfunction Defective display board. Check all pins on Methode Connector at back air duct.

  • Page 136: Tt. Door Or Drawers Uneven

    Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- PROBLEM POSSIBLE CAUSE TEST / ACTION Door or Drawers Uneven Improper Drawer Panel Installation The doors and drawers are non-adjustable. Instead, the door and/or drawer panels must be adjusted if there is an alignment problem. Refer to the Installation Manual and/or installation video for panel installation and adjustment.
  • Page 137 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- SEALED SYSTEM TROUBLESHOOTING / DIAGNOSTICS TABLES Before tapping the sealed system to check pressures, see the General Troubleshooting Guide which begins on page 9-2. Take note of problems “A” through “D”, “AA” and “BB” in the General Troubleshooting Guide, and be sure to reference the “Pointers”...
  • Page 138 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- EVAPORATOR TEMPERATURE / SEALED SYSTEM LOW-SIDE PRESSURE CORRELATION NOTE: The temperature/pressure table at right Temp °F Pressure is for reference only. A unit's temperature/pres- sure correlation may differ from those listed due 10”...
  • Page 139 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- TALL UNIT MEMBRANE SWITCH / RIBBON CABLE TEST If the integrity of a Tall Unit control panel assembly is suspect, continuity tests should be performed at the membrane switch ribbon cable terminal housing.
  • Page 140 Integrated ( 2) Series Integrated ( 2) Series Troubleshooting Guides 700- 700- BASE UNIT MEMBRANE SWITCH / RIBBON CABLE TEST If the integrity of a Base Unit control panel assembly is suspect, continuity tests should be performed at the mem- brane switch ribbon cable terminal housing.
  • Page 141 Integrated ( 2) Series Integrated ( 2) Series 700- Troubleshooting Guides 700- TALL UNIT DOOR HINGE OPERATION TEST PROCEDURES AND CORRECTIONS 1. If the door of a 700-2 tall unit will not close properly, first check for obstructions. 2. If there are no obstructions, open the door approximately 1" and let it go to see if it closes on its own. Repeat this three times.
  • Page 142 Integrated ( 2) Series Integrated ( 2) Series Technical Data 700- 700- Model 700TC/I-2 REFRIGERATOR FREEZER CHARGE (R-134a Refrigerant) 5.5 oz. 9 oz. NOTE: Always check serial tag for exact charge NORMAL OPERATING PRESSURES Low Side 5 psi to 30 psi 4”...
  • Page 143 Integrated ( 2) Series Integrated ( 2) Series 700- Technical Data 700- Model 700TR-2 REFRIG. (Lower) REFRIG. (Upper) CHARGE (R-134a Refrigerant) 5 oz. 5.5 oz. NOTE: Always check serial tag for exact charge NORMAL OPERATING PRESSURES Low Side 5 psi to 30 psi 5 psi to 30 psi High Side 90 psi to 110 psi...
  • Page 144 Integrated ( 2) Series Integrated ( 2) Series Technical Data 700- 700- Model 700TF/I-2 FREEZER CHARGE (R-134a Refrigerant) 9 oz. NOTE: Always check serial tag for exact charge NORMAL OPERATING PRESSURES Low Side 7” vacuum to 7 psi High Side 90 psi to 120 psi COMPRESSOR NOTE:...
  • Page 145 Integrated ( 2) Series Integrated ( 2) Series 700- Technical Data 700- Model 700TF/I-2V FREEZER CHARGE (R-134a Refrigerant) 9.5 oz. NOTE: Always check serial tag for exact charge NORMAL OPERATING PRESSURES Low Side (at 4000 RPM / Max Speed) 7” vacuum to 3 psi High Side (at 4000 RPM / Max Speed) 90 psi to 120 psi COMPRESSOR...
  • Page 146 Integrated ( 2) Series Integrated ( 2) Series Technical Data 700- 700- Model 700BR-2 REFRIGERATOR CHARGE (R-134a Refrigerant) 6 oz. NOTE: Always check serial tag for exact charge NORMAL OPERATING PRESSURES Low Side 10 psi to 20 psi High Side 90 psi to 120 psi COMPRESSOR NOTE:...
  • Page 147 Integrated ( 2) Series Integrated ( 2) Series 700- Technical Data 700- Model 700BF/I-2 FREEZER CHARGE (R-134a Refrigerant) 6 oz. NOTE: Always check serial tag for exact charge NORMAL OPERATING PRESSURES Low Side 3” vacuum to 2 psi High Side 90 psi to 120 psi COMPRESSOR NOTE:...
  • Page 148 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- SECTION 10 WIRING DIAGRAMS AND SCHEMATICS NOTE: Due to our Continuous Improvement Program, it is recommended to always use the wiring diagram & schematic supplied with the unit, located in an envelope in the compressor area.
  • Page 149 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- WIRING DIAGRAM -This wiring information is provided for use by qualified MODEL: 700TC/I-2 service personnel only. -Disconnect appliance from electrical supply before beginning service. -Be sure all grounding devices are connected when (Prior to Serial #1755730) service is complete.
  • Page 150 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- WIRING SCHEMATIC -This wiring information is provided for use by qualified service personnel only. -Disconnect appliance from electrical supply before MODEL: 700 TC/I-2 beginning service. -Be sure all grounding devices are connected when service is complete.
  • Page 151 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- WIRING DIAGRAM -This wiring information is provided for use by qualified MODEL: 700TC/I-2 service personnel only. -Disconnect appliance from electrical supply before beginning service. -Be sure all grounding devices are connected when (Starting With Serial #1755730) service is complete.
  • Page 152 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- WIRING SCHEMATIC -This wiring information is provided for use by qualified service personnel only. -Disconnect appliance from electrical supply before MODEL: 700 TC/I-2 beginning service. -Be sure all grounding devices are connected when service is complete.
  • Page 153 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- WIRING DIAGRAM -This wiring information is provided for use by qualified MODEL: 700TR-2 service personnel only. -Disconnect appliance from electrical supply before beginning service. -Be sure all grounding devices are connected when (Prior to Serial #1755266) service is complete.
  • Page 154 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- WIRING SCHEMATIC -This wiring information is provided for use by qualified service personnel only. -Disconnect appliance from electrical supply before MODEL: 700TR-2 beginning service. -Be sure all grounding devices are connected when service is complete.
  • Page 155 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- WIRING DIAGRAM -This wiring information is provided for use by qualified MODEL: 700TR-2 service personnel only. -Disconnect appliance from electrical supply before beginning service. -Be sure all grounding devices are connected when (Starting with Serial #1755266) service is complete.
  • Page 156 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- WIRING SCHEMATIC -This wiring information is provided for use by qualified service personnel only. -Disconnect appliance from electrical supply before MODEL: 700TR-2 beginning service. -Be sure all grounding devices are connected when service is complete.
  • Page 157 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- WIRING DIAGRAM -This wiring information is provided for use by qualified MODEL: 700 TF/I-2 service personnel only. -Disconnect appliance from electrical supply before beginning service. (Prior to Serial #1752891) -Be sure all grounding devices are connected when service is complete.
  • Page 158 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- WIRING SCHEMATIC -This wiring information is provided for use by qualified MODEL: 700 TF/I-2 service personnel only. -Disconnect appliance from electrical supply before beginning service. -Be sure all grounding devices are connected when (Prior to Serial #1752891) service is complete.
  • Page 159 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- WIRING DIAGRAM MODEL: 700 TF/I-2 -This wiring information is provided for use by qualified service personnel only. -Disconnect appliance from electrical supply before beginning service. (From Serial #1752891 to Serial #1898164) -Be sure all grounding devices are connected when service is complete.
  • Page 160 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- WIRING SCHEMATIC -This wiring information is provided for use by qualified MODEL: 700 TF/I-2 service personnel only. -Disconnect appliance from electrical supply before beginning service. -Be sure all grounding devices are connected when (From Serial #1752891 to Serial #1898164) service is complete.
  • Page 161 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- WIRING DIAGRAM MODEL: 700 TF/I-2V -This wiring information is provided for use by qualified service personnel only. -Disconnect appliance from electrical supply before beginning service. (Starting with Serial #1898164) -Be sure all grounding devices are connected when service is complete.
  • Page 162 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- WIRING SCHEMATIC MODEL: 700 TF/I-2V -This wiring information is provided for use by qualified service personnel only. -Disconnect appliance from electrical supply before beginning service. (Starting with Serial #1898164) -Be sure all grounding devices are connected when service is complete.
  • Page 163 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- WIRING DIAGRAM MODEL 700BR-2 REFRIGERATOR LIGHT(UPPER) THERMISTOR DRAWER CONTROLS DOOR SWITCH WHITE ORANGE LT. BLUE W/RED REFRIGERATOR LT. BLUE W/RED LIGHT(LOWER) THERMISTOR BAFFLE CONTROL YEL/WH YEL/RED YEL/BK DOOR YELLOW SWITCH WHITE...
  • Page 164 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- WIRING SCHEMATIC -This wiring information is provided for use by qualified service personnel only. -Disconnect appliance from electrical supply before beginning service. MODEL 700BR-2 -Be sure all grounding devices are connected when service is complete.
  • Page 165 Integrated ( 2) Series Integrated ( 2) Series General Information 700- 700- WIRING DIAGRAM MODEL 700BF/I-2 WHITE ORANGE FREEZER GREEN LIGHT(UPPER) THERMISTOR DRAWER CONTROLS DOOR SWITCH WHITE ORANGE ICEMAKER FREEZER LIGHT(LOWER) SWITCH PINK PINK ICEMAKER FUSE ICEMAKER PINK PINK (OPTIONAL) WHITE WHITE GREEN...
  • Page 166 Integrated ( 2) Series Integrated ( 2) Series 700- General Information 700- WIRING SCHEMATIC -This wiring information is provided for use by qualified service personnel only. MODEL 700BF/I-2 -Disconnect appliance from electrical supply before beginning service. -Be sure all grounding devices are connected when service is complete.
