Planning Information

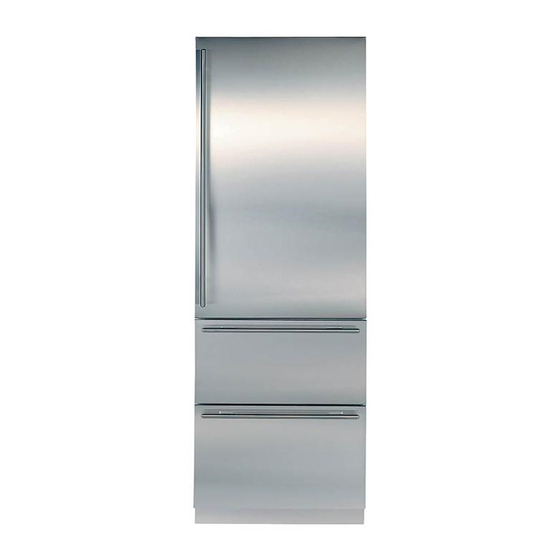

Model 700TC(I)

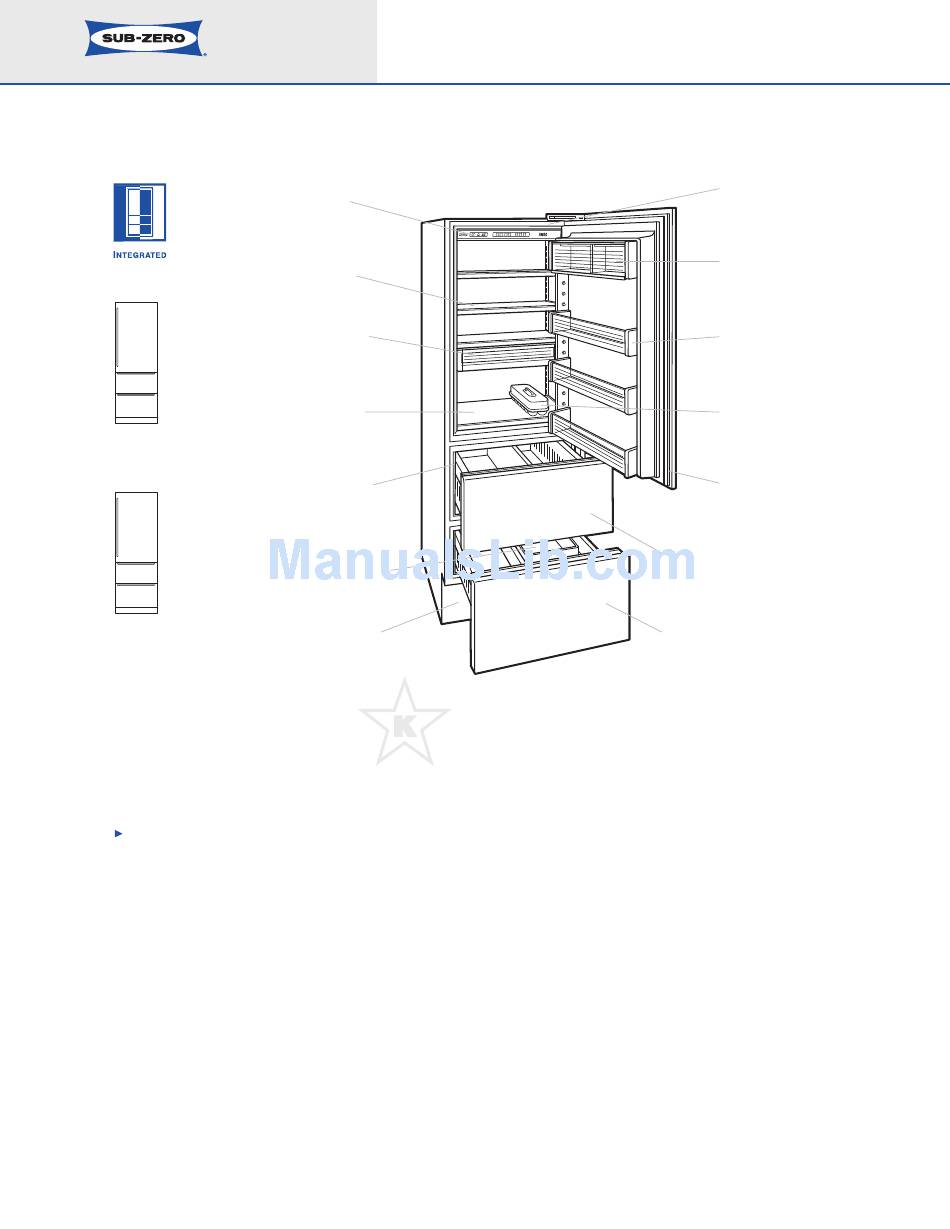

Over-and-Under Refrigerator | Freezer
Electronic digital
control panel
Adjustable spill-proof
glass shelves
Adjustable glass
shelf and deli drawer
Stationary shelf
Model 700TC
Location of serial
number
Automatic ice maker
(Model 700TCI)
Model 700TCI
Front venting with
with Ice Maker
removable kickplate
The Sub-Zero Model 700TC and
700TCI integrated design accepts custom
wood or stainless steel door and drawer
panels. Stainless steel panels and handles
are available as sales accessories in three
finishes—classic, platinum and carbon.
Dimensions in parentheses are in
millimeters unless otherwise specified.
10/05
With the installation of a harness kit, these appliances are Star-K
compliant to meet strict religious regulations in conjunction with
specific instructions found on star-k.org. You may purchase this
harness kit through your Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of our website, subzero.com.
F
or those very small galley kitchens where you
cannot fit a full size Built-In unit, I would beg anyone to
say they do not have room for this delightful combina-
tion model. The refrigerator door space gives you
10.2 cu ft (289 L) of storage with a temperature range
of 34˚F (1˚C) to 45˚F (7˚C), while the two freezer
drawers give you 5.1 cu ft (144 L) of storage in an
environment where the temperature can be set
between -5˚F (-20˚C) and +5˚F (-15˚C).
You also have the option of ordering this model with
or without an ice maker.
You must specify the door swing when placing an
order.
Seamless
molding
Adjustable dairy
compartment
Adjustable door
shelves
Egg container
Magnetic door /
drawer gaskets
Upper freezer
storage drawer
Lower freezer
storage drawer
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sub-Zero 700TC(I)
Summary of Contents for Sub-Zero 700TC(I)
- Page 1 You may purchase this harness kit through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com. or those very small galley kitchens where you...
- Page 2 Planning Information Model 700TC(I) F E A T U R E S Tall combination unit with upper cabinet Door alarm will let you know with an audible refrigerator and freezer storage drawers beeping if a door or drawer is left open Model 700TCI has automatic ice maker Adjustable spill-proof glass shelves Integrated design for "point-of-use"...
- Page 3 Dozen egg container with lid Dual installation heater kit (TTDUAL or BBDUAL) Accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the Locator section of our website, subzero.com. Dimensions in parentheses are in millimeters unless otherwise specified.
-
Page 4: Top View
Planning Information Model 700TC(I) I N S T A L L A T I O N S P E C I F I C A T I O N S TOP VIEW TOP VIEW 6" ANTI-TIP (152) " ANTI-TIP BRACKET (38) BRACKET "... - Page 5 (4200880) is available from your dimensions and installation specifics. Sub-Zero dealer. To obtain local dealer informa- tion, visit the Locator section of our website, The depth of Model 700TC(I) is 24" (610) subzero.com.
- Page 6 Planning Information Model 700TC(I) I N T E G R A T I N G C A B I N E T R Y C A B I N E T R Y A P P L I C A T I O N S Integrated refrigeration is compatible with virtually any style and look of cabinetry.
- Page 7 F R A M E D C A B I N E T R Y on door openings. IMPORTANT NOTE: The depth of each Integrated unit is 24" (610) from the front of the unit to its back. You must SUB-ZERO (610) UNIT TO WALL...
- Page 8 F R A M E D C A B I N E T R Y – B E A D E D I N S E T A P P L I C A T I O N The illustration shows an Integrated tall unit installed within a framed cabinetry beaded inset application. 24" (610) SUB-ZERO TO WALL IMPORTANT NOTE: Dimensions are based on a " (3) CABINET DOOR UNIT reveal.
- Page 9 Planning Information Model 700TC(I) F R A M E L E S S C A B I N E T R Y A P P L I C A T I O N S The illustration below shows a hypothetical installation of a Integrated tall unit within frameless cabinetry.
- Page 10 " (6) is maintained, the door panels may tall units side by side. cause damage to the Sub-Zero unit when the door is IMPORTANT NOTE: Dimensions are open at the maximum 105˚ door stop. You should use based on a "...
- Page 11 BBDUAL for two base units or a base unit and a tall CABINETS unit installed side by side. These optional compo- nents are available through your Sub-Zero dealer. To (635) obtain local dealer information, visit the Locator section of our website, subzero.com.
-
Page 12: Top Hinge
CANNOT EXTEND BEYOND THE FRONT OF THIS PLANE DECORATIVE VALANCE REMOVABLE MOLDING BY SUB-ZERO (1153) BOTTOM DOOR TOP HINGE PANEL (2032) FLOOR FINISHED HEIGHT OF 80" (2032) IS TO TOP OF SUB-ZERO MOLDING Dimensions in parentheses are in millimeters unless otherwise specified. - Page 13 Planning Information Model 700TC(I) T O E K I C K C L E A R A N C E The toe kick clearance can vary with the height of the lower drawer panel; the maximum panel height is 16 "...
- Page 14 SUB-ZERO DOOR (610) TO BACK OF UNIT LINE OF INTERFERENCE* SIDE MOLDING AND INSTALLATION HARDWARE PROVIDED BY SUB-ZERO FLUSH FURNITURE FINISH Door closed – full scale (top view) *If the panel is thicker than " (19), it is recommended that you utilize the built-in 90˚...
- Page 15 OF UNIT LINE OF INTERFERENCE* SIDE MOLDING AND INSTALLATION HARDWARE PROVIDED BY SUB-ZERO Door closed – full scale (top view) *If the panel is thicker than " (19), it is recommended that you utilize the built-in 90˚ door stop to prevent damage to the panel and face frame.
