Electronic Control System

Temperature Log Event Indicators

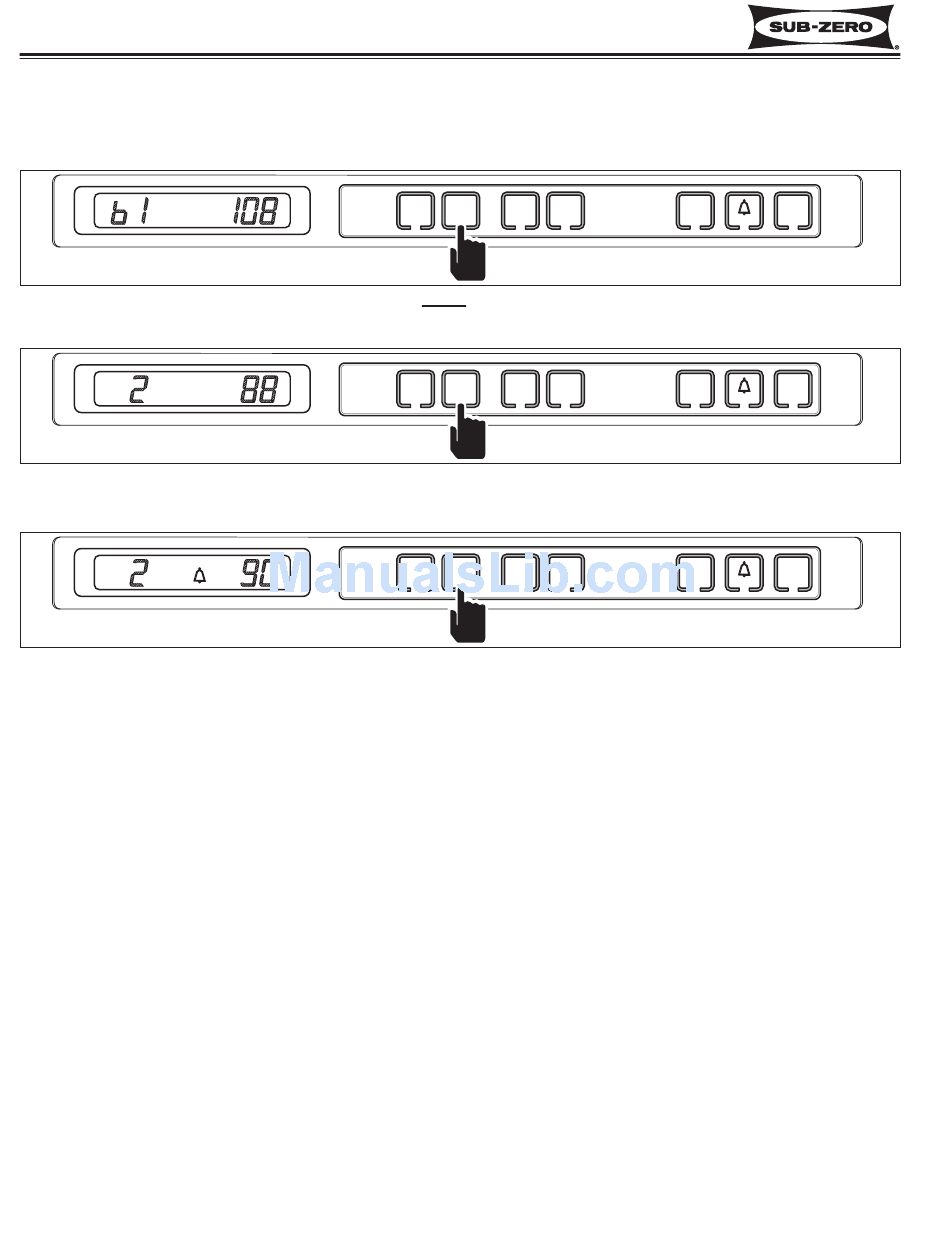

The diagrams below illustrate possible event indicators that may be observed while in Temperature Log Recall
Mode. (See Figures 3-50 through 3-52 and Temperature Log Index Chart on next page))
Figure 3-52. "bl" Indicates Index is "blank" - No Temperature has Been Logged Yet
(Only possible within first 14 days of unit operation, or after new control board is installed during service)
SERVICE
Figure 3-53. SERVICE Illuminates - Indicates Unit was switched OFF During that Index Period by Pressing
Figure 3-54. Bell Illuminates - Indicates Power Failure / Interruption During that Index Period
NOTE: If the unit was in Showroom Mode during any of the 168 indexes, average temperatures will continue to be
logged. No event indicator will appear with these temperatures.
NOTE: If the unit was switched OFF by pressing the UNIT ON/OFF key during any of the 168 indexes and there
was still power supplied to the control board, the average temperatures will continue to be logged. This means tem-
peratures would be expected to rise and the SERVICE icon would be present in all indexes in which the unit was
OFF.
NOTE: Temperature Log Recall Mode will end 20 seconds after the last key stroke.
#3758424 - Revision B - December, 2005
Integrated
FREEZER
COLDER WARMER COLDER
FREEZER
COLDER WARMER COLDER
UNIT ON/OFF Key
FREEZER
COLDER WARMER COLDER
3-24
3 Series
(700- BASE)
ICE
REFRIGERATOR
WARMER
ON/OFF
ICE
REFRIGERATOR
WARMER
ON/OFF
ICE
REFRIGERATOR
WARMER
ON/OFF
UNIT
ON/OFF
ON/OFF
UNIT
ON/OFF
ON/OFF
UNIT
ON/OFF
ON/OFF
