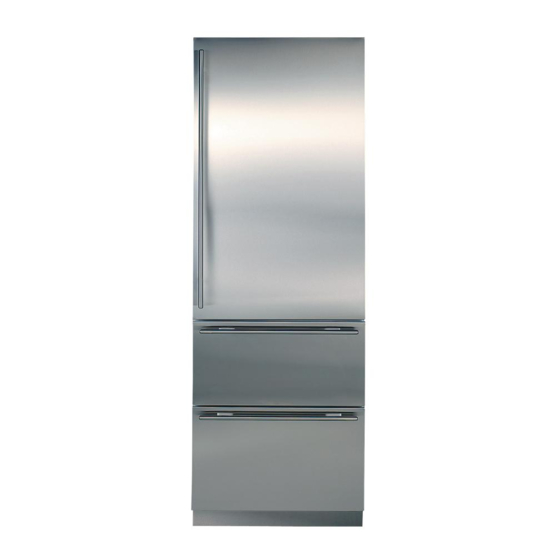

Sub-Zero 700 Service Manual

Hide thumbs Also See for 700:

Advertisement

Quick Links

Download this manual
subzero.com
800.222.7820
700
Service Manual
Component Access & Removal
51

Advertisement

loading
Need help?

Need help?

Do you have a question about the 700 and is the answer not in the manual?

Questions and answers

Related Manuals for Sub-Zero 700

Summary of Contents for Sub-Zero 700

  • Page 1 subzero.com 800.222.7820 Service Manual Component Access & Removal...

  • Page 2: Component Removal

    INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) COMPONENT REMOVAL This section explains how to remove components from 736 Series Units starting with serial # 2970000. If different models have similar adjusting, accessing and/or removal procedures, they are grouped together under the appropriate heading.

  • Page 3: Exterior Cosmetic And Mechanical Components

    INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) EXTERIOR COSMETIC AND MECHANICAL COMPONENTS Kickplate/Grille Removal (All Models) The kickplate/grille is attached by four screws passing through the kickplate into adjustable kickplate brackets. NOTE: Because drawer panels may extend down in front of the kickplate/grille, it may be necessary to...
  • Page 4 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Drawer Assembly Removal (All Models) There are inverted channels on both sides of the draw- er tubs which rest on telescoping drawer slide assem- Hole in Channel blies.
  • Page 5 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Door Assembly Removal (All Models) Remove two inner-most screws at top and bottom The door assembly is held in place with Allen-head hinge with door open. Remove two outer-most screws that pass down through the arm of the top hinge screws at bottom hinge...

  • Page 6: Interior Cosmetic, Mechanical And Elec- Trical Components

    INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) INTERIOR COSMETIC, MECHANICAL AND ELEC- TRICAL COMPONENTS Door Shelf Door Shelf and Dairy Compartment Adjustment / Removal (All Models) There are “L” shaped grooves in the end caps of the “L”...
  • Page 7 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Upper Light Diffuser Removal (All Models) “T” Slots The side frames of the upper light diffuser have four inverted “T” shaped slots (two each side) which fit over pegs protruding from the side walls of the upper com- partment.
  • Page 8 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Control Board Removal (All Models) The control board is held in position by two sets of tabs behind the left side of the control panel. The two for- ward tabs position the LCD in the control panel window, Control Panel while the other two tabs secure the middle of the control...
  • Page 9 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Upper Evaporator Cover / Air Duct Removal (All Models) The bottom of the upper evaporator cover sets into a channel at the bottom of the upper compartment. At the top, screws hold the evaporator cover to the evapo- rator fan shroud.
  • Page 10 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Upper Compartment Evaporator Fan Assembly Removal (All Models) The upper evaporator fan assembly sets in a pocket in the ceiling of the upper compartment and is secured to the ceiling with screws.
  • Page 11 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Drawer Closer Assembly Removal (All Models) Drawer Closer Assy The drawer closer assemblies are located on the right and left side walls, towards the front of the two drawer areas.
  • Page 12 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Icemaker Assembly Removal Shut-off Arm (736TFI, 736TCI) The icemaker sits on a support plate with screws pass- Connecting Rod ing up through the plate into the icemaker bottom. P- clamps fitting around the back rod of the ice level arm and screws secured the ice level arm to the plate.
  • Page 13 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Lower Evaporator Fan Assembly Removal (Models 736TR) Evap Fan Assy The lower evaporator fan assembly is held in place by bolts passing through access holes in the evaporator fan shroud, then through the top flange of the evapora- tor cover and into well-nuts in the fan bracket.
  • Page 14 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Lower Evaporator Cover Removal (Model 736TFI) The lower evaporator cover is held in place with screws. At the left side the screws are hidden by the heat-exchanger cover;...
  • Page 15 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Lower Evaporator Fan Assembly Removal Evaporator Fan Assembly (736TCI) Electrical Connections The evaporator fan assembly is attached to the upper back wall of the lower compartment with screws. To remove the fan assembly, first remove drawers, left side drawer slides, heat exchanger cover, evaporator cover and the fan shroud, then...
  • Page 16 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Lower Thermistor Removals (736TCI) Compartment Thermistor A screw and P-clamp is used to secure the compart- ment thermistor to the rear wall, slightly above and to the right of the evaporator.
  • Page 17 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) COMPRESSOR AREA ELECTRICAL AND MECHANI- CAL COMPONENTS Screw Icemaker Water Valve Removal (736TFI & 736TCI) The icemaker water valve assembly is located at the right side of the compressor area next to the condenser, and is attached to the valve bracket with screws.
  • Page 18 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Condenser Fan Assembly Removal Screw The condenser fan shroud sets on top of two pegs pro- truding from the unit tray and two screws at the top of the shroud secure it to the condenser.

  • Page 19: Sealed System Components

    INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) SEALED SYSTEM COMPONENTS Upper Refrigerator Compartment Evaporator Removal (736TR, 736TCI) 1" The upper evaporator is attached to the back wall with screws. NOTE: Before attempting to remove the evaporator, 2"...
  • Page 20 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) High-Side Filter-Drier Removal Screw The high-side filter-driers are located in the center of the unit tray, behind the condenser and are attached to the drier bracket with a cable tie. NOTE: Before attempting to remove a filter drier, evac- uate the refrigerant from the sealed system.
  • Page 21 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Compressor Removal The compressors have four rubber compressor grom- mets inserted into their base. Cylindrical metal spacers are placed over threaded studs that are pressed into the unit tray.
  • Page 22 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Condenser Removal Screw The condenser is secured to the unit tray by four rivets that pass up through the unit tray into the condenser side brackets.
  • Page 23 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Upper Compartment Heat Exchanger Removal 1" The upper compartment heat exchanger passes down through a hole in the back left corner of the mullion. The heat exchanger then passes down through the 2"...
  • Page 24 INTEGRA SERIES INTEGRA SERIES Component Removal (736 T (736 T all SWS #2970000) all SWS #2970000) Lower Compartment Heat Exchanger Removal The lower compartment heat exchanger is behind the switch enclosure and passes down through a hole in the back right corner of the lower compartment floor. Cut here NOTE: Before attempting to remove a heat exchanger,...
