Sub-Zero 700-3 BASE Technical & Service Manual page 69

Integrated
Lower Air Duct Removal (700BC/I-3 Only)
Screws pass though the lower air duct into screw grom-
met/stand-offs and a grounding bracket to secure the
duct to the back wall.
NOTE: Both lower drawer slides must be removed first.
To remove the lower air duct (See Figure 7-22):
1. Extract all lower air duct mounting screws.
2. Pull duct forward slightly.
3. Pull icemaker wire leads from key-hole slot at right.
4. Disconnect light switch and icemaker switch electri-
cal leads, and pull duct out.
Air Baffle Control Assembly Removal
(700BC/I-3 Only)
The air baffle control sets in a recessed area of the baf-
fle mount and a piece of tape holds the baffle control in
place. Holes in the baffle mount fit over screw grom-
met/stand-offs in the back wall and when the lower air
duct is installed, it captivates the air baffle assembly.
To remove the air baffle control asembly (See Figure 7-
22):
1. Remove lower air duct.
2. Unplug the wire leads from the baffle control.
3. Pull air baffle control assembly off of screw grom-
met/stand-offs.
Freezer Compartment Thermistor Removal
(700BC/I-3 Only)
The freezer compartment thermistor is secured to the
back wall with a screw.
To remove the freezer compartment thermistor, the
lower air duct will need to be removed first, then (See
Figure 7-22):
1. Extract thermistor mounting screw.
2. Cut thermistor's wire leads six (6) to twelve (12)
inches (152 mm to 305 mm) from the back wall,
then pull thermistor from compartment.
Freezer Light Switch and Icemaker Switch Removal
(700BC/I-3 Only)
To remove the freezer light switch or icemaker switch,
the lower air duct must be removed first. Then, at back
side of air duct, depress tabs on each side of switch
while pushing switch out. (See Figure 7-23)
3 Series
(700- BASE)
7-11
Component Access/Removal
Thermistor
Ground Bracket

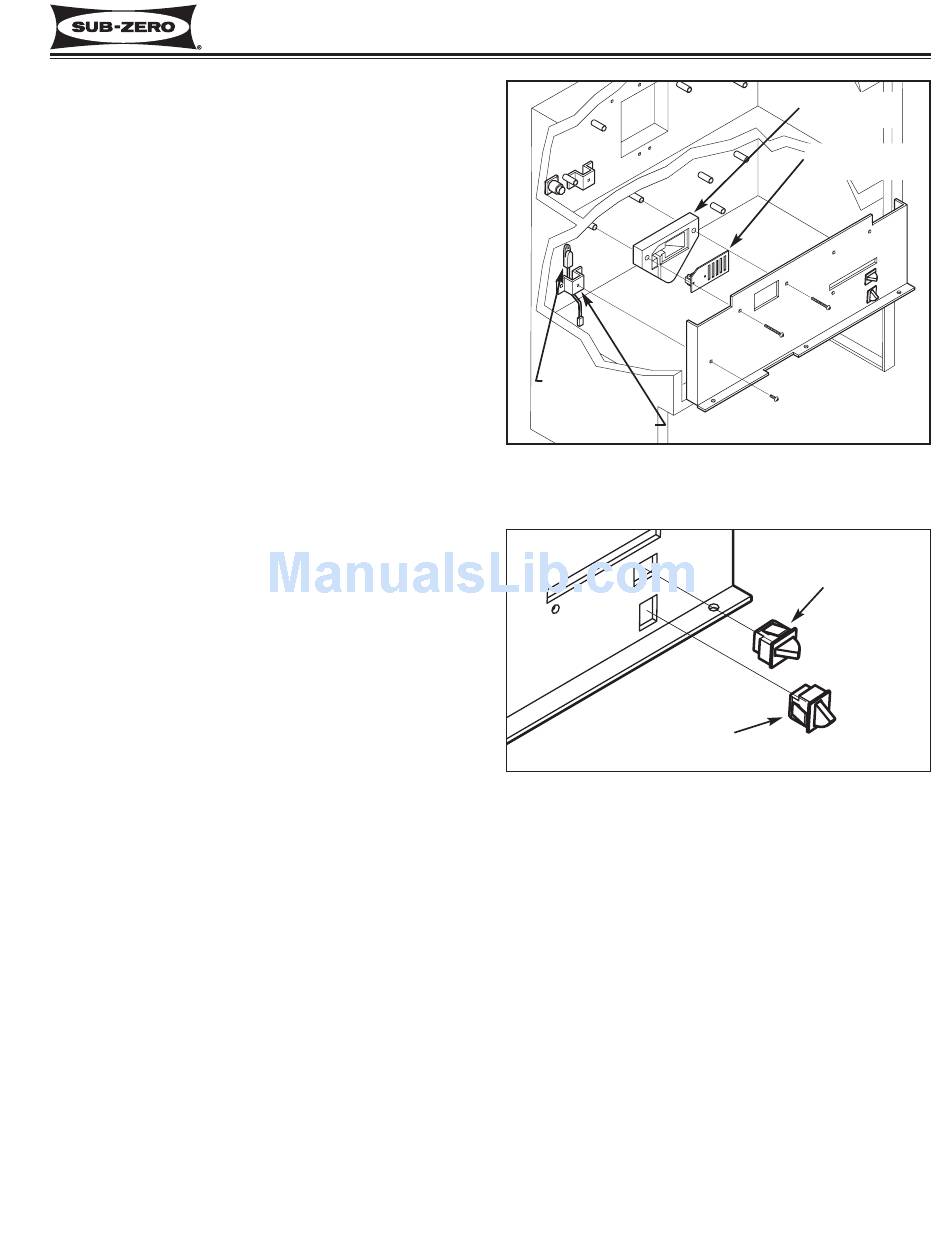

Figure 7-22. 700BC/I-3 Lower Duct, Baffle Control
Assembly and Freezer Compartment Thermistor
c t
D u
A i r
Icemaker Switch
Figure 7-23. 700BC/I-3 Fre Light & IM Switches
#3758424 - Revision B - December, 2005
Baffle Mount
Baffle Control
c t
D u
e r
L o w
Light Switch
