Manual Entry Model Configuration Mode - Sub-Zero 700-3 BASE Technical & Service Manual

Integrated

Manual Entry Model Configuration Mode

Manual Entry Model Configuration Mode allows a Service Technician to verify a main control board in a 700-3 Base
unit was configured correctly, and/or to reconfigure the main control board if a mistake was made during the configu-
ration process.
To initiate Manual Entry Model Configuration Mode the unit must be ON and the bottom drawer open. Now, press
either COLDER key and the UNIT ON/OFF key (See Figure 3-59). Then, Press and hold the drawer ajar alarm bell
ON/OFF key and the UNIT ON/OFF key together for 15 seconds. The unit will now be in Model Configuration Mode,
with the model code of the last configuration displayed (See Figure 3-60 and Model Code Table on previous page).
If needed, toggle through the model codes by pressing WARMER or COLDER keys, until appropriate model code is
displayed (See Figure 3-61 and 3-62). With appropriate model code displayed, press UNIT ON/OFF key to store
model configuration (See Figure 3-63).
SERVICE
ICE

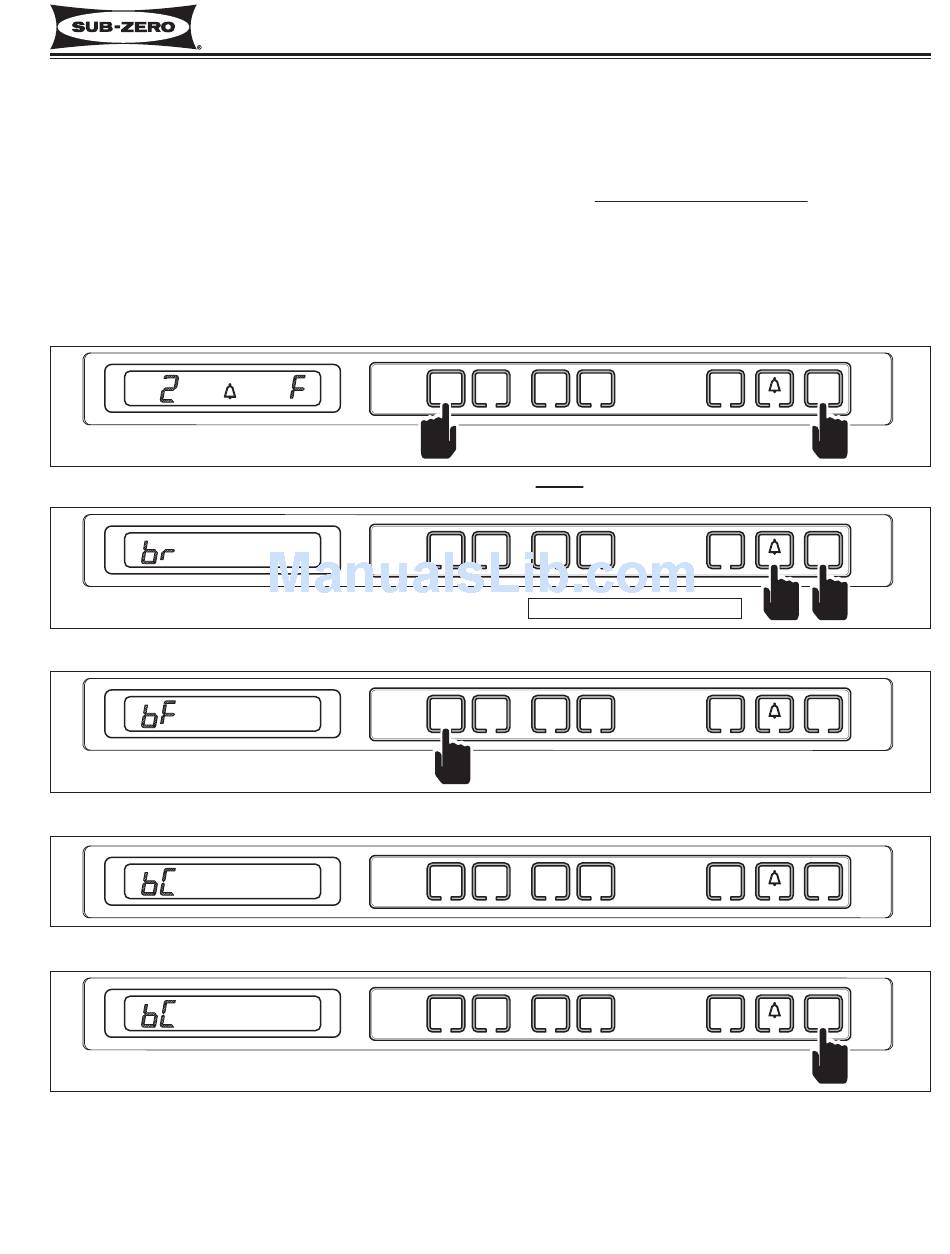

Figure 3-59. Start in Diagnostic Mode - Press and Hold Either COLDER Key, Then UNIT ON/OFF Key
Figure 3-60. Press Alarm and UNIT ON/OFF key to Initiate Manual Entry Model Configuration Mode
Figure 3-61. Press WARMER or COLDER key to Toggle Through Model Codes
Figure 3-63. Press UNIT ON/OFF Key to Store Model Configuration
3
(700- BASE)
OFF
FREEZER
FREEZER
FREEZER
FREEZER
Figure 3-62. Stop When Appropriate Model Code is Displayed
FREEZER
Series
COLDER WARMER COLDER WARMER
COLDER WARMER COLDER WARMER
Press and hold for 15 seconds
COLDER WARMER COLDER WARMER
COLDER WARMER COLDER WARMER
COLDER WARMER COLDER WARMER
3-27
Electronic Control System
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ICE
REFRIGERATOR
ON/OFF
ON/OFF
ICE
REFRIGERATOR
ON/OFF
ON/OFF
#3758424 - Revision B - December, 2005
UNIT
ON/OFF
UNIT
ON/OFF
UNIT
ON/OFF
UNIT
ON/OFF
UNIT
ON/OFF
