Component Access/Removal
Icemaker Water Valve Removal
(700BCI-3, 700BFI-3 Only, Prior to Serial #2421189)
The icemaker water valve assembly is attached to the
valve bracket, located on right side of compressor area.
A screw passing through a key-hole slot in valve
assembly secures the valve to the valve bracket.
NOTE: Before accessing the icemaker water valve,
turn off the water supply to the unit.
To remove the water valve, the kickplate/grill will need
to be removed first. Then, extract the two screws that
secure the unit tray to the unit and slide the tray out
(See Figure 7-33), then (See Figures 7-34 and 7-35).
1. With a wrench, disconnect brass compression fitting
which holds water supply line to water inlet stub.
2. With a Phillips screwdriver, loosen screw that
secures valve assembly to valve bracket.
3. Grab water inlet stub and lift up so head of screw
lines up with large section of key-hole slot.
4. Pull valve assembly forward until screw clears key-
hole slot, then lower assembly down until valve
body clears valve bracket and pull assembly out
from compressor area.
5. Unplug valve electrical leads.
6. Disconnect outlet tube plastic compression fitting
with a wrench, and lift water valve up.
#3758424 - Revision B - December, 2005
Integrated 3
(700-

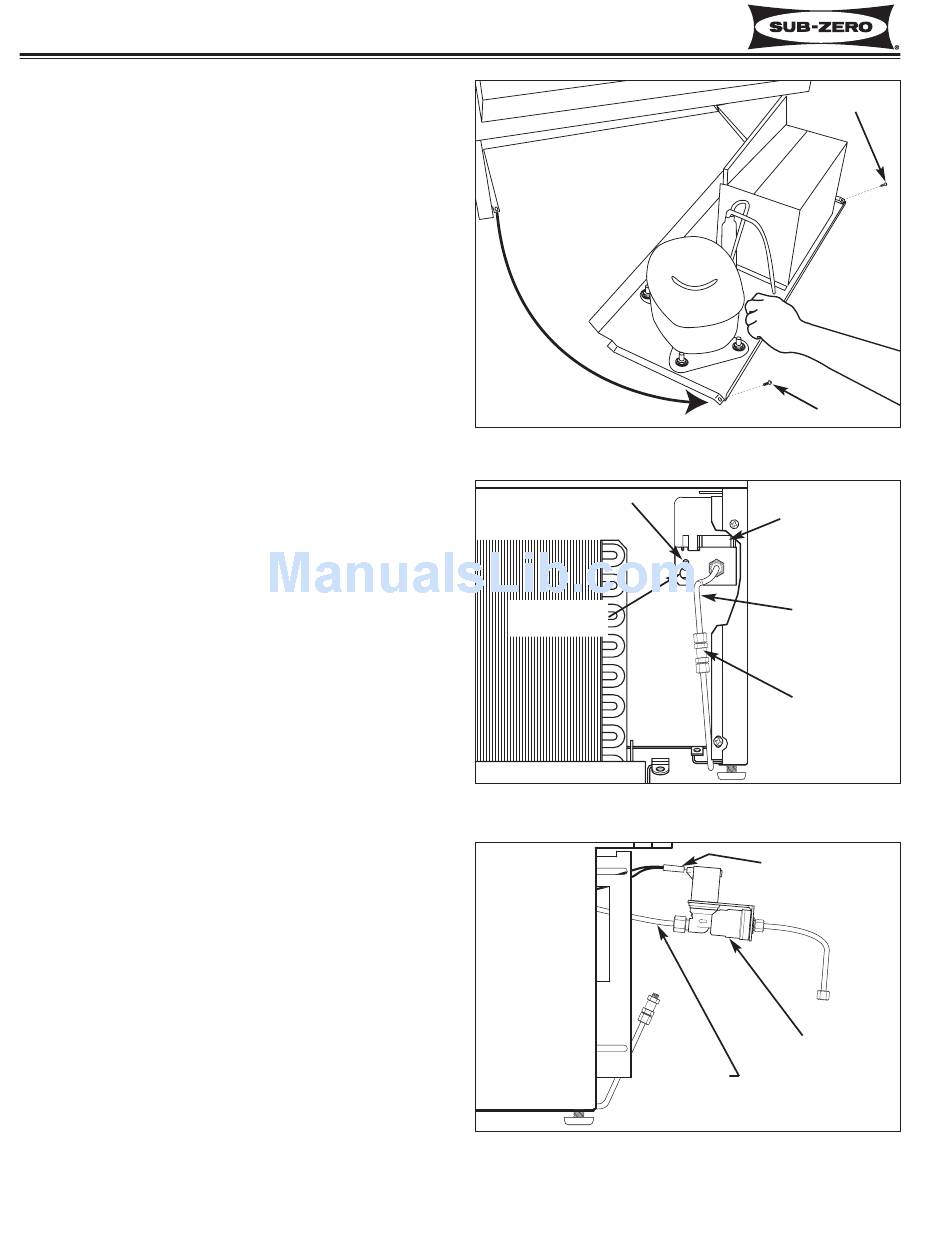

Figure 7-33. Sliding Unit Tray Out
Screw
Key-Hole Slot
Figure 7-34. Water Valve Removal
Figure 7-35. Water Valve Removal
7-16
Series
BASE)
Water Valve
Electrical Leads
Outlet Tube
Screw
Screw
Inlet Stub
Compression
Fittings
Water Valve
