INSTALLATION CONSIDERATIONS

This section covers common installation issues seen by Service Technicians. Improper installation, though not a
valid service issue, has the potential to lead to a call for service. Installation related complaints could include, but
are not limited to: Unit leveling, unit movement, door misalignment, improper door and drawer sealing, internal frost
or condensation, exterior condensation, warm compartment temperatures, etc.
NOTE: If additional installation information is needed, refer to the complete Installation Guide, or contact Sub-Zero
Service Department.
IF UNIT IS UNDER A SOLID SOFFIT AND CLEARANCE BETWEEN SOFFIT AND TOP OF UNIT IS GREATER
THEN 1" (25.4 mm), OR IF UNIT IS NOT UNDER SOLID SOFFIT, UNIT COULD TIP FORWARD UNDER CER-
TAIN LOAD CONDITIONS. FAILURE TO INSTALL ANTI-TIP COMPONENTS AND EXTEND LEVELERS TO
FLOOR ACCORDING TO INSTALLATION MANUAL COULD RESULT IN SERIOUS INJURY OR DEATH.
Anti-Tip Components Installation (All Models)
If anti-tip components (aka wood block / blocking kit)
need be installed, follow these steps:
NOTE: These directions are supplied with each anti-tip
package.
1. Locate and mark two wall studs at back of unit
installation location (See Figure 2-1).
2. Identify and mark proper height to clear unit top.
Space between unit top and bottom of wood block
must NOT be more then 1/4" (6.1 mm) (See Figure
2-1).
3. Using the L-brackets and screws provided, secure
wood block to wall studs, located in step 1, making
sure screws extend 7/8" (22.2 mm) into each wall
stud. The wood block must extend a minimum of 3"
(76.2 mm) over unit (See Figure 2-1).
4. Utilizing front and rear levelers, raise and level unit
until it contacts wood block.
5. Refer to Installation Guide provided with the unit for
any additional information needed.
#3758407 - Revision B - August, 2006
Built-In
Built-In
(600-
(600-
Sub-Zero Unit

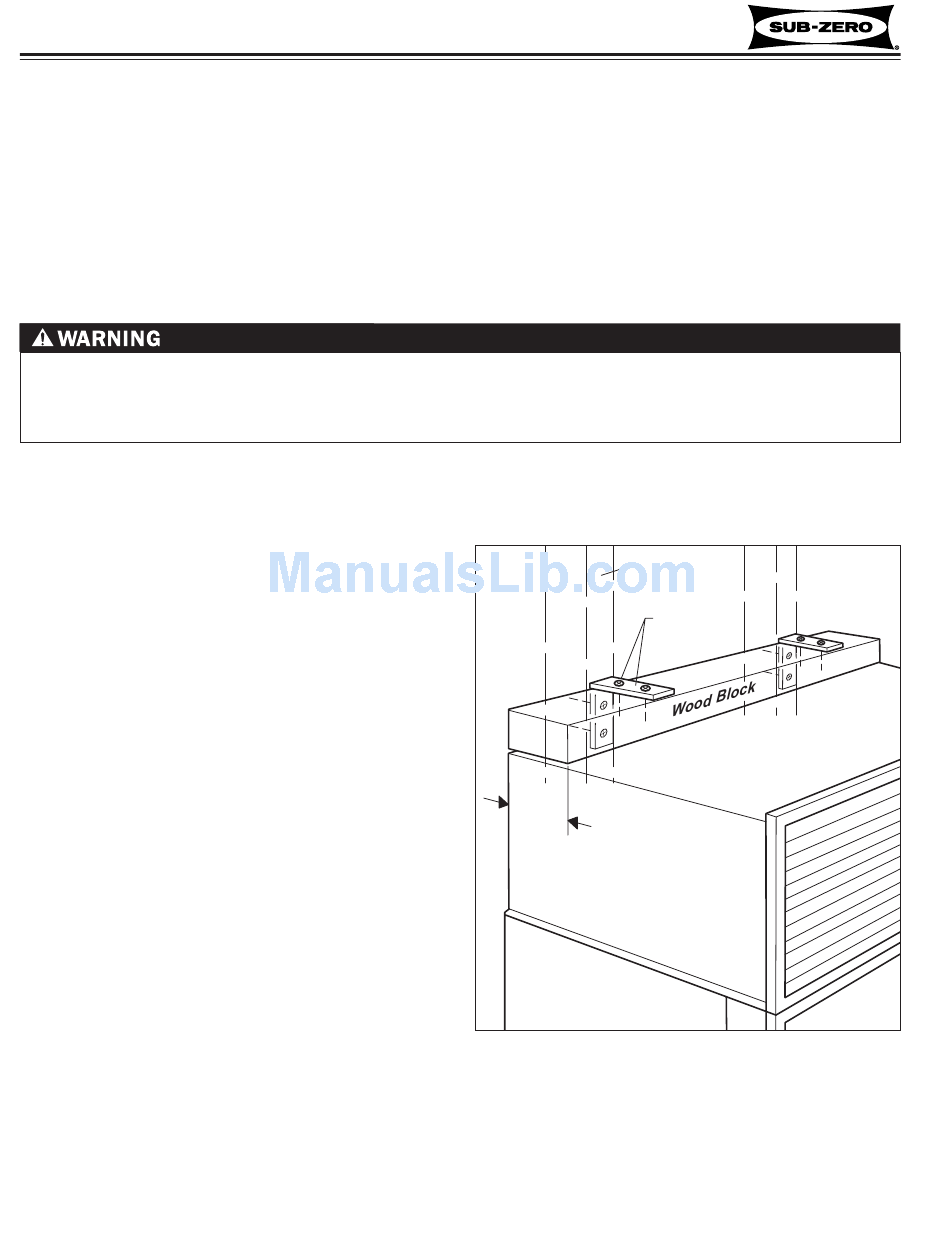

Figure 2-1. Anti-Tip Components
