Sub-Zero 700-3 BASE Technical & Service Manual page 107

Integrated

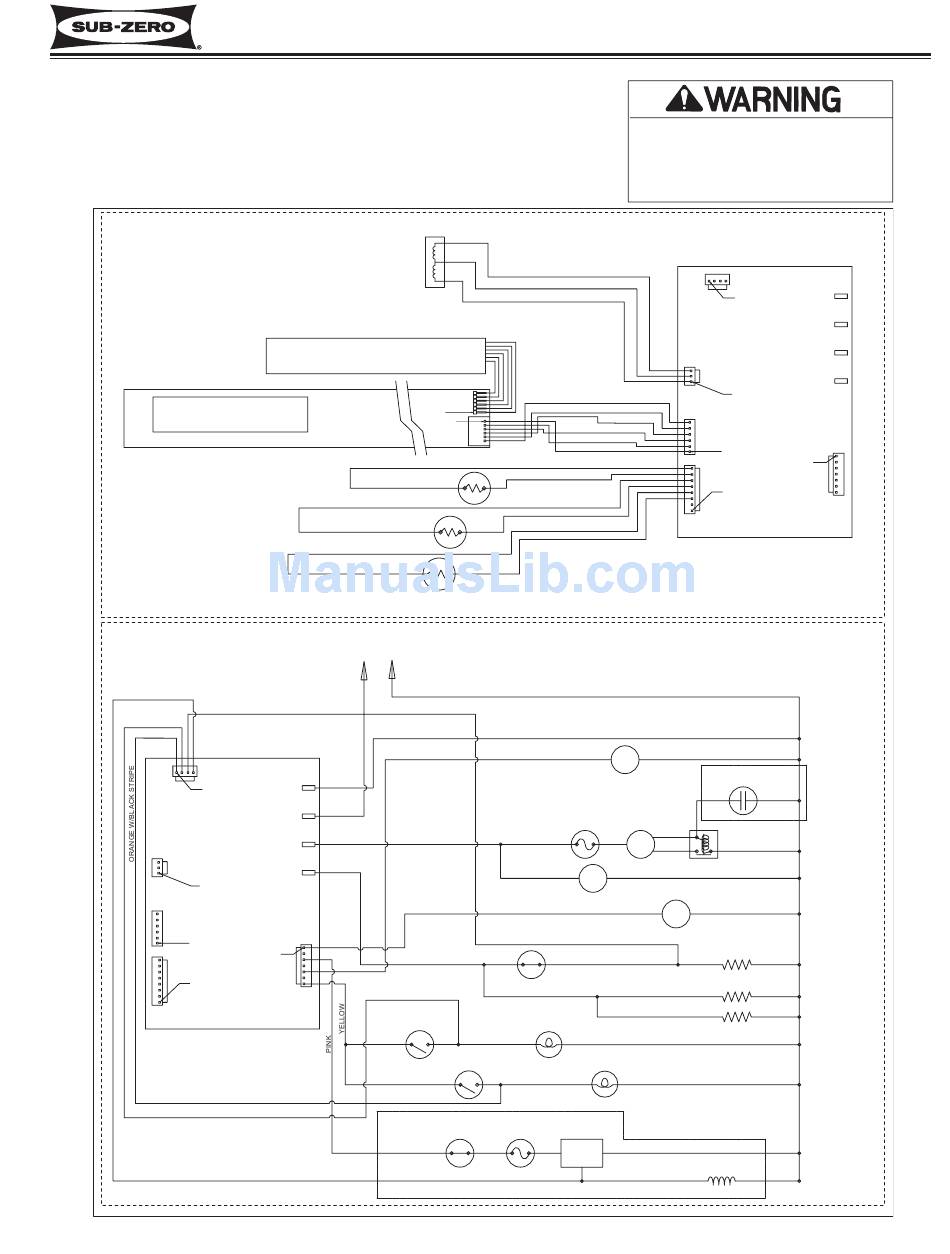

WIRING SCHEMATIC
MODEL 700 BC/BCI-3
(Prior to Serial #2300444)
LOW VOLTAGE SCHEMATIC
DISPLAY
HIGH VOLTAGE SCHEMATIC
TAN
GRAY W/WHITE STRIPE
ORANGE
J2
P4
PIN 1
P3
MAIN BOARD
P1
P2
PIN 1
J6
J4
PIN 1
PIN 1
PIN 1
J5
ORANGE W/BLACK STRIPE
ORANGE
TAN
3 Series
(700- BASE)
REF AIR DUCT
BAFFLE
MEMBRANE KEYPAD
J2
PIN 1
DISPLAY BOARD
PIN 1
J3
THERMISTOR
EVAPORATOR
THERMISTOR LOWER
DRAWER/FREEZER
THERMISTOR UPPER
DRAWER/REFRIGERATOR
115 VOLTS
60 CYCLES
L1 NEUTRAL
WHITE
GRAY
WHITE
BLACK
PURPLE
BLUE
RED
BLUE
ORANGE
J3
REF LIGHT
SWITCH
FRZ LIGHT
SWITCH
ICEMAKER
SWITCH
10-3
Wire Diagrams & Schematics
-This wiring information is provided for use by qualified
service personnel only.
-Disconnect appliance from electrical supply before
beginning service.
-Be sure all grounding devices are connected when
service is complete.
-Failure to observe the above warnings may result in
severe electrical shock.
YELLOW W/WHITE
YELLOW W/BLACK STRIPE
YELLOW W/RED STRIPE
BLUE
ORANGE
YELLOW
RED
WHITE
BLACK
ORANGE W/RED STRIPE
BLUE W/RED STRIPE
BLUE W/BLACK STRIPE
BLUE W/BLACK STRIPE
BLUE W/YELLOW STRIPE
BLUE W/YELLOW STRIPE
M
REF FAN
MOTOR
OVERLOAD
PROTECTOR COMPRESSOR
M
M
CONDENSER FAN
M
FRZ FAN MOTOR
GRAY W/WHITE STRIPE
GRAY W/WHITE STRIPE
DEFROST
TERMINATOR
REF (TOP)
DRAWER LIGHT
FRZ (BOTTOM)
DRAWER LIGHT
ICEMAKER
THERMAL
(OPTIONAL)
FUSE
TAN
#3758424 - Revision B - December, 2005
J2
P4
PIN 1
P3
MAIN BOARD
P1
P2
PIN 1
J6
J4
PIN 1
PIN 1
PIN 1
J3
J5
WHITE
RUNNING
CAPACITOR
(WHEN
USED)
COMPRESSOR
STARTING
RELAY
DEFROST HEATER
25 - 29 OHMS
DRAIN HEATER
1700 - 2100 OHMS
FILL TUBE HEATER
2800 - 3500 OHMS
ICEMAKER
VALVE
3757971 REV A
