Installation Considerations; Unit Leveling - Sub-Zero 700TC-3 Service Manual

Installation Information

INSTALLATION CONSIDERATIONS

This section covers some of the more common installation issues seen by a service technician. An improper instal-
lation, though not a valid service issue, has the potential to lead to a customer placing a call for service. Installation
related customer complaints could include, but are not limited to: Unit leveling, unit movement, door misalignment,
doors and drawers not sealing, internal frost or condensation, warm compartment temperatures, exterior condensa-
tion, etc.. .
NOTE: If additional installation information is needed, refer to the complete Installation Manual and/or installation
video, or contact the Sub-Zero Technical Assistance Department.
UNIT COULD TIP FORWARD UNDER CERTAIN LOAD CONDITIONS. FAILURE TO INSTALL ANTI-TIP COM-
PONENTS AND EXTEND LEVELERS TO THE FLOOR ACCORDING TO INSTALLATION MANUAL COULD
RESULT IN SERIOUS PERSONAL INJURY OR DEATH.

Unit Leveling

NOTE: The kickplate/grille must be removed before
leveling (See Figure 2-1). If the unit has already been
anchored to the cabinets, the side molding strips must
be removed and the anchor screws must be extracted
from the unit to cabinet brackets before leveling (See
Figure 2-2). These components must be reinstalled
after leveling.

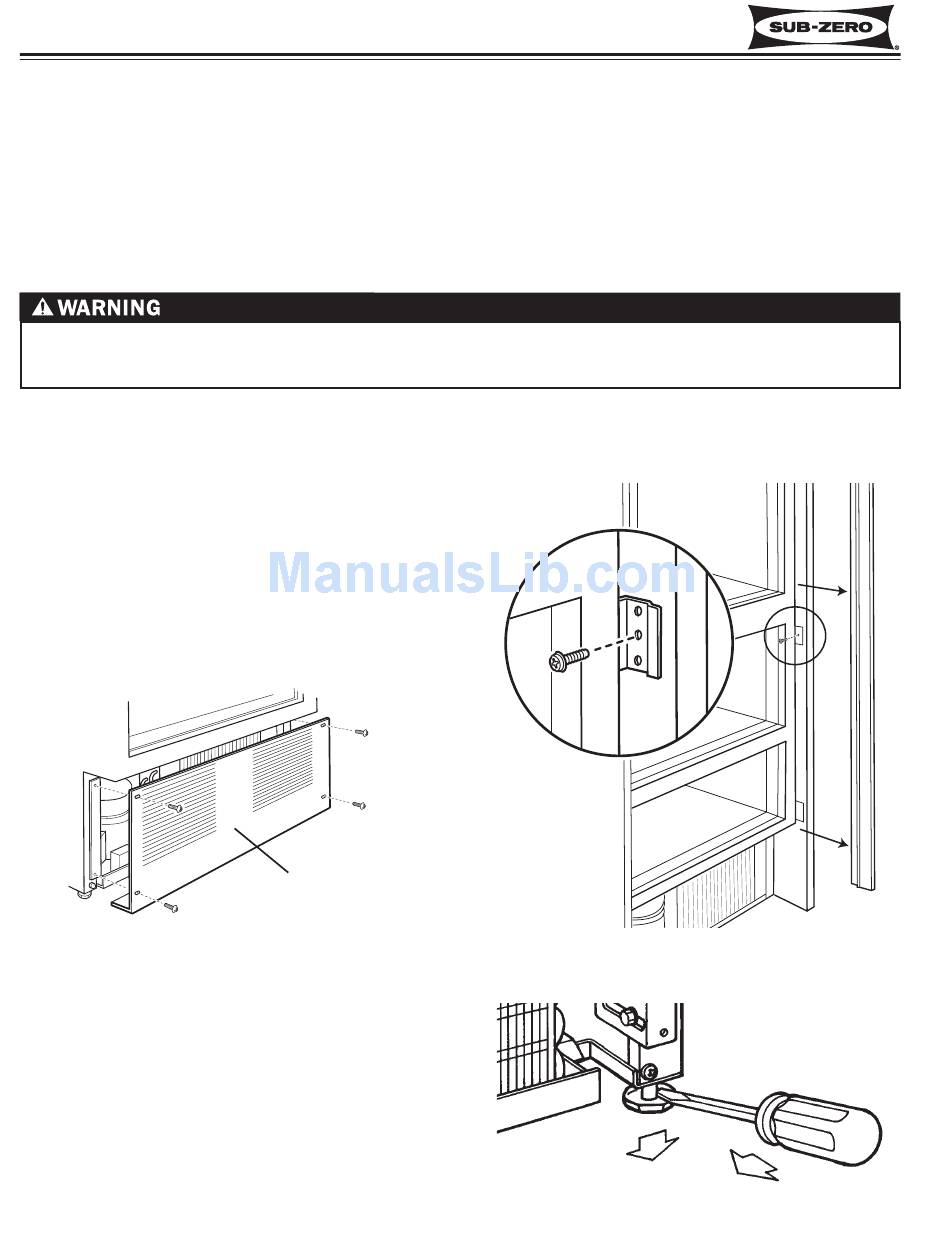

Figure 2-1. Kickplate/Grille Removal
To level the unit, turn the front leveling legs counter-
clockwise to raise the front or clockwise to lower it. To
assist in turning the front leveling legs up or down, use
a standard straight-blade screwdriver and place it in the
foot of the front leg, then rotate the leveler foot in the
desired direction (See Figure 2-3).
#3758412 - Revision B - December, 2006
Integrated
Integrated
Kickplate / Grille
2-2
3
3 Series
Series
(700- T ALL)
(700- T ALL)
Figure 2-2. Side Molding & Bracket
Figure 2-3. Adjusting Front Levelers
