EPSON Perfection V700 Photo
4.2.9

Removing TPU Lower Housing

1. Remove the TPU Unit. See Section 4.2.1 on page 39.
2. Slide the Document Cover toward the front and pull it out from the
four slots of the TPU Unit.
3. Release the TPU Carriage Lock.
Slots
Document Cover
TPU Lower Housing

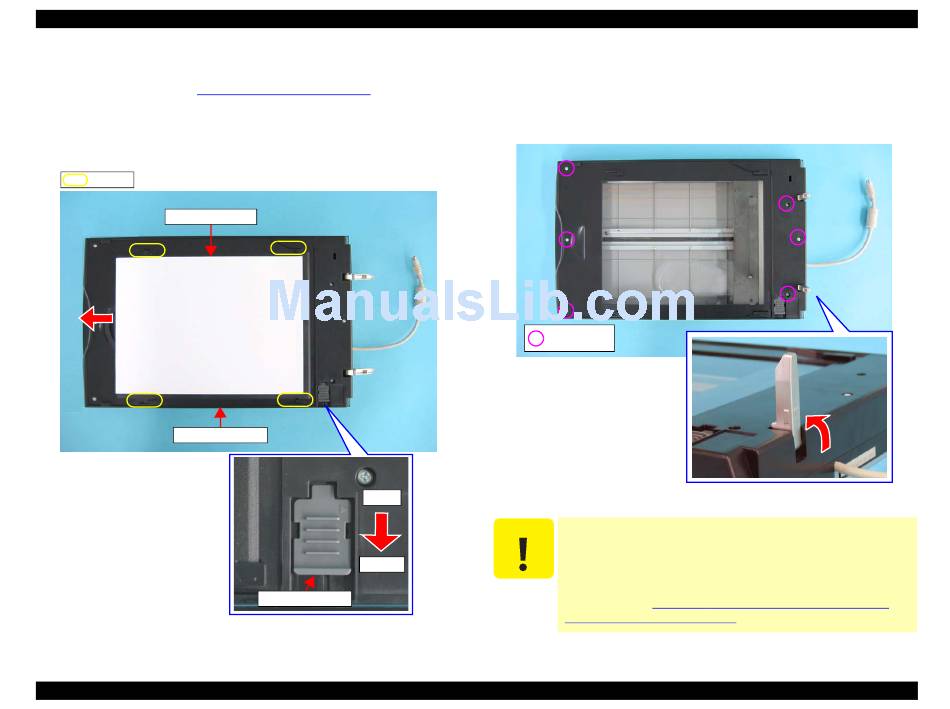

Figure 4-35. Releasing the TPU Carriage Lock
Disassembly / Assembly
Lock
Unlock
TPU Carriage Lock
Disassembly Procedure
4. Remove the six C.B.P. M3 x 12 screws that secure the TPU Lower
Housing.
5. Raise the hinges until they become upright.
6. Lift the TPU Lower Housing and remove it.
C.B.P. M3x12
(6±1 kgf.cm)
Figure 4-36. Removing the TPU Lower Housing
The TPU Lower Housing is not available alone but is included
C A U T I O N
in the TPU Case, ASP. When you need to replace the TPU
Lower Housing, you must replace the TPU Case with the TPU
Case, ASP and also replace the separately supplied four TPU
Dust-Resistant Sheets and other required parts. For more
details, refer to Chapter7 Exploded Diagram on page 84
Service Parts List on page
Revision A
and
89.
54
