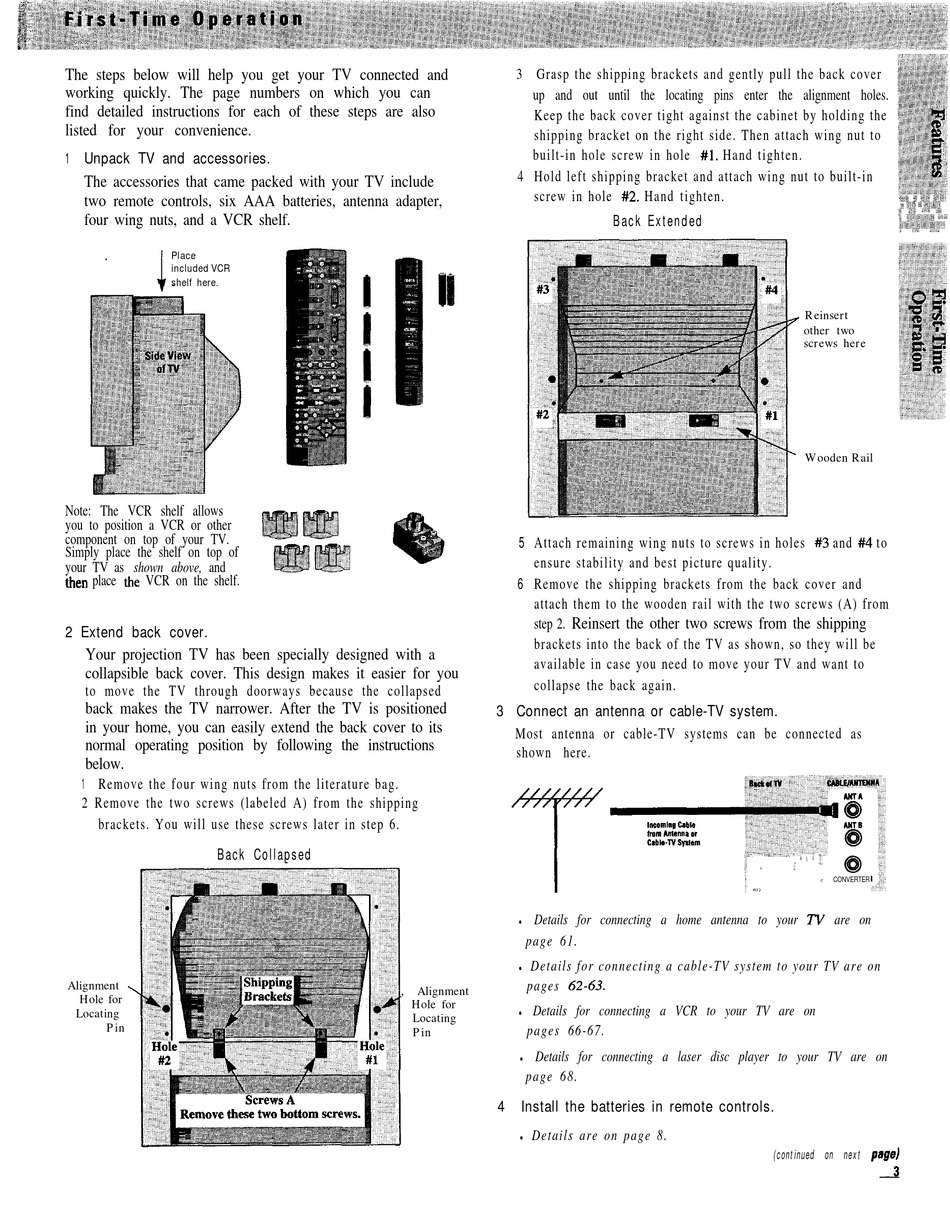

The steps below will help you get your TV connected and
working quickly. The page numbers on which you can
find detailed instructions for each of these steps are also
listed for your convenience.
1 Unpack TV and accessories.
The accessories that came packed with your TV include
two remote controls, six AAA batteries, antenna adapter,
four wing nuts, and a VCR shelf.
Place
included VCR
shelf here.
Note: The VCR shelf allows
you to position a VCR or other
component on top of your TV.
Simply place the shelf on top of
your TV as shown above, and
2 Extend back cover.
Your projection TV has been specially designed with a
collapsible back cover. This design makes it easier for you
to move the TV through doorways because the collapsed
back makes the TV narrower. After the TV is positioned
in your home, you can easily extend the back cover to its
normal operating position by following the instructions
below.
1 Remove the four wing nuts from the literature bag.
2 Remove the two screws (labeled A) from the shipping
brackets. You will use these screws later in step 6.
Back Collapsed
Alignment
Hole for
Locating
Pin
3 Grasp the shipping brackets and gently pull the back cover
up and out until the locating pins enter the alignment holes.
Keep the back cover tight against the cabinet by holding the
shipping bracket on the right side. Then attach wing nut to
built-in hole screw in hole #l. Hand tighten.
4 Hold left shipping bracket and attach wing nut to built-in
screw in hole #2. Hand tighten.
5
Attach remaining wing nuts to screws in holes #3 and #I4 to
ensure stability and best picture quality.
6
Remove the shipping brackets from the back cover and
attach them to the wooden rail with the two screws (A) from
Reinsert the other two screws from the shipping
step 2.
brackets into the back of the TV as shown, so they will be
available in case you need to move your TV and want to
collapse the back again.
3 Connect an antenna or cable-TV system.
Most antenna or cable-TV systems can be connected as
shown here.
Details for connecting a home antenna to your TV are on
l
page 61.
Details for connecting a cable-TV system to your TV are on
l
pages 62-63.
,
Alignment
Hole for
Details for connecting a VCR to your TV are on
l
Locating
Pin
pages 66-67.
Details for connecting a laser disc player to your TV are on
l
page 68.
4
Install the batteries in remote controls.
Details are on page 8.
l
Back Extended
.
(continued on next page)
other two
screws here
Wooden Rail
CONVERTER
