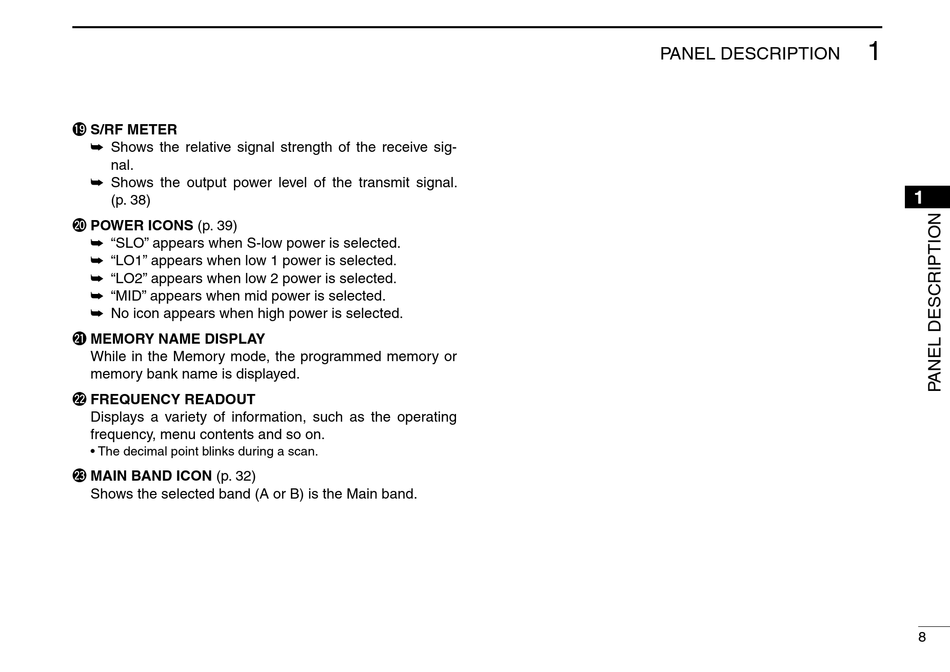

!9 S/RF METER
Shows the relative signal strength of the receive sig-
➥
nal.
Shows the output power level of the transmit signal.
➥
(p. 38)
@0 POWER ICONS (p. 39)
" SLO" appears when S-low power is selected.
➥
" LO1" appears when low 1 power is selected.
➥
" LO2" appears when low 2 power is selected.
➥
" MID" appears when mid power is selected.
➥
No icon appears when high power is selected.
➥
@1 MEMORY NAME DISPLAY
While in the Memory mode, the programmed memory or
memory bank name is displayed.
@2 FREqUENCY READOUT
Displays a variety of information, such as the operating
frequency, menu contents and so on.
• The decimal point blinks during a scan.
@3 MAIN BAND ICON (p. 32)
Shows the selected band (A or B) is the Main band.
