Panel Description; Front, Top And Side Panels - Icom ID-51A Basic Instructions

1

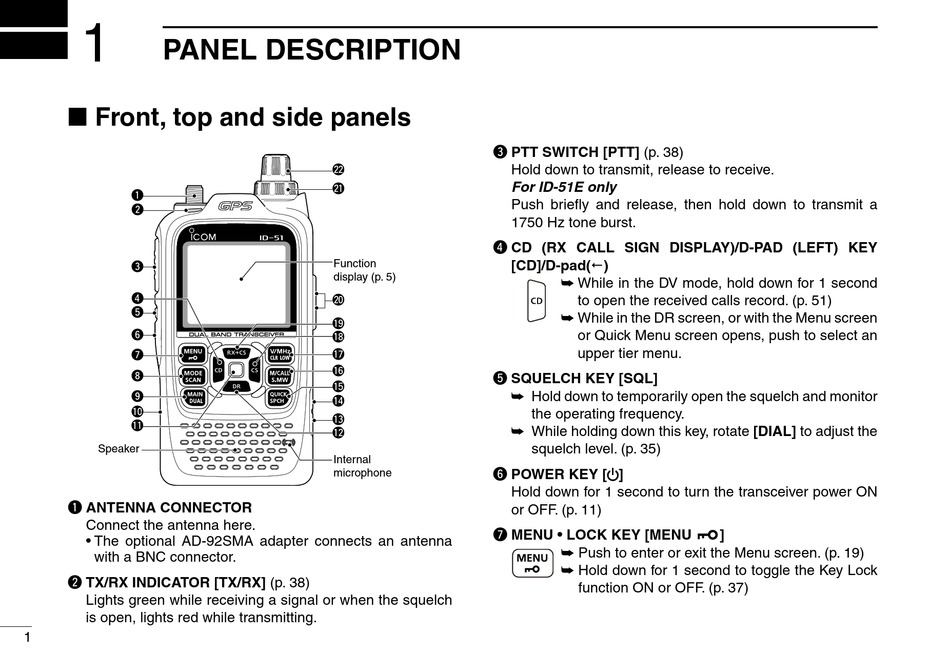

PANEL DESCRIPTION

■ Front, top and side panels

q
w
e
r
t
y
u
i
o
!0
!1
Speaker
q ANTENNA CONNECTOR
Connect the antenna here.
• The optional AD-92SMA adapter connects an antenna
with a BNC connector.
w TX/RX INDICATOR [TX/RX] (p. 38)
Lights green while receiving a signal or when the squelch
is open, lights red while transmitting.
1
e PTT SWITCH [PTT] (p. 38)
Hold down to transmit, release to receive.
@2
For ID-51E only
@1
Push briefly and release, then hold down to transmit a
1750 Hz tone burst.
r CD (RX CALL SIGN DISPLAY)/D-PAD (LEFT) KEY
Function [CD]/D-pad()
display (p. 5)
@0
!9
!8
!7
!6
t SQUELCH KEY [SQL]
!5
➥
!4
!3
➥
!2
Internal
y POWER KEY [ ]
microphone
Hold down for 1 second to turn the transceiver power ON
or OFF. (p. 11)
u MENU • LOCK KEY [MENU
➥ While in the DV mode, hold down for 1 second
to open the received calls record. (p. 51)
➥ While in the DR screen, or with the Menu screen
or Quick Menu screen opens, push to select an
upper tier menu.
Hold down to temporarily open the squelch and monitor
the operating frequency.
While holding down this key, rotate
squelch level. (p. 35)
➥ Push to enter or exit the Menu screen. (p. 19)
➥ Hold down for 1 second to toggle the Key Lock
function ON or OFF. (p. 37)
[DIAL] to adjust the
]
