Icom ID-51A Basic Instructions page 83

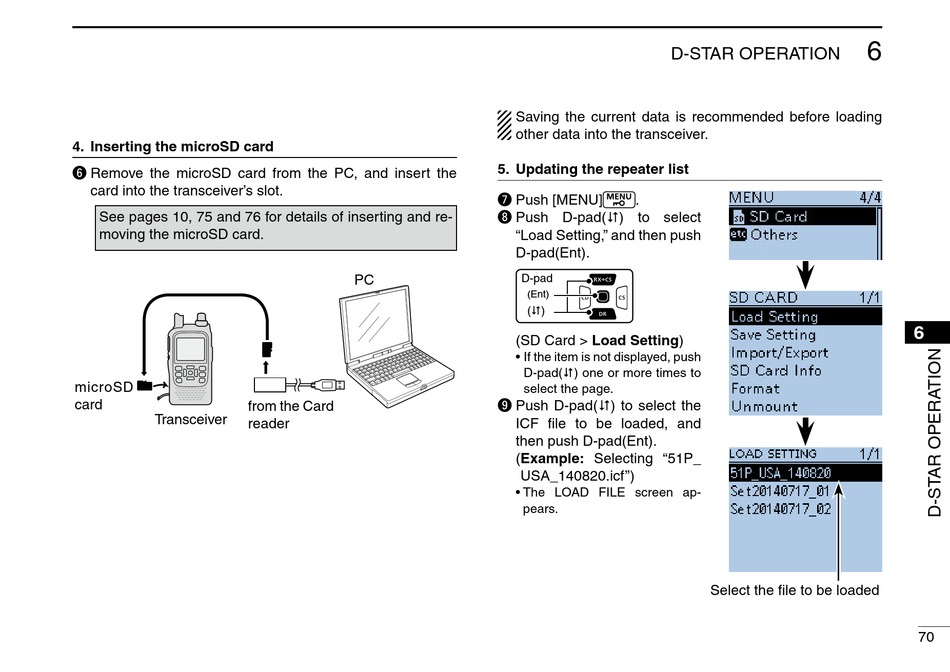

4. Inserting the microSD card
y Remove the microSD card from the PC, and insert the
card into the transceiver's slot.
See pages 10, 75 and 76 for details of inserting and re-
moving the microSD card.
microSD
card
from the Card
Transceiver
reader
Saving the current data is recommended before loading
other data into the transceiver.
5. Updating the repeater list
u Push [MENU]
i Push D-pad() to select
"Load Setting," and then push
D-pad(Ent).
PC D-pad
(Ent)
(�)
( SD Card > Load Setting)
• If the item is not displayed, push
D-pad() one or more times to
select the page.
o Push D-pad() to select the
ICF file to be loaded, and
then push D-pad(Ent).
( Example: Selecting "51P_
USA_140820.icf")
• The LOAD FILE screen ap-
pears.
D-STAR OPERATION
.
Select the file to be loaded
6
6
70
