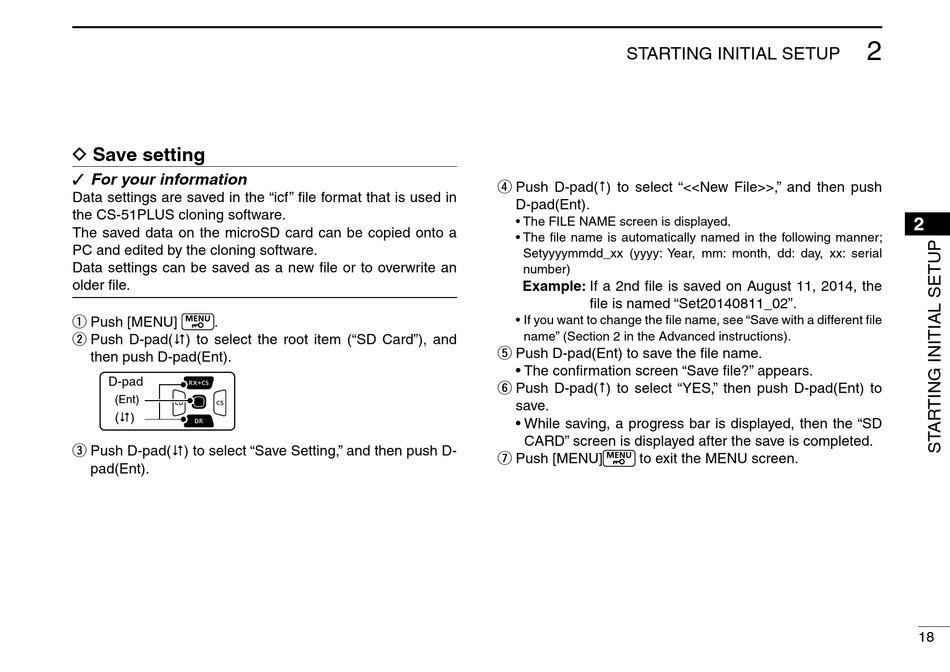

Icom ID-51A Basic Instructions page 31

D Save setting
For your information
✓
Data settings are saved in the "icf" file format that is used in
the CS-51PLUS cloning software.
The saved data on the microSD card can be copied onto a
PC and edited by the cloning software.
Data settings can be saved as a new file or to overwrite an
older file.
Push [MENU] .
q
Push D-pad( ) to select the root item ("SD Card"), and
w
then push D-pad(Ent).
D-pad
(Ent)
(�)
Push D-pad( ) to select "Save Setting," and then push D-
e
pad(Ent).
STARTING INITIAL SETUP
Push D-pad( ) to select "<<New File>>," and then push
r
D-pad(Ent).
• The FILE NAME screen is displayed.
• The file name is automatically named in the following manner;
Setyyyymmdd_xx (yyyy: Year, mm: month, dd: day, xx: serial
number)
Example: If a 2nd file is saved on August 11, 2014, the
file is named "Set20140811_02".
• If you want to change the file name, see "Save with a different file
name" (Section 2 in the Advanced instructions).
Push D-pad(Ent) to save the file name.
t
• The confirmation screen "Save file?" appears.
Push D-pad( ) to select "YES," then push D-pad(Ent) to
y
save.
• While saving, a progress bar is displayed, then the "SD
CARD" screen is displayed after the save is completed.
Push [MENU] to exit the MENU screen.
u
