Contact Heart Rate Grips - CYBEX Pro+ Owner's Service Manual

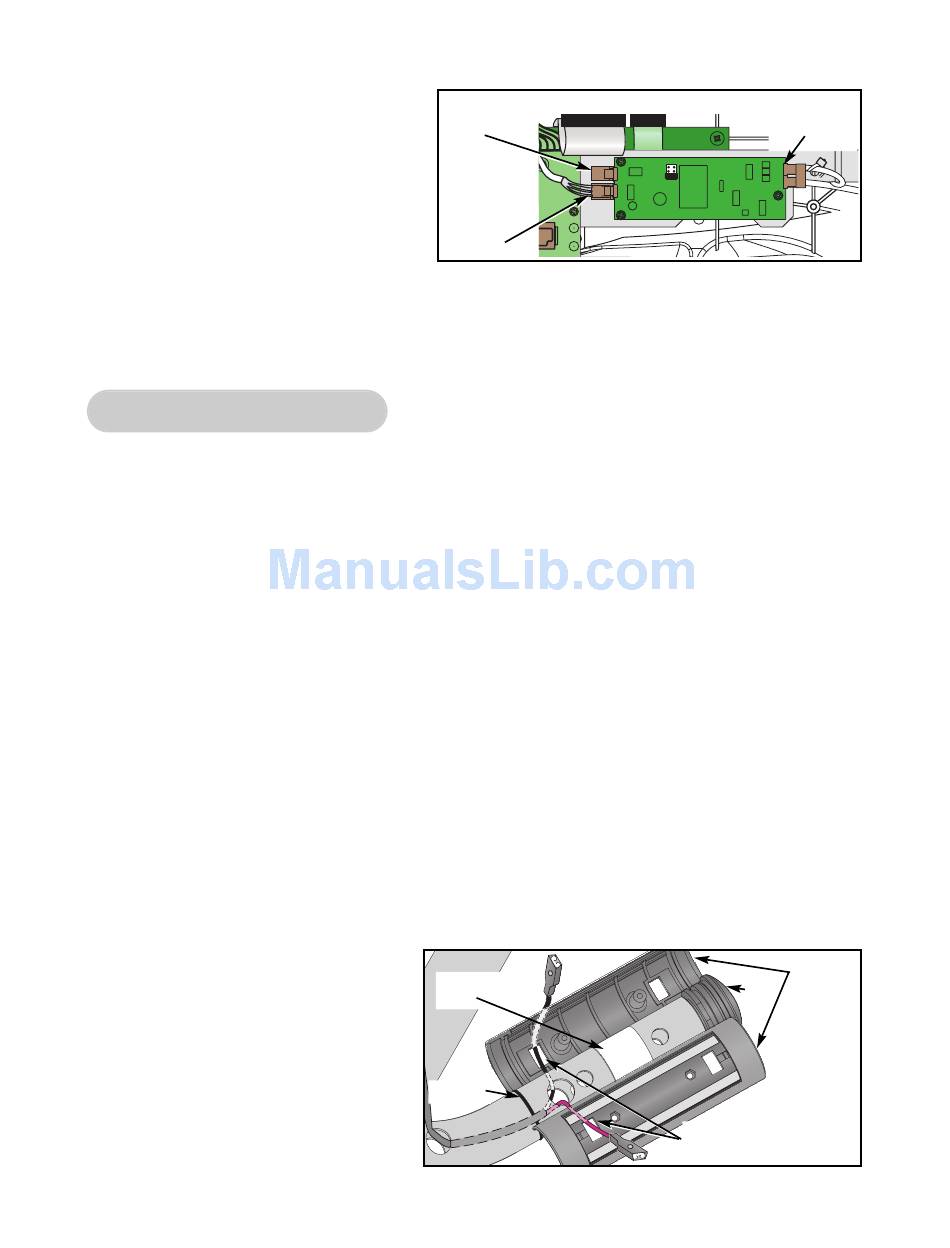

4. Attach the new heart rate board.
A. Locate the side of the heart rate
board with the two holes and
place the molex placeholder over
the top three pins. See Figure 25.
B. Place the heart rate board in
position with the two holes to the
left and, using a Phillips head
screwdriver, attach the heart rate
board with the three screws removed in step 3A.
NOTE: If you are replacing the grips and cable follow steps 5 to 8. If not skip to step 9.

Contact Heart Rate Grips

Tools Required
• Knife or small flathead screwdriver
• Needle nose pliers
• Wire cutters
5. Remove the old heart rate grips and cable.
A. Using a knife or flathead screwdriver, pry up the four metal contacts from the two grips.
NOTE: The metal contacts are taped on securely and prying them up will destroy them.
B. Using a needle nose pliers, carefully disconnect the wire from each metal contact.
C. Using a Phillips head screwdriver, remove the two bolts and two nuts from each grip.
D. Pull the plastic housing and cap off each handrail (the housing is secured with
double-sided tape). See Figure 26.
E. Gently push each connector out of the rectangular hole in the plastic housing. See
Figure 26.
F. Remove any remaining double-sided tape from each handrail.
G. Remove the old o-ring from
each handrail. See Figure 26.
H. Using wire cutters, cut the four
wire ties that hold the heart rate
cable to the handrail.
I. Pull the old heart rate cable out
of the handrail.
Service
Page 7-32
Cybex Pro+ Treadmill Owner's & Service Manual
Molex
Placeholder
(Top)
Heart Rate
to Display
Board
Connector
(Bottom)
Figure 25
Double-sided
Tape
O-Ring
Figure 26
Double
Connector
(Right)
Plastic
Housing
Cap
Wire Through
Rectangular Hole
