2) Disconnect the connector [1], and then remove the harness from the three
wire saddles [2].
3) Remove the resin ring [3], and then remove the registration clutch [4].
[1]

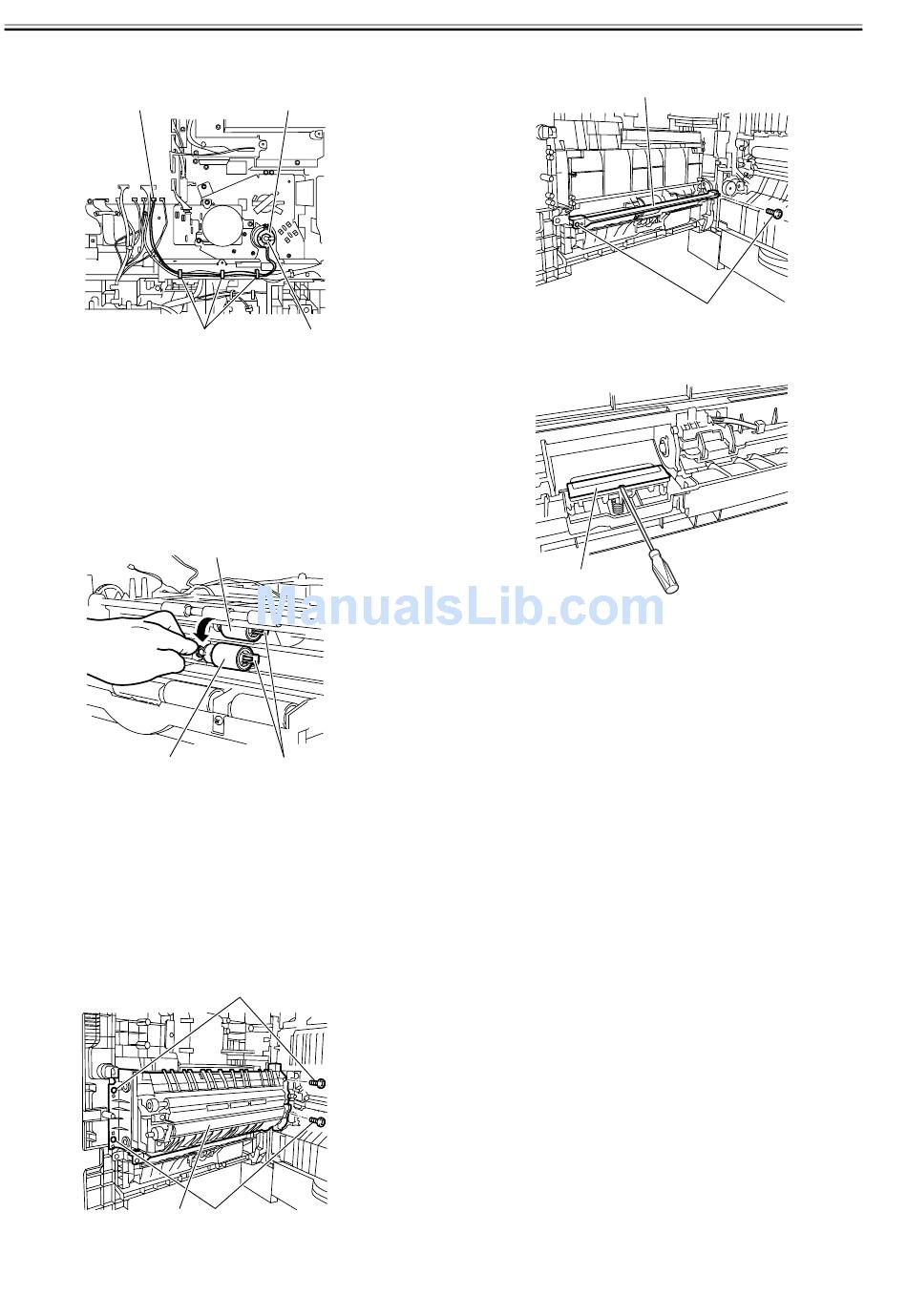

7.5.13 Separation Roller

7.5.13.1 Removing the Feed and Separation Rollers

iR2022i / iR2025 / iR2030 / iR2018 / iR2022 / iR2018i
1) Remove the cassette.
2) Open the lower-left cover.
3) Lower the separation roller [1] as shown below, and then remove the sep-
aration roller [1] and feed roller [3] by holding the claws [2] of the roller
collars.
[1]

7.5.14 Separation Pad

7.5.14.1 Removing the Separation Pad

iR2022i / iR2025 / iR2030 / iR2018 / iR2022 / iR2018i
1) Open the front cover.
2) Turn the developer pressure release lever clockwise, and then open the left
door.
3) Draw out the drum unit.
4) Remove the transfer registration unit [1].
- Screw [2], 4 pcs.
[1]
7-16
[4]
[2] [3]
F-7-42
[3]
[2]
F-7-43
[2]
[2]
F-7-44
5) Remove the feed guide [1].
- Screw [2], 2 pcs.
6) Remove the multi-paper roller.
7) I use a minus screwdriver and remove separation pad [1].
0017-8583
0017-8584
[1]
[2]
F-7-45
[1]
F-7-46
