Pcba Housing Removal - Lexmark MS81x Service Manual

8
Remove the media feeder.

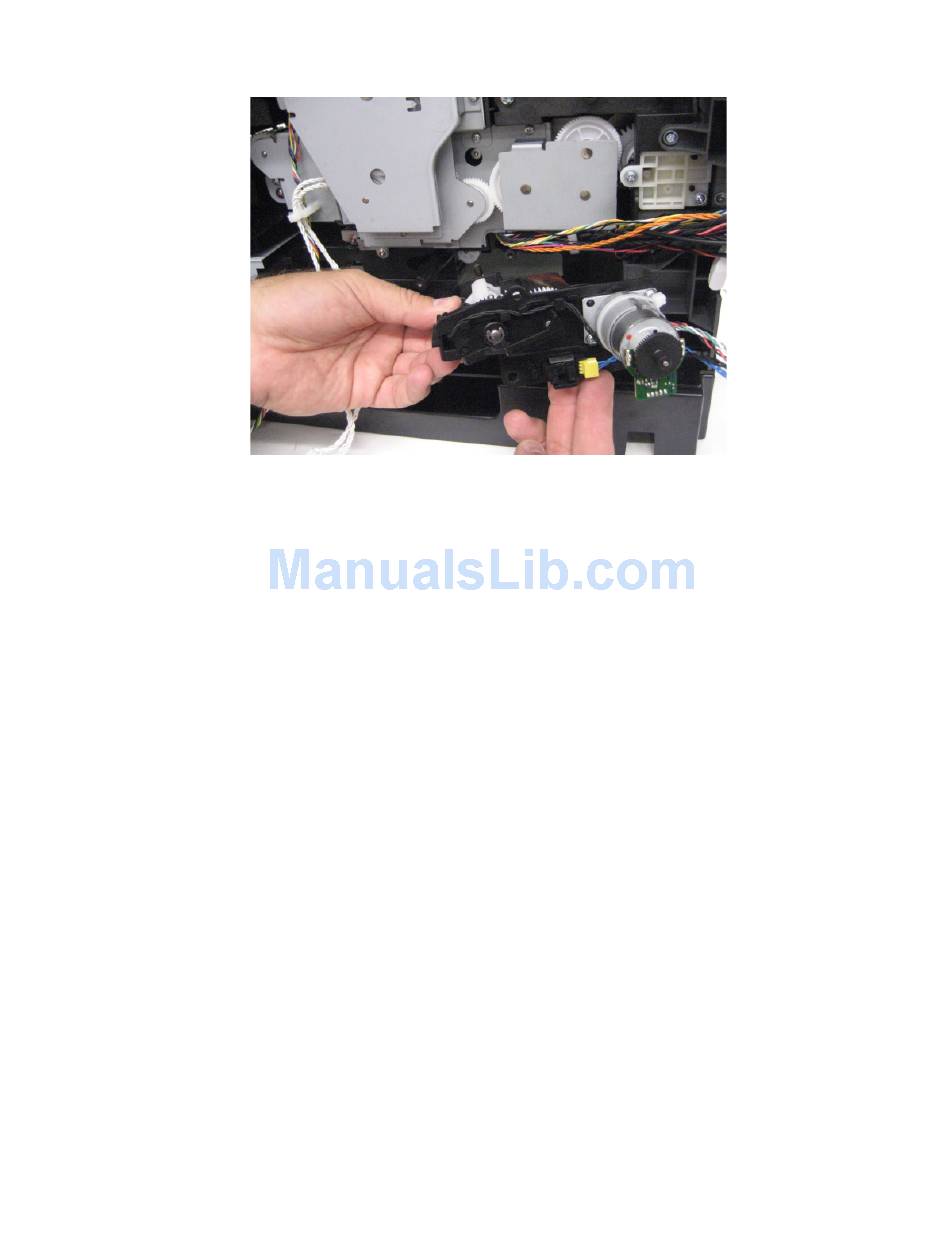

PCBA housing removal

Note: When removing the PCBA housing, the controller board will remain attached to the PCBA housing.
1
Remove the right cover. See
2
Remove the rear lower cover. See
3
Remove the LVPS. See
4
Remove the left cover. See
5
Disconnect all of the cables from the controller board.
"Right cover removal" on page
"Rear lower cover removal" on page
"LVPS removal" on page
"Left cover removal" on page
Repair information
283.
280.
366.
277.
357
