CDM-625 Advanced Satellite Modem
Front Panel Operation

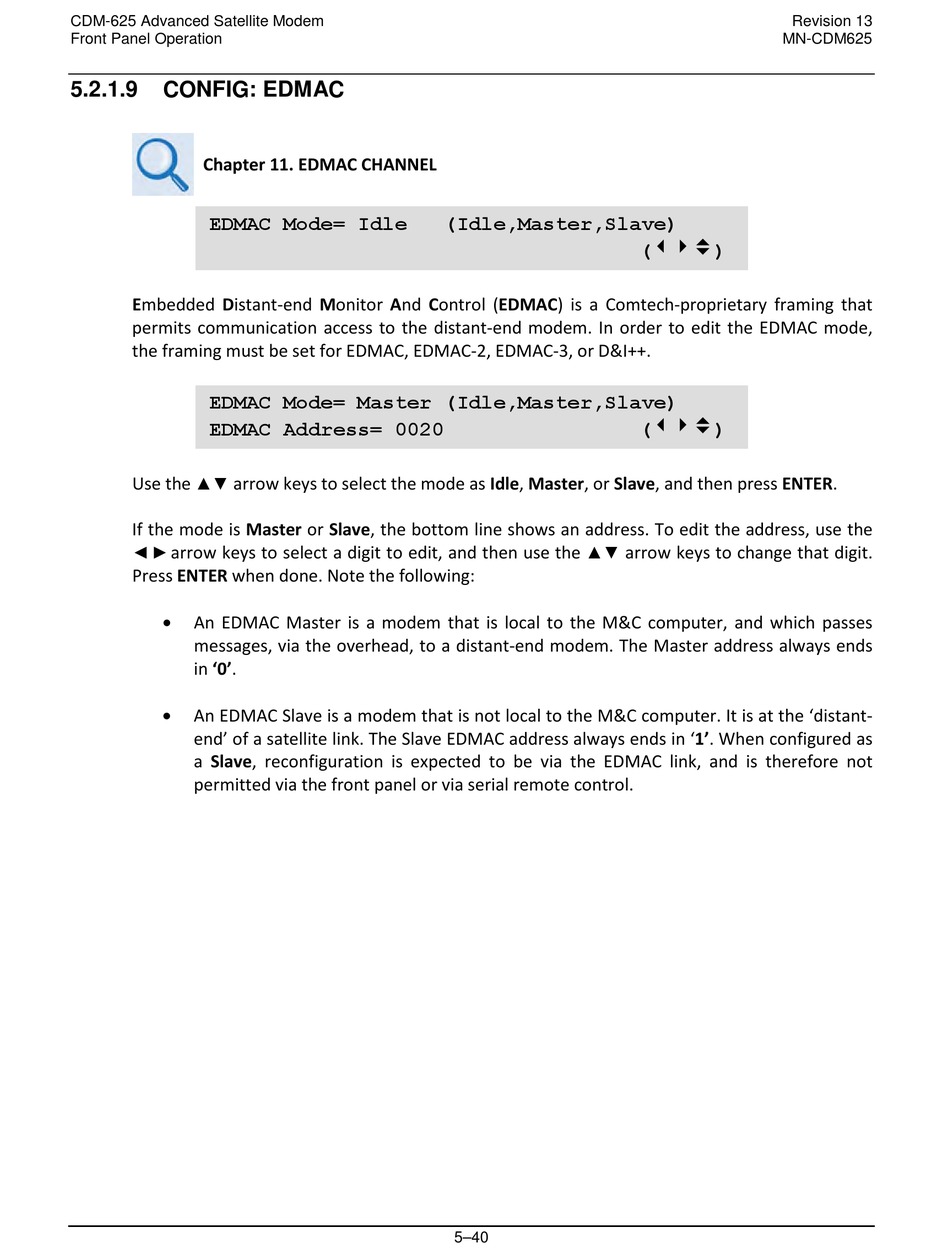

5.2.1.9
CONFIG: EDMAC
Chapter 11. EDMAC CHANNEL
EDMAC Mode= Idle
Embedded Distant-end Monitor And Control (EDMAC) is a Comtech-proprietary framing that
permits communication access to the distant-end modem. In order to edit the EDMAC mode,
the framing must be set for EDMAC, EDMAC-2, EDMAC-3, or D&I++.
EDMAC Mode= Master (Idle,Master,Slave)
EDMAC Address= 0020
Use the
arrow keys to select the mode as Idle, Master, or Slave, and then press ENTER.
▲▼
If the mode is Master or Slave, the bottom line shows an address. To edit the address, use the
◄ ►
arrow keys to select a digit to edit, and then use the
Press ENTER when done. Note the following:
•
An EDMAC Master is a modem that is local to the M&C computer, and which passes
messages, via the overhead, to a distant-end modem. The Master address always ends
in '0'.
•
An EDMAC Slave is a modem that is not local to the M&C computer. It is at the 'distant-
end' of a satellite link. The Slave EDMAC address always ends in '1'. When configured as
a Slave, reconfiguration is expected to be via the EDMAC link, and is therefore not
permitted via the front panel or via serial remote control.
(Idle,Master,Slave)
▲▼
5–40
Revision 13
MN-CDM625
()
()
arrow keys to change that digit.
