Standard 100V/240V Alternating Current (AC) Power Interface

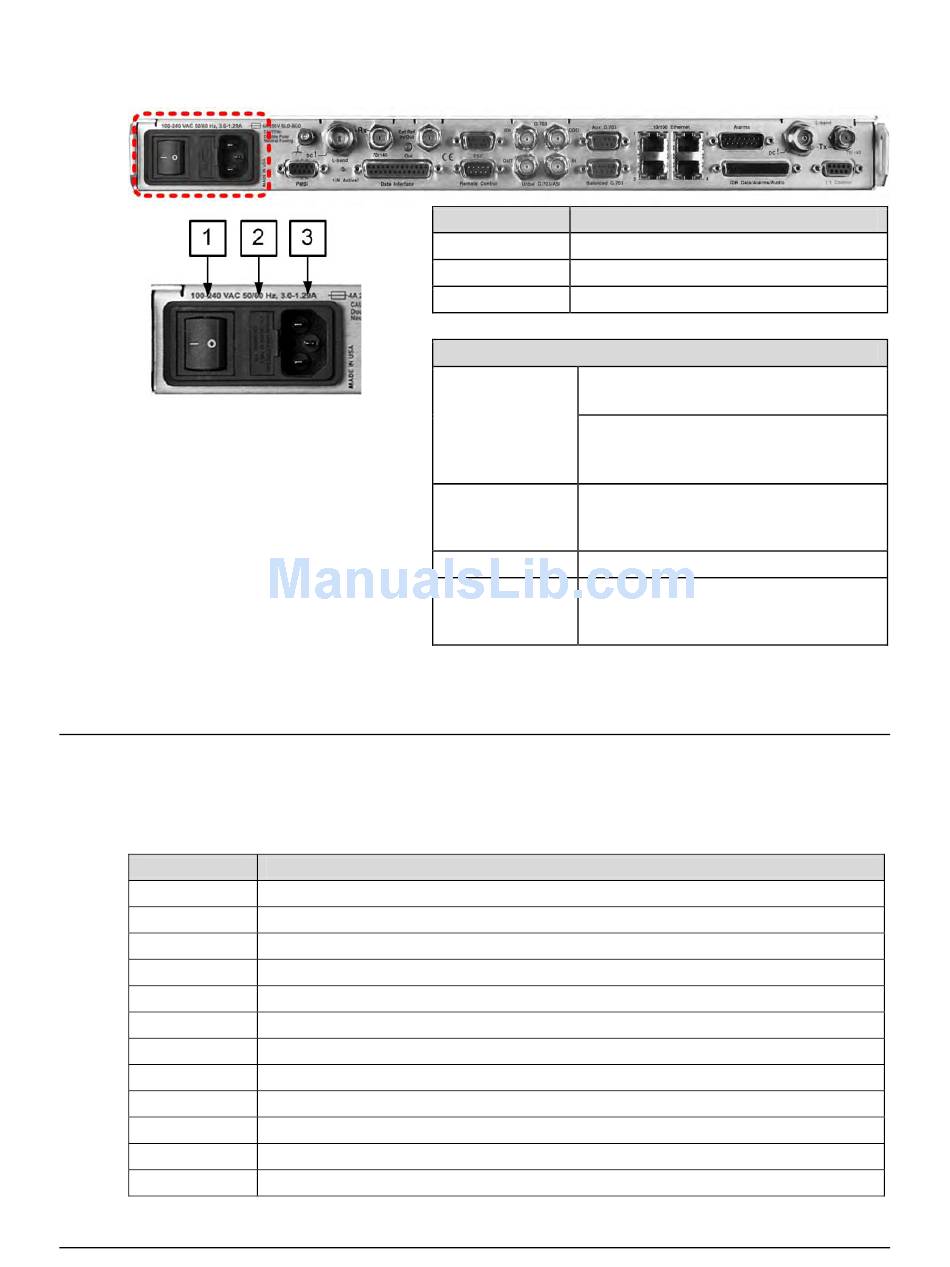

Figure 3-7. CDM-625 Standard AC Chassis (CEFD P/N PL/12587-1)

3.3.2.1 AC Operation – CDM-625 Accessories
Contact your Comtech EF Data sales representative during normal business hours to purchase
any of these available accessories:
CEFD P/N
KT-0020703
KT-0000226
KT-0000283
KT-0020701
PS-0000075
PS-0000065
CA/17725
CA/90025-5FT
KT/11633-1
CA/17850
PP-0000097
PP-0020556
Input Power
Input Voltage
Connection Type
Fuse Protection
Description
AC to 24V DC Conversion Kit
AC to 48V DC Conversion Kit
AC Primary Power Supply: 100-240 VAC (65W Power Supply) w/required cables
AC Primary Power Supply: 100-240 VAC (175W Power Supply) w/required cables
AC 65W Power Supply
AC 175W Power Supply
AC Power Cord, Standard (IEC-60320 Type C13) – USA
AC Power Jumper Cord, Standard (IEC-60320 Type C13)
AC Power Cord Retainer Kit (for any AC Cord)
AC Power Cord – European / French
AC Power Cord – Japanese
AC Power Cord – India
Feature Description
1
On / Off Switch
2 Press-fit Fuse Holder
3 IEC-60320 Type C14 Three-prong Connector
AC Power Specifications
48 watts (typical with TPC/LDPC Codec and
CnC module installed), 68 watts (max)
280 watts (typical TPC/LDPC Codec, CnC
module and 48 volt BUC supply installed),
300 watts (max)
100V to 240V AC, +6%/-10%, autosensing
(total absolute max. range is 90V to 264V
AC)
IEC-60320 Type C13/C14
Line and neutral fusing
(2X) 5mm x 20mm Slow-blow type fuses:
T4A ( 250V AC operation)
