Configuration | D&I (Drop and Insert)
For D&I configuration information: Chapter 5. FRONT PANEL OPERATION
For D&I functionality overview: Chapter 9. CLOCK MODES
INSERT (D&I).

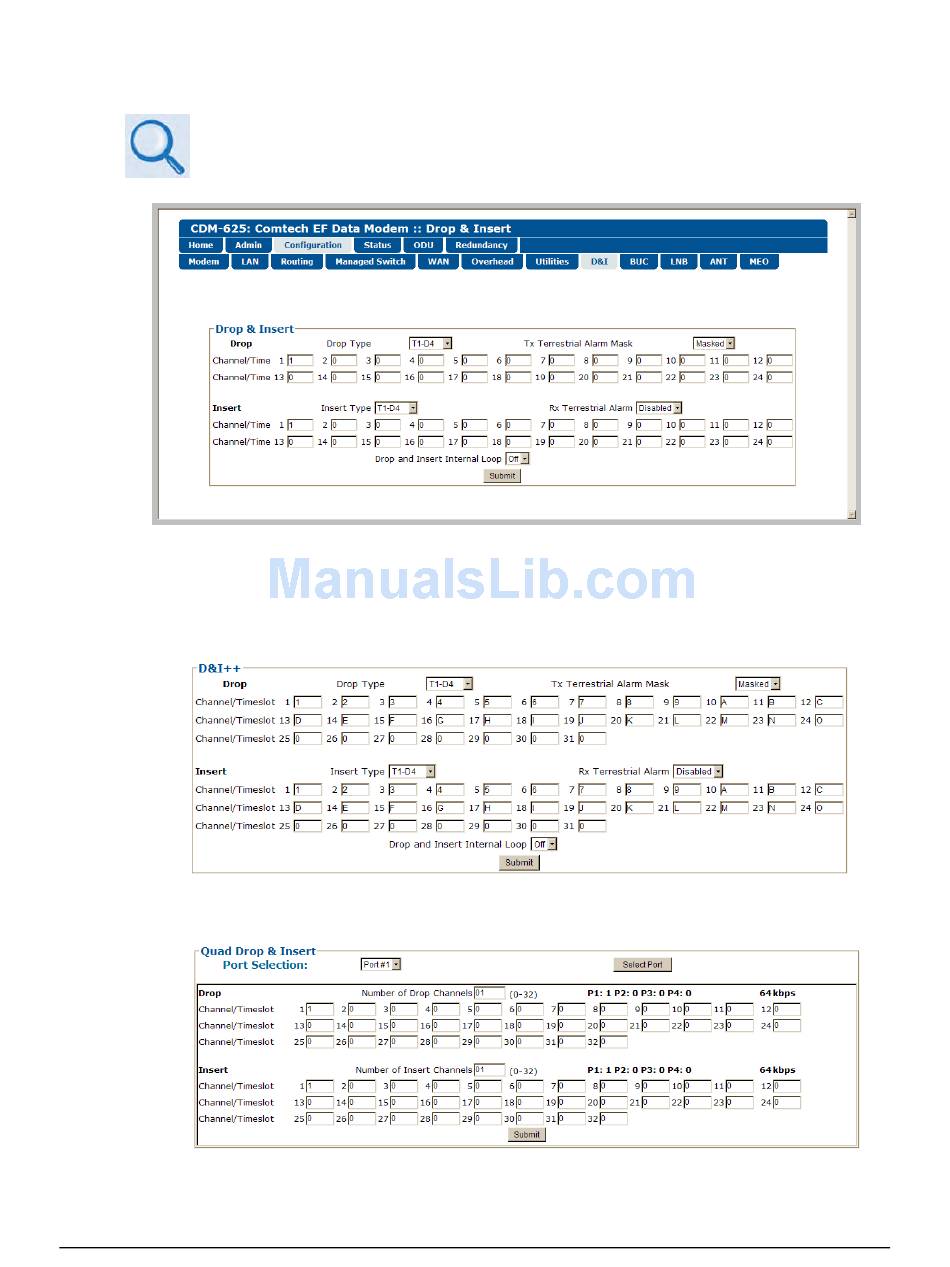

Figure 6-27. Configuration | D&I page (Selected Framing Mode = D&I)
The appearance of this page is dependent on the framing mode selected on the 'Configuration |
Modem' page (Sect. 6.5.4.3.1). If the selected framing mode is D&I++, the section heading and
the available parameters adjust accordingly:
If the selected framing mode is Quad Drop & Insert, the section heading and the available
parameters adjust accordingly:
Click [Submit] to save these settings.
