CDM-625 Advanced Satellite Modem

Ethernet Network Configuration

Multicast Routing Mode

Multicast Routing Mode, available when the optional IP Packet Processor is installed and

enabled, is where communications is established via one single source (referred to as the

Multicast Sender) and routed to many groups of destination nodes (referred to as Multicast

Receivers). Typical multicast applications include multimedia conferencing, online training,

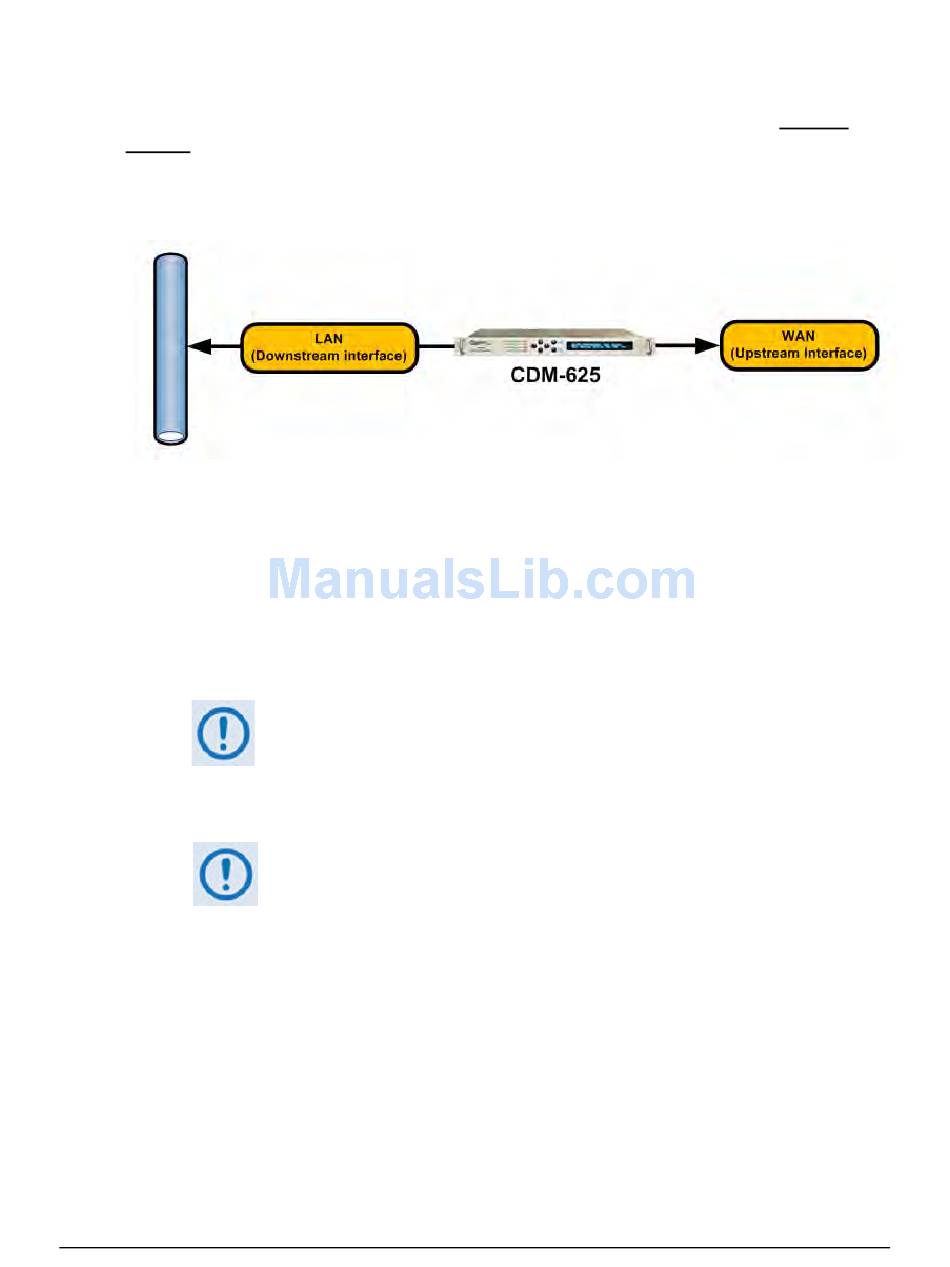

news, etc. Figure 16-11 depicts the schematic for a Multicast Routing Network.

As shown, there are two key components to this configuration – the LAN Downstream

Interface, and the WAN Upstream Interface. Observe the following:

LAN Downstream Interface – the LAN Downstream Interface is the interface to which

multicast packets arriving at the upstream interface are forwarded if a multicast group

has at least one listener.

WAN Upstream Interface – the WAN Upstream Interface is where all multicast packets

are forwarded to the uplink interface if the multicast routing exists in the Routing table.

The CDM-625 LAN interfaces are configured as Downstream Interface and

the IGMP server is enabled by default.

The CDM-625 WAN interface is configured as Upstream Interface by
