Ground-Start Button - AT&T MERLIN LEGEND Release 3.0 Installation Manual

Testing the System
Testing the Power Failure Transfer Jacks
To test a power failure transfer (PFT) jack for proper operation, the outside line
numbers to the module's line/trunk jacks must be assigned and the trunks
must be operational. A PFT telephone on a GS line must have a GS button
attached to the telephone. See Figure 7–1.

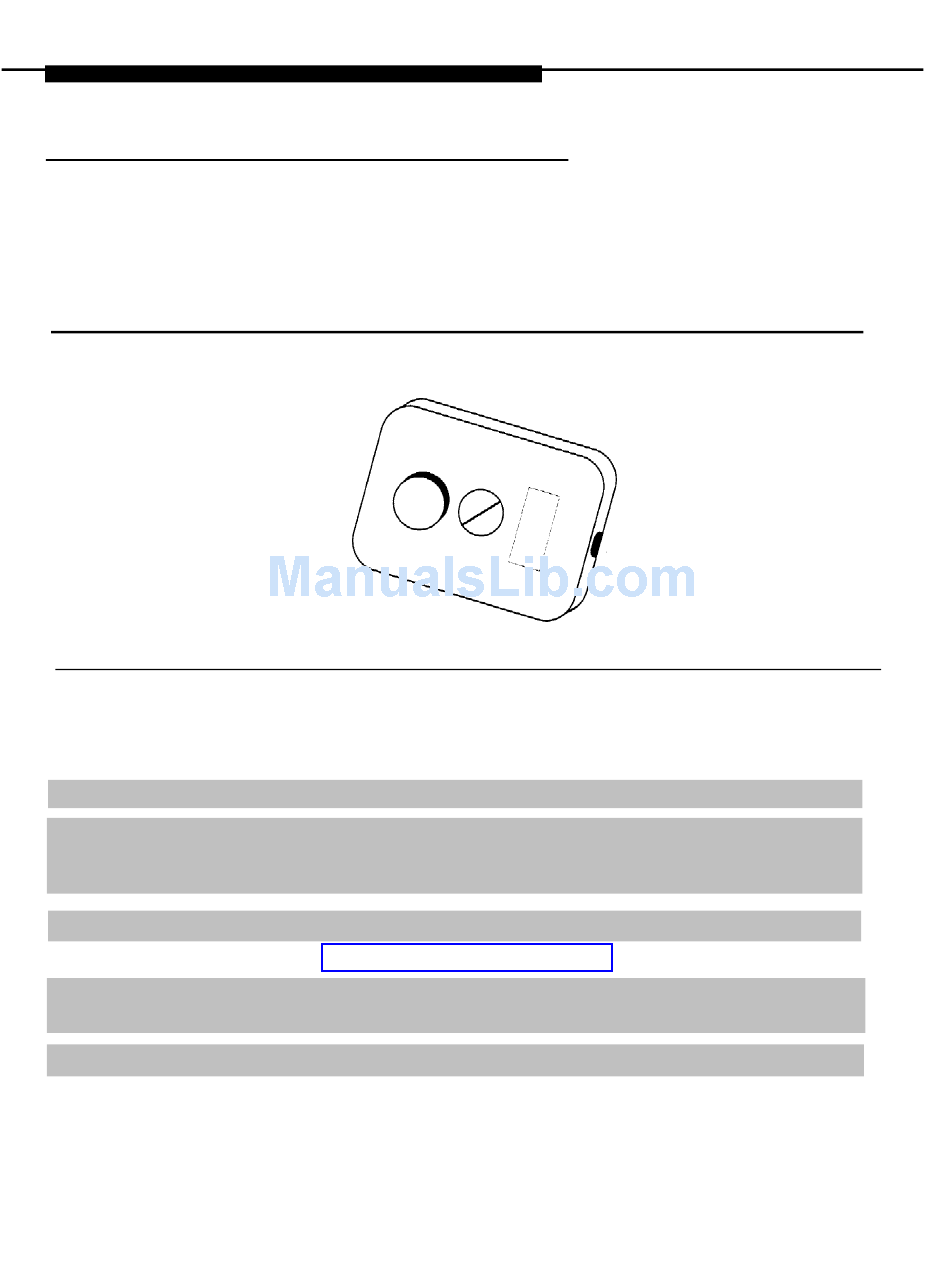

Figure 7–1. Ground-Start Button
To test PFT jacks, follow the steps below:
Plug a touch-tone or rotary dial telephone into a PFT jack.
1
Note the outside line number assigned to the lowest line/trunk jack on
2
the module and be sure that the outside trunk is connected to the
system.
Turn off power to the control unit.
3
Follow the procedure in "Powering Down the System" in Chapter 9.
4 If the telephone is connected to a GS trunk, push the GS button attached
to the telephone.
5 Pick up the handset on the touch-tone or rotary dial telephone.
You should hear a dial tone.
7-18 Initializing and Testing the System
