4.1.3 Lubrication

The lubrication used for the components of Stylus Photo R200/R210 has been decided
on based on evaluation carried out by Epson. As a result, the specified amount of
lubricant should be applied in the places specified when carrying out repair and
maintenance work.
o
When wiping off the grease during the cleaning
o
If necessary when performing assembly/disassembly of the printer
n
Never use oil or grease other than those specified in this manual.
Use of different types of oil or grease may damage the
components or affect the printer functions.
n
Never apply a larger amount of oil or grease than specified in this
manual.
Table 4-1. Oil Applied to Stylus Photo R300/R310
Type Name
G-26
Grease G-46
G-63
n
When using G-64, it is recommended to use a flux dispenser
(1049533) together.
MAINTENANCE
EPSON Code Supplier
1080614
1039172 EPSON
1218320
Overview
o

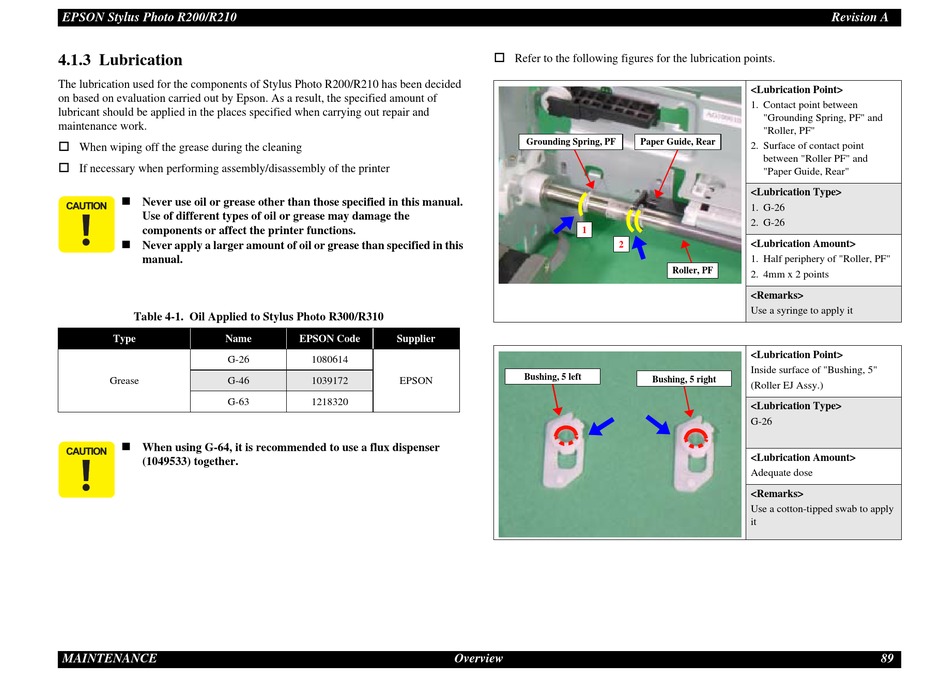

Refer to the following figures for the lubrication points.
Grounding Spring, PF Paper Guide, Rear
1
2
Roller, PF
Bushing, 5 left
Bushing, 5 right
Revision A
<Lubrication Point>
1. Contact point between
"Grounding Spring, PF" and
"Roller, PF"
2. Surface of contact point
between "Roller PF" and
"Paper Guide, Rear"
<Lubrication Type>
1. G-26
2. G-26
<Lubrication Amount>
1. Half periphery of "Roller, PF"
2. 4mm x 2 points
<Remarks>
Use a syringe to apply it
<Lubrication Point>
Inside surface of "Bushing, 5"
(Roller EJ Assy.)
<Lubrication Type>
G-26
<Lubrication Amount>
Adequate dose
<Remarks>
Use a cotton-tipped swab to apply
it
