NAC-3310, NAC-3350, and NAC-3390
1
Hard drive bay 1
2
Hard drive bay 2
3
CD-ROM/DVD drive
Figure 1-21
1
2
3
4
5
6
Cisco NAC Appliance Hardware Installation Guide
1-22

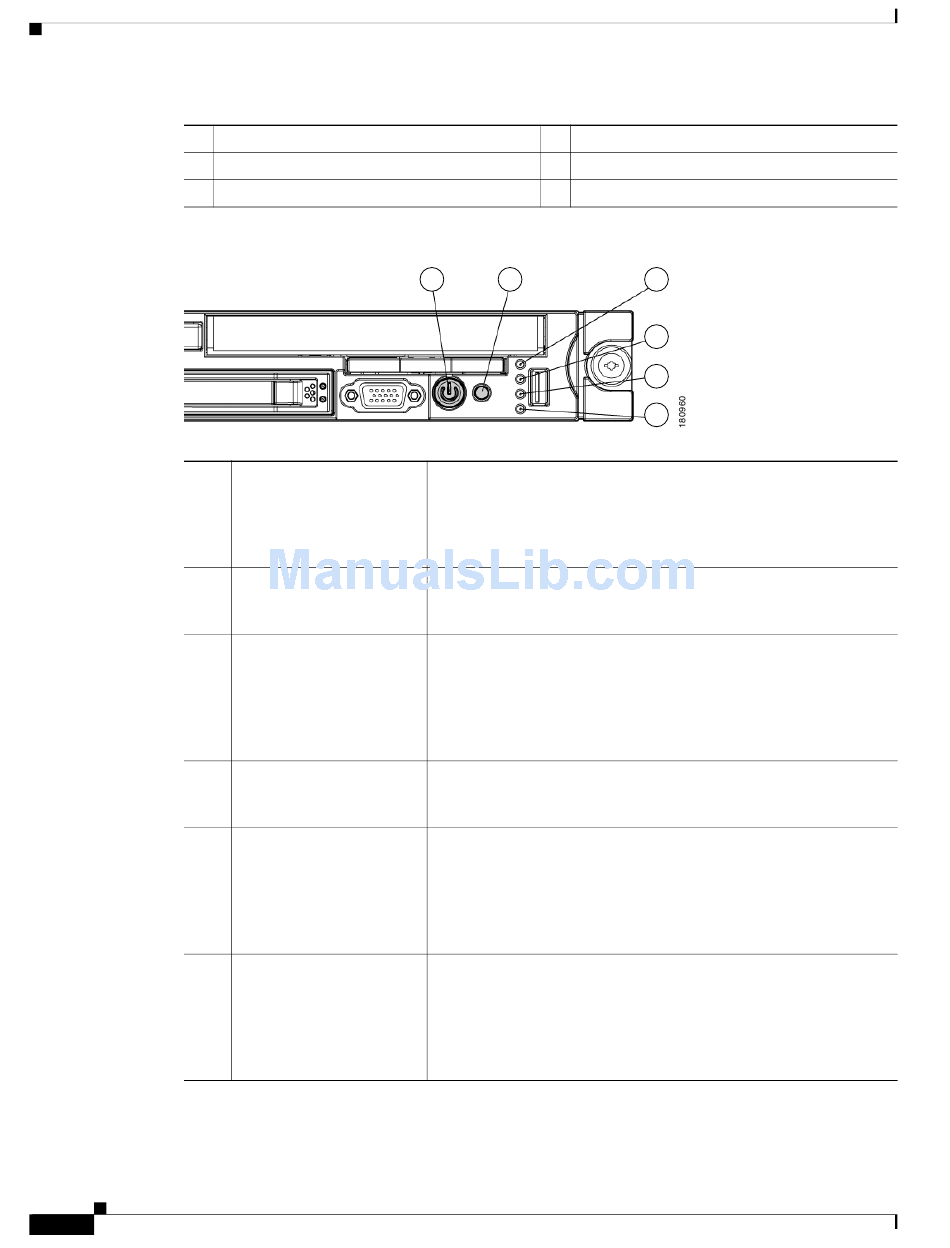

Cisco NAC-3350 Front Panel LEDs/Buttons
Power On/Standby button
and system power LED
UID button/LED
Internal health LED
External health LED
(power supply)
NIC 1 (eth0) link/activity
LED
NIC 2 (eth1) link/activity
LED
Chapter 1
4
Video connector
5
HP Systems Insight Display
6
USB connector
1 2
Green = System is on
Amber = System is shut down, but power is still applied
Off = Power cord is not attached, power supply failure has
occurred, no power supplies are installed; facility power is not
available, or disconnected power button cable
Blue = Identification is activated
Flashing blue = System is being managed remotely
Off = Identification is deactivated
Green = System health is normal
Amber = System health is degraded. (To identify the component in
a degraded state, refer to "HP Systems Insight Display and LEDs.")
Red = System health is critical. (To identify the component in a
critical state, refer to "HP Systems Insight Display and LEDs.")
Off = System health is normal when in standby mode
Green = Power supply health is normal
Amber = Power redundancy failure occurred
Off = Power supply health is normal when in standby mode
Green = Network link exists
Flashing green = Network link and activity exist
Off = No link to network exists
If power is off, the front panel LED is not active. For status, view
the rear panel LED for the RJ-45 connector
page 1-23).
Green = Network link exists
Flashing green = Network link and activity exist
Off = No link to network exists
If power is off, the front panel LED is not active. For status, view
the rear panel LED for the RJ-45 connector
page 1-23).
Cisco NAC Appliance Hardware Platforms
3
4
5
6
(Figure 1-23 on
(Figure 1-23 on
OL-20326-01
