Chapter 4 Configuring High Availability (HA)
Figure 4-3
CAS

Installing a Clean Access Manager High Availability Pair

This section describes how to set up a pair of Clean Access Manager machines for high-availability. By
deploying Clean Access Managers in high-availability mode, you can ensure that important monitoring,
authentication, and reporting tasks continue in the event of an unexpected shutdown. Topics include:
•
•
•
•
•
•
•
•
Note You must use identical appliances (e.g. NAC-3350 and NAC-3350 or NAC-3315 and NAC-3315) in
order to configure High Availability (HA) pairs of Clean Access Managers (CAMs) or Clean Access
Servers (CASs).
OL-20326-01

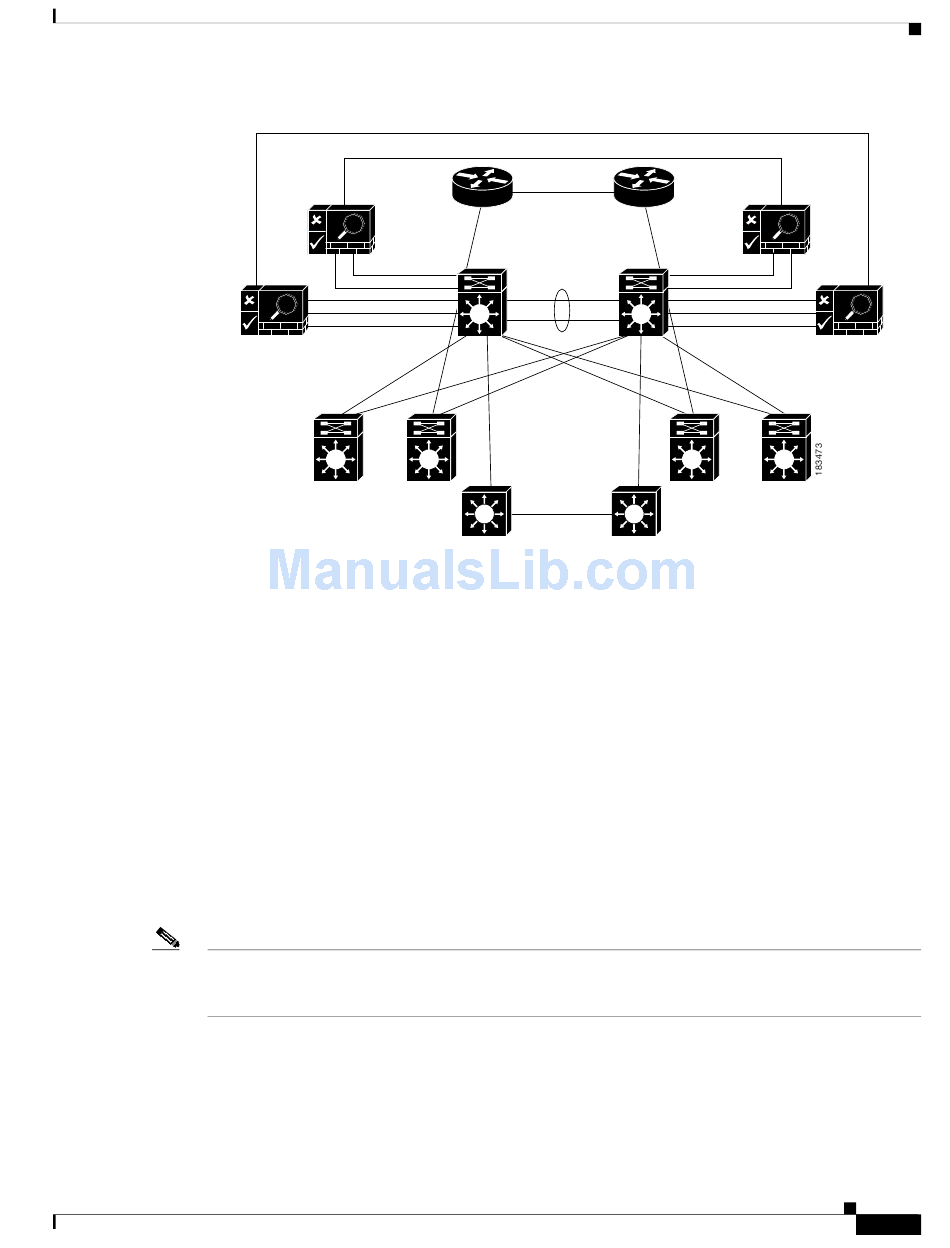

Adding HA CAS to Network
