Programming Memory/Bank/Scan Name; Usable Characters - Icom IC-T70A Instruction Manual

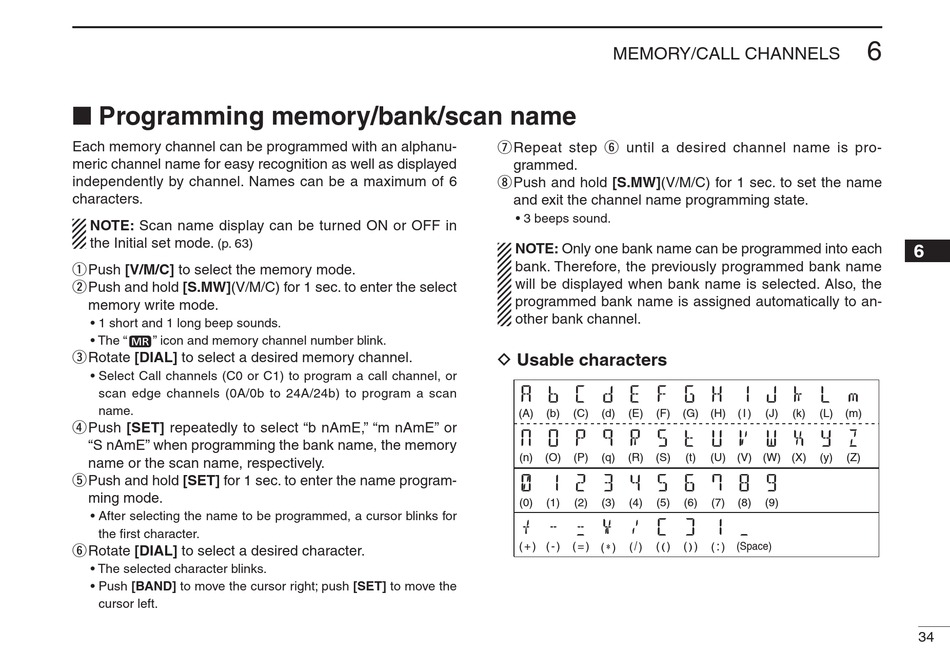

■ Programming memory/bank/scan name

Each memory channel can be programmed with an alphanu-
meric channel name for easy recognition as well as displayed
independently by channel. Names can be a maximum of 6
characters.
NOTE: Scan name display can be turned ON or OFF in
the Initial set mode.
(p. 63)
q Push [V/M/C] to select the memory mode.
w Push and hold [S.MW](V/M/C) for 1 sec. to enter the select
memory write mode.
• 1 short and 1 long beep sounds.
• The " " icon and memory channel number blink.
e Rotate [DIAL] to select a desired memory channel.
• Select Call channels (C0 or C1) to program a call channel, or
scan edge channels (0A/0b to 24A/24b) to program a scan
name.
r Push [SET] repeatedly to select "b nAmE," "m nAmE" or
"S nAmE" when programming the bank name, the memory
name or the scan name, respectively.
t Push and hold [SET] for 1 sec. to enter the name program-
ming mode.
• After selecting the name to be programmed, a cursor blinks for
the first character.
y Rotate [DIAL] to select a desired character.
• The selected character blinks.
• Push [BAND] to move the cursor right; push [SET] to move the
cursor left.
MEMORY/CALL CHANNELS
u Repeat step y until a desired channel name is pro-
grammed.
i Push and hold [S.MW](V/M/C) for 1 sec. to set the name
and exit the channel name programming state.
• 3 beeps sound.
NOTE: Only one bank name can be programmed into each
bank. Therefore, the previously programmed bank name
will be displayed when bank name is selected. Also, the
programmed bank name is assigned automatically to an-
other bank channel.
D Usable characters
(A) (b) (C) (d) (E) (F)
(n) (O) (P) (q) (R) (S)
(0) (1) (2) (3) (4) (5)
∗
( + ) ( - ) ( = ) / ( )
( ) ( )
(
(G) (H) ( I ) (J) (k) (L) (m)
(t) (U) (V) (W) (X) (y) (Z)
(6) (7) (8) (9)
( ) : (Space)
( )
)
